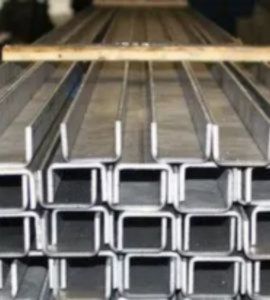

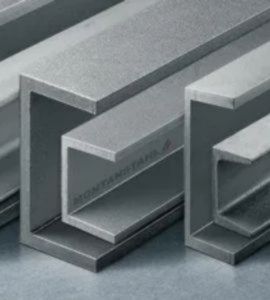

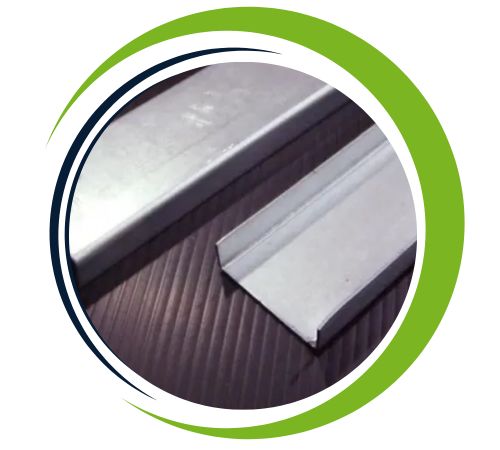

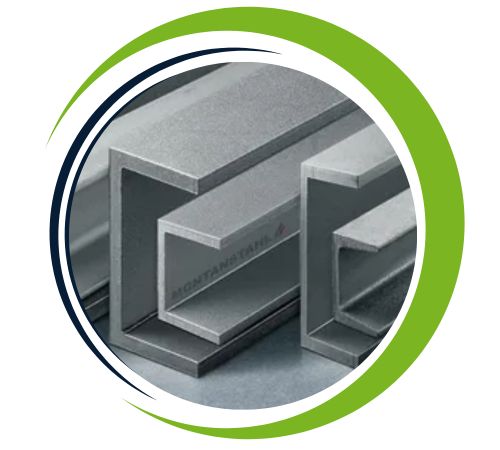

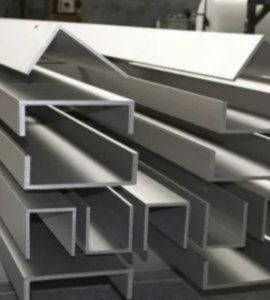

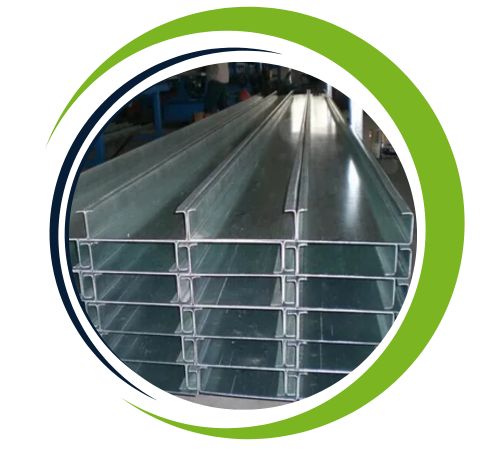

Khush Sheets and Plates is a renowned producer and supplier of high-quality Alloy Steel 20 Channels in Kolkata, India. Our organization is renowned for providing quality products and reliable services. We provide precision-tested Alloy 20 Channels perfect for applications where the environment is highly corrosive. Our channels are famous due to their high resistance to sulfuric acid, high mechanical properties, and better fabricability. At Khush Sheets and Plates, we make sure every product is up to international standards by maintaining stringent quality control and state-of-the-art manufacturing technology. Our Alloy 20 Channels cater to many industries such as chemical processing, pharmaceuticals, food, marine, and petrochemical industries.
Alloy Steel 20 Channel, or Carpenter 20, consists of about 35% nickel, 20% chromium, 2–3% molybdenum, and 3–4% copper with the rest as iron. It is stabilized with niobium for resisting intergranular corrosion. Alloy Steel 20 Channel has superior resistance to sulfuric acid and chloride-stress corrosion cracking. The mechanical characteristics have a tensile strength of about 620 MPa, yield strength of about 275 MPa, and good elongation and toughness. Alloy 20 can be welded, shaped, and retains its structural integrity under high pressure as well as corrosive conditions.
Specifications : ASTM B473, B464, B468 / ASME SB473, SB464, SB468

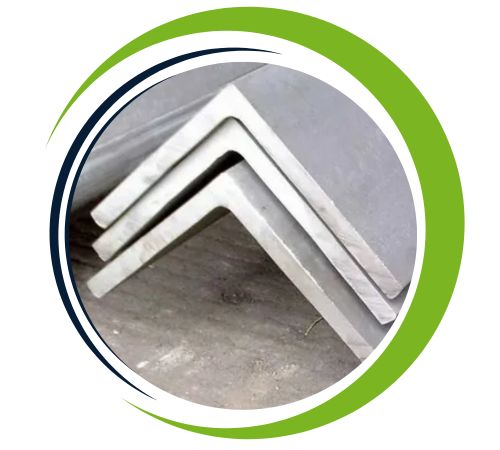

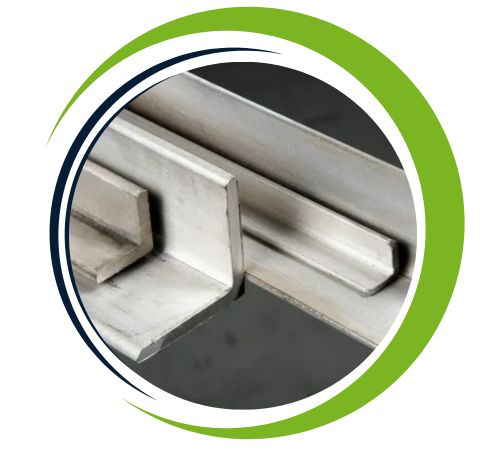

Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
| Grade | C | Mn | Si | S | P | Fe | Ni | Cr | Mo | Cu |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 0.045 max | 29.85 min | 32.00 – 38.00 | 19.00 – 21.00 | 2.00 – 3.00 | 3.00 – 4.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Alloy 20 Steel Channel to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Alloy Steel 20 Channels find wide application in industries needing superior corrosion resistance and strength. In the petrochemical and chemical industry, they are employed for acid-processing plant structural supports, tanks, and piping systems. Pharmaceutical and food processing industries appreciate Alloy 20 Channels for their non-reactive qualities and sanitary operating performance in equipment structures. Marine and offshore industries employ them in platforms and in structural uses exposed to seawater. Their pitting, crevice corrosion, and stress corrosion cracking resistance makes them suitable for use in heat exchangers, reactors, and pressure vessels. They are an economical substitute for higher-nickel alloys when operating in severe environments.
