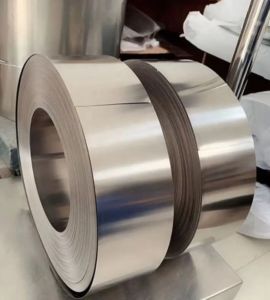

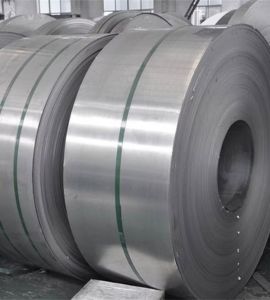

Khush Sheets and Plates is a leading producer and supplier of premium Alloy C263 Foil in Kolkata, India. Backed by a relentless pursuit of precision engineering and customer satisfaction, we serve the varied requirements of industries that demand heat- and corrosion-resistant materials. Our Alloy C263 Foils are made to stringent standards, providing superior mechanical strength and longevity in harsh environments. Supported by decades of industry experience and state–of-the-art manufacturing facilities, Khush Sheets and Plates is your go-to companion for dependable metal solutions, providing consistent quality and timely service in India and overseas markets.
Alloy C263 Foil is a nickel-based superalloy consisting mainly of nickel (Ni), cobalt (Co), chromium (Cr), molybdenum (Mo), titanium (Ti), aluminum (Al), and iron (Fe). It has about 50% Ni, 20% Co, 20% Cr, with Mo (6%), Ti (2%), and Al (0.5%) additions. It provides high-temperature strength, oxidation resistance, and age-hardening, and its mechanical properties consist of tensile strength of 930 MPa, yield strength of about 450 MPa, and high resistance to creep, making it suitable for service in areas experiencing extreme thermal and mechanical stress.
| Standard Specification : | AMS 5872 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Alloy C263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Material | Temp °C | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HRC |
|---|---|---|---|---|---|
| Alloy C263 Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.359 g/cm3 | 0.302 lb/in3 |
| Melting point | 1300-1335°C | 2372-2471°F |
Alloy C263 Foil has extensive applications in aerospace, gas turbine, and power generation sectors because of its superior performance in high-temperature environments. It is generally used in parts like combustion chambers, turbine blades, afterburners, and exhaust systems where strength, corrosion resistance, and thermal stability are extremely important. It is also used in the production of heat exchangers, pressure vessels, and chemical processing equipment. Its resistance to harsh environments also qualifies it for use in high-performance engines and energy systems, ensuring better fuel efficiency, lower emissions, and greater operation safety in advanced engineering applications.
