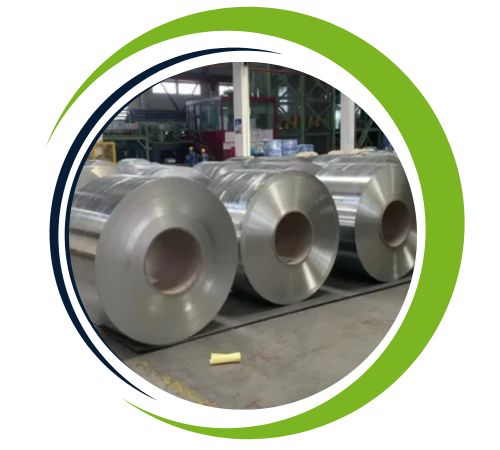

Khush Sheets and Plates is a top manufacturer and supplier of high-quality Aluminium 5005 Coils in Kolkata, India. We have expertise in supplying high-end aluminium coil solutions as per the requirements of a wide range of industries such as construction, automotive, electrical, and signage. Our Aluminium 5005 Coils are renowned for its high corrosion resistance, smooth surface finish, and ease of workability. Produced with high-grade raw materials and cutting-edge technology, we promise our products to be of international level. Customer satisfaction is our top priority at Khush Sheets and Plates, where we provide tailored solutions, timely delivery, and best prices for all aluminum coil needs.
Aluminium 5005 is a magnesium-containing aluminium alloy with about 0.8% magnesium, 0.2% iron, 0.1% copper, 0.3% silicon, and minor constituents of other elements. It is relatively good in corrosion resistance, especially in industrial and marine atmospheres. In a mechanical sense, Aluminium 5005 has tensile strength of 190–230 MPa, yield strength of approximately 110 MPa, and elongation of approximately 12–20%, based on temper. Aluminium 5005 is not heat treatable but can be responded to by cold working. The alloy has good anodizing characteristics, weldability, and average strength and is suitable for decorative and functional applications.
Standards : ASTM B209 / ASME SB209
Temper : O,H14,H16,H18,H19,H22,H24
Thickness : 0.1-4
Width : coil
Length : 100-1600
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Coil Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Coil
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Others Each | Others Total |
| 5005 | Bal | 0.30 max | 0.70 max | 0.20 max | 0.20 max | 0.10 max | 0.50 / 1.10 | 0.25 max | 0.05 max | 0.15 max |
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm (%) | |||
| 0.5 mm | 0.8 mm | 1.3 mm | 2.6mm | ||||
| 5005 | 0 | 95-145 | – | 18 | 20 | 21 | 22 |
| 5005 | H12 | 125-170 | 80 | 4 | 5 | 6 | 8 |
| 5005 | H14 | 145-185 | 100 | 3 | 3 | 5 | 6 |
| 5005 | H18 | 185 min | 165 | 1 | 2 | 3 | 3 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yes, we offer custom sizes for Aluminium 5005 Coils to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Aluminium 5005 Coils have widespread applications in various industries based on their corrosion resistance, formability, and superior finish after anodizing. These coils find application in the architectural industry for cladding, roofing, curtain walls, and facade. In the electrical industry, they find application in cable sheathing and appliance panels based on their conductivity and light weight. They are also used in signage, transportation parts, chemical and food equipment, and interior decorative parts. Due to the strength-to-weight ratio and weatherability of Aluminium 5005 Coils, they are used for both indoor and outdoor use where both durability and appearance play an important role.
