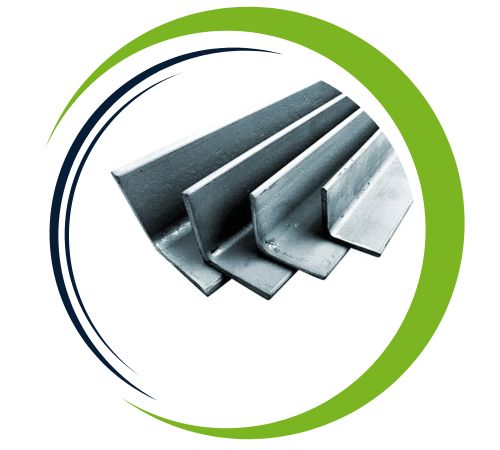

Aluminium 5083 Angle

Khush Sheets and Plates is a topmost producing and supplying unit of Aluminium 5083 Angles in Kolkata, India, renowned for producing high-grade aluminium products according to global specifications. Our Aluminium 5083 Angles are engineered for superior strength, resistance to corrosion, and durability in marine and industrial sectors. With a deep focus on precision engineering, timely delivery, and customer satisfaction, we serve several industries such as shipbuilding, transportation, and fabrication of structures. State-of-the-art infrastructure and strict quality control processes make Khush Sheets and Plates a reliable choice for Aluminium 5083 Angle supply in India.

Aluminium 5083 Angle Dealer in Kolkata, Aluminium 5083 Architectural Angles Supplier in Kolkata, Aluminium 5083 Angle in Kolkata, Aluminium 5083 Equal Leg Angle Size Chart, Aluminium 5083 Angle Price in India, Aluminium 5083 Angle Supplier in Kolkata, Aluminium 5083 Angle Stockist in India, Aluminium 5083 Unequal Leg Angles Exporter in India, Aluminium 5083 Angle Stockist in Kolkata, Aluminium 5083 Angle Supplier in India

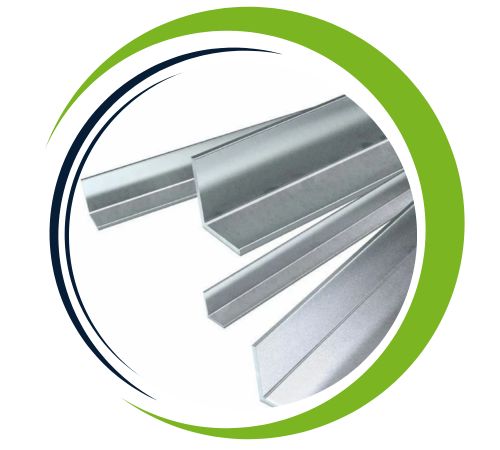

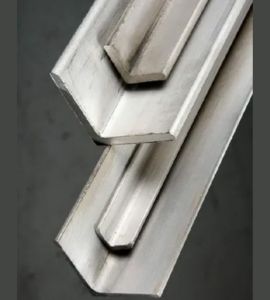

Aluminium 5083 Architectural Angles

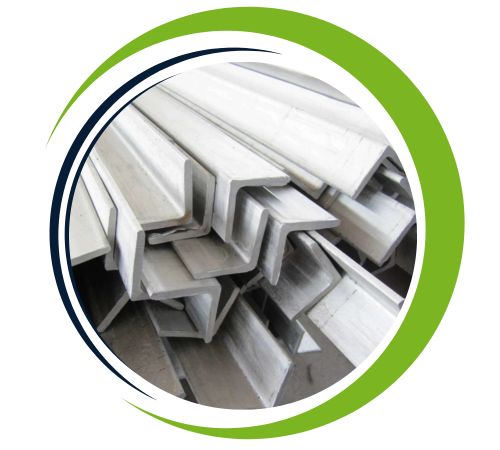

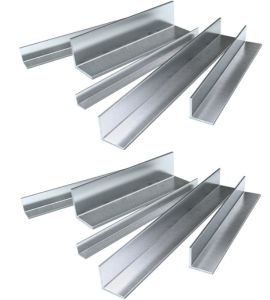

Aluminium 5083 Hot Rolled Angle

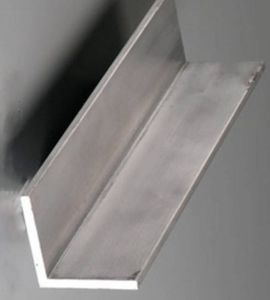

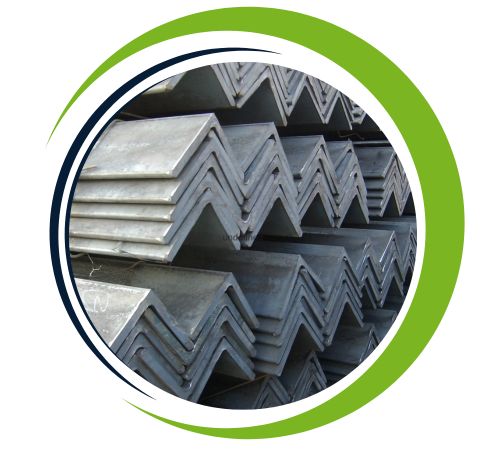

Aluminium 5083 Unequal Leg Angles

Aluminium 5083 Angles consist mainly of aluminum with appreciable levels of magnesium (4.0–4.9%), manganese (0.4–1.0%), and minor elements such as chromium and iron. The alloy is characterized by high corrosion resistance, particularly in sea water, as well as very good weldability. Typical mechanical properties involve a tensile strength of 275–350 MPa and yield strength of around 215 MPa. It also possesses excellent fatigue strength and impact strength, making it appropriate for use under heavy stress or severe environments. Its non-heat-treatability guarantees stability in welded constructions.

Aluminium 5083 Angle Specification

Standards : ASTM B221 / B211 ASME SB221 / SB211, EN573, EN485, AMS 4003, AMS 4102

Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H 116,H321

Standard : ASTM, ASME, AMS, GB/T, JIS

Thickness : 50 mm to 6000 mm Long

Size : 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm

Length : 1 To 6 Meters, Custom Cut Length

Finish : Mill, Customer specific finish

Surface : Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc

Aluminium 5083 Angles Chemical Composition

Al	Si	Fe	Cu	Mn	Cr	Mg	Ti	Zn	Other Each	Others Total
Bal	0.40 max	0.40 max	0.10 max	0.40 / 1.0	0.05 / 0.25	4.0 / 4.90	0.15 max	0.25 max	0.05 max	0.15 max

Aluminium 5083 Angles Mechanical Properties

Proof Stress	Tensile Strength	Hardness Brinell	Elongation
125 Min MPa	275 – 350 MPa	75 HB	12 Min %

Aluminium 5083 Angle Price in India, Aluminium 5083 Hot Rolled Angle Weight Chart, Aluminium 5083 Angle Bar Angle Supplier in Kolkata, Stockist of Aluminium 5083 Angle in India, Aluminium 5083 Angle Supplier in India, Aluminium 5083 HR Angles Price List in Kolkata, Aluminium 5083 Angle Supplier in India, Aluminium 5083 Hot Rolled Angle Exporter in Kolkata, Aluminium 5083 Angle Exporter in India, Aluminium 5083 HR Angles Exporter in Kolkata, Aluminium 5083 Angle in India

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium 5083 Angle Manufacturer and Exporter in Kolkata, India

Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium 5083 Angle Distributor in India, Aluminium 5083 Angle Supplier in Kolkata, Aluminium 5083 Angle Weight Chart, Aluminium 5083 Hot Rolled Angle Exporter in India, Aluminium 5083 Angle Manufacturer in Kolkata, Aluminium 5083 Angle Price List in Kolkata, Aluminium 5083 Angle Sizes in mm, Aluminium 5083 Hot Rolled Angle Distributor in Kolkata, Aluminium 5083 Angle in India

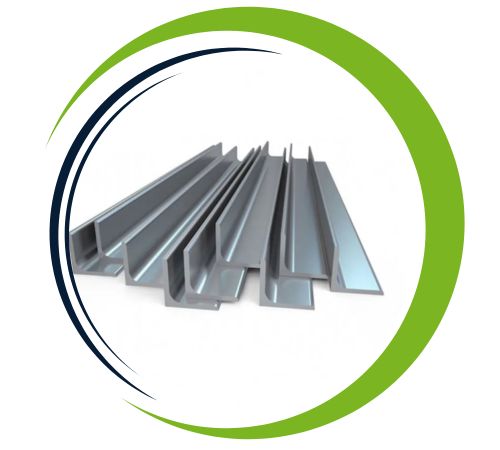

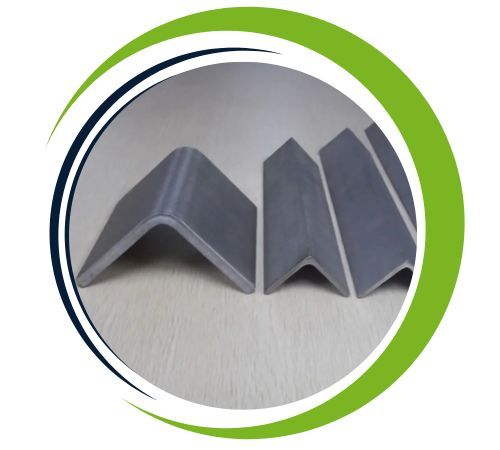

Types of Aluminium 5083 Angle

Aluminium 5083 Angle Manufacturer in Kolkata, Aluminium 5083 Hot Rolled Angle in Kolkata, Aluminium 5083 Equal Leg Angle Supplier in Kolkata, Aluminium 5083 Angle Exporter in India, Aluminium 5083 HR Angle Price List in Kolkata, Aluminium 5083 Unequal Leg Angles Distributor in Kolkata, Aluminium 5083 Angle Supplier in Kolkata, Aluminium 5083 Hot Rolled Angle Distributor in India, Aluminium 5083 Angle Sizes in mm

Are Custom Sizes Available for Aluminium 5083 Angle?

Yes, we offer custom sizes for Aluminium 5083 Angle to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Aluminium 5083 Angles Equivalent Grades

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlMg4,5Mn0,7	AG4,5MC	3.3547	A95083	AlMg4,5Mn0,7	5083	AlMg4,5Mn

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Aluminium 5083 Angle

Aluminium 5083 Angles are extensively applied in marine applications owing to their exceptional seawater corrosion resistance. They are used in ship hull building, boat parts, and offshore construction. Outside the marine sector, these angles are applied in transportation, especially in truck bodies, railcars, and cryogenic tanks because of their superior strength-to-weight ratio. Their superior weldability and durability make them suitable for structural frameworks, pressure vessels, and storage tanks. Additionally, Aluminium 5083 Angles are used in defense and aerospace industries where performance under extreme environmental and mechanical stress is essential.
