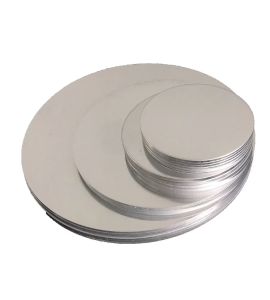

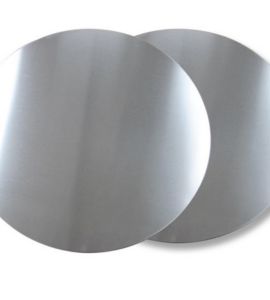

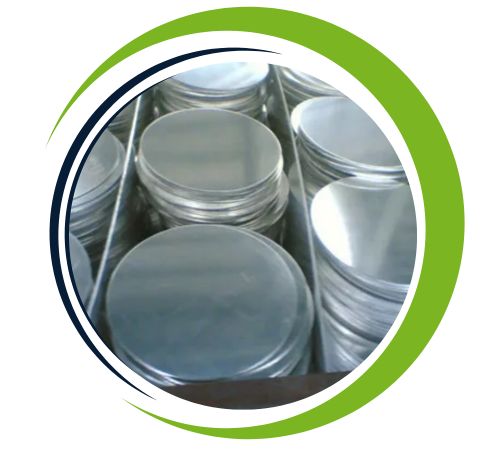

In Kolkata, India, Khush Sheets and Plates is a reputable producer and supplier of aluminium 5083 circles. Our corrosion-resistant, high-strength aluminium circles find extensive applications in the chemical, industrial, and marine industries. Aluminium 5083 is well known for performing exceptionally well in challenging conditions, such as exposure to saltwater and high temperatures. To satisfy particular fabrication and design requirements, our precisely engineered circles come in a range of thicknesses and diameters. Khush Sheets and Plates provides dependable aluminium circle solutions to customers throughout India and international markets with an emphasis on quality, prompt delivery, and customer satisfaction.
In addition to trace amounts of iron, silicon, and copper, the components of Aluminium 5083 Circles are aluminium (~92.5%), magnesium (4.0–4.9%), manganese (0.4–1.0%), and chromium (0.05–0.25%). Particularly in maritime settings, the alloy provides remarkable resistance to corrosion. Depending on the temper (usually O, H111, or H321), it has a tensile strength of 275–350 MPa, a yield strength of 145–200 MPa, and an elongation of up to 12–20%. Aluminium 5083 is perfect for critical applications needing high integrity and resistance to stress corrosion cracking because it is also well-formed, weldable, and retains strength after welding.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H 116,H321
Thickness : 1 Mm To 100 mm
Diameter : Upto 2000 mm
Circle Diameter : 3″ DIA up to 38″ DIA 1500 lbs max

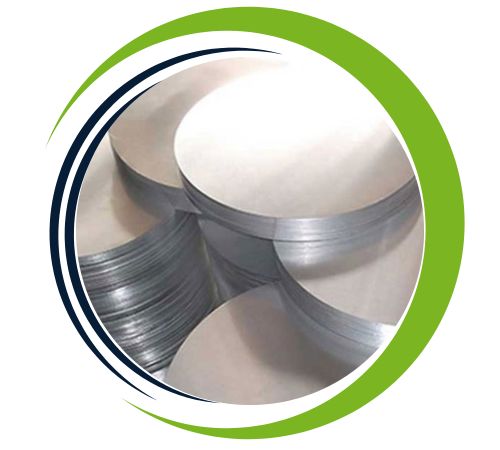

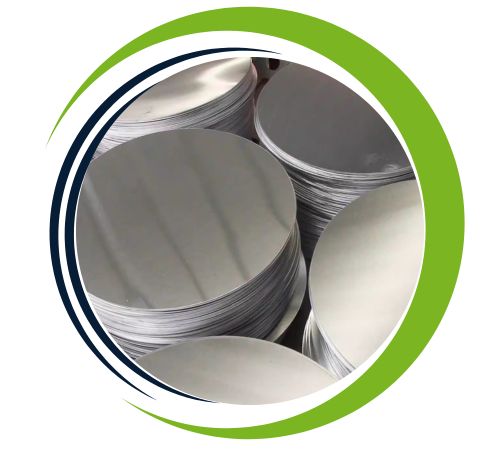

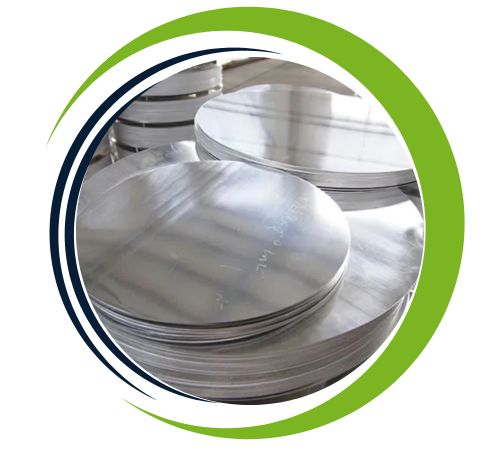

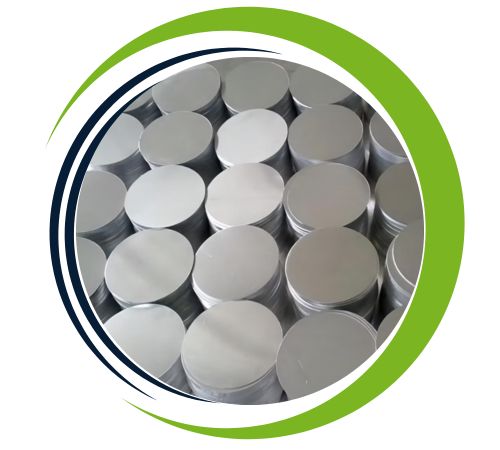

Circles Form : Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles
Finish :Mill, Customer specific finish
Aluminum Circle Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
| Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-Al-Mg-5Mn0,7 | AG4,5MC | 3.3547 | A95083 | Al-Mg-5Mn0,7 | 5083 | Al-Mg-5Mn |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

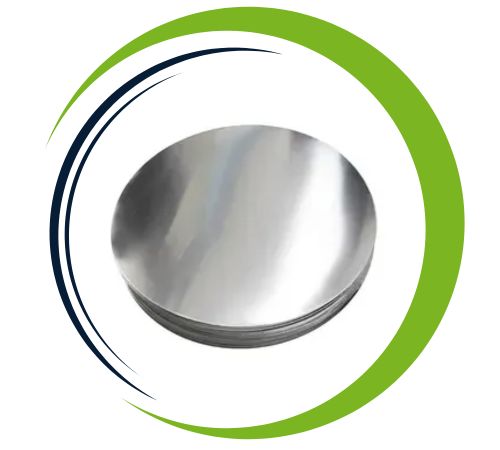

5083 aluminium Because of their exceptional resistance to corrosion in saltwater, circles are frequently utilised in the marine industry for parts such as propeller covers, decks, and boat hulls. Because of their strength-to-weight ratio, they are utilised in the transportation industry in rail car floors, truck beds and automobile fuel tanks. These circles are also perfect for chemical processing equipment, pressure vessels, and cryogenic tanks. They are employed in manufacturing to make machinery discs, industrial lids, and cooking utensils. They are appropriate for heavy-duty and precise applications in a variety of industries due to their formability and durability.
