Aluminium 5086 Plates and Sheets

In Kolkata, India, Khush Sheets and Plates is a top producer and supplier of aluminium 5086 plates and sheets. We provide Aluminium 5086 in a range of thicknesses and dimensions to satisfy particular industry demands. We are renowned for producing high-performance, corrosion-resistant aluminium products. This marine-grade aluminium alloy is a popular option for structural, transport, and marine applications because of its exceptional strength, weldability, and resistance to saltwater corrosion. Khush Sheets and Plates provides dependable aluminium solutions to customers throughout India and exports to international markets with a strong dedication to quality, accuracy, and customer satisfaction.

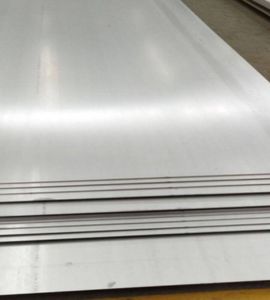

Aluminium 5086 Cold Rolled Plates

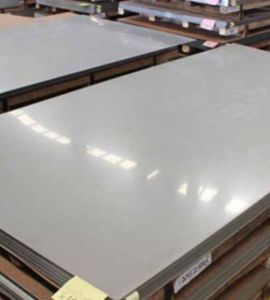

Aluminium 5086 Hot Rolled Plates

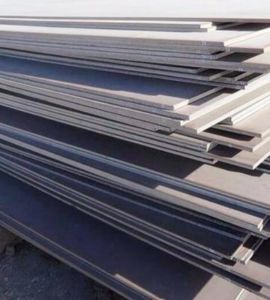

Aluminium 5086 Shim Sheets

Aluminium Sheets 5086 Dealer in Kolkata, Aluminium Shim Sheets 5086 Supplier in Kolkata, Aluminium Sheets 5086 in Kolkata, Aluminium 5086 HR Sheets Size Chart, Aluminium Sheet 5086 Price in India, Aluminium Cold Rolled Plates 5086 Supplier in Kolkata, Aluminium 5086 Industrial Sheets Stockist in India, Aluminium Sheets and Plates 5086 Exporter in India, Aluminium Sheet 5086 Stockist in Kolkata, Aluminium 5086 Cold Forming Sheets Supplier in India

Aluminium (~95.4%), Magnesium (3.5–4.5%), Manganese (0.2–0.7%), and trace amounts of Iron, Silicon, Chromium, and Zinc make up the majority of aluminium 5086 plates and sheets. Excellent corrosion resistance is provided by this alloy, particularly in marine environments. Depending on thickness, it offers a tensile strength of 275–350 MPa, a yield strength of 125–290 MPa, and an elongation of 10–22% in the H116 or H32 temper. Aluminium 5086 is incredibly versatile and long-lasting because it maintains its mechanical qualities even after welding and works well in cryogenic and high-temperature applications.

Aluminium 5086 Plates and Sheets Specification

Standards	ASTM B209 / ASME SB209
Temper	O,H12,H14,H16,H18,H19,H22,H24
Thickness	0.2-50
Width	100-2600
Length	500-10000
Surface	Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish	Mill, Customer specific finish
Aluminum Sheet/ Plate Coating	PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type	Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Aluminium Sheets 5086 Price in India, Aluminium Hot Rolled Sheet 5086 Weight Chart, Aluminium Cold Rolled Plates 5086 Supplier in Kolkata, Stockist of Aluminium Cold Rolled Sheets 5086 in India, Aluminium Perforated Sheet 5086 Supplier in India, Aluminium Perforated Plates 5086 Price List in Kolkata, Aluminium 5086 Cold Forming Sheets Supplier in India, Aluminium Chequered Plates 5086 Exporter in Kolkata, Aluminium Polished Plates 5086 Exporter in India, Aluminium Perforated Plates 5086 Exporter in Kolkata, Aluminium Sheet and Plate 5086 in India

Aluminium 5086 Plates and Sheets Chemical Composition

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others, each	Others, total	Al
0.4	0.5	0.1	0.20-0.70	3.5-4.5	0.05-0.25	0.25	0.15	0.05	0.15	Balance

Aluminium 5086 Plates and Sheets Mechanical Properties

Proof Stress	Tensile Strength	Hardness Brinell	Elongation
125 Min MPa	275 – 350 MPa	75 HB	12 Min %

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium 5086 Plates and Sheets Manufacturer and Exporter in Kolkata, India

Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium Plates 5086 Manufacturer in Kolkata, Aluminium Plates Sheets 5086 in Kolkata, Aluminium Mirror Finish Plates 5086 Supplier in Kolkata, Aluminium Polished Plates 5086 Exporter in India, Aluminium Chequered Plates 5086 Price List in Kolkata, Aluminium Cold Rolled Plate 5086 Distributor in Kolkata, Aluminium Clad Plates and Sheets 5086 Supplier in Kolkata, Aluminium Sheet and Plate 5086 Distributor in India, Aluminium Perforated Plate 5086 Sizes in mm

Types of Aluminium 5086 Plates and Sheets

Aluminium Clad Sheets 5086 Distributor in India, Aluminium Perforated Plates 5086 Supplier in Kolkata, Aluminium Perforated Sheet 5086 Weight Chart, Aluminium Plate 5086 Exporter in India, Aluminium Polished Sheets 5086 Manufacturer in Kolkata, Aluminium Shim Sheet and Plate 5086 Price List in Kolkata, Aluminium Chequered Plates 5086 Sizes in mm, Aluminium Hot Rolled Plate 5086 Distributor in Kolkata, Aluminium Sheets and Plates 5086 India.

Are Custom Sizes Available for Aluminium 5086 Plates and Sheets?

Yes, we offer custom sizes for Aluminium 5086 Plates and Sheets to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@khushsheetsandplates.co.in

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Aluminium 5086 Plates and Sheets Equivalent Grades

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlMg4	AG4MC	3.3545	A95086	AlMg4	5086	AlMg4Mn

Aluminium 5086 Plates and Sheets Sizes

Properties	Metric	Imperial
Tensile strength	130 MPa	18855 psi
Yield strength	125 MPa	18130 psi
Shear strength	83 MPa	12039 psi
Fatigue strength	55 MPa	7977 psi
Elastic modulus	70-80 GPa	10153-11603 ksi
Poisson’s ratio	0.33	0.33
Elongation	10%	10%
Hardness	35	35

Application Industry of Aluminium 5086 Plates and Sheets

Because of their exceptional resistance to corrosion in saltwater, aluminium 5086 plates and sheets are frequently used in the marine industry for offshore platforms, deck structures, and boat hulls. They are used for tankers, rail cars and truck trailers in the transportation industry. 5086 is used in the defence industry for naval vessels and armour plating. This alloy is also used in pressure vessels, cryogenic storage tanks, and structural elements in challenging conditions. Bridges, stairways, and architectural frameworks needing long-term durability and corrosion resistance can benefit from its exceptional strength-to-weight ratio and weldability.
