Aluminium 7075 Angle

Based in Kolkata, India, Khush Sheets and Plates is a well-known producer and supplier of aluminium 7075 angles. Our goal is to satisfy the demanding needs of contemporary industries by providing high-performance aluminium products. The remarkable strength, lightweight design, and superior resistance to fatigue and stress corrosion are well-known attributes of our aluminium 7075 angles. These angles, which are made with cutting-edge technology and stringent quality control, are perfect for structural, automotive, and aerospace applications. Our top priorities at Khush Sheets and Plates are quality, accuracy, and client satisfaction. We provide dependable solutions that meet engineering specifications and international standards.

Aluminium 7075 Angle Dealer in Kolkata, Aluminium 7075 Architectural Angles Supplier in Kolkata, Aluminium 7075 Angle in Kolkata, Aluminium 7075 Equal Leg Angle Size Chart, Aluminium 7075 Angle Price in India, Aluminium 7075 Angle Supplier in Kolkata, Aluminium 7075 Angle Stockist in India, Aluminium 7075 Unequal Leg Angles Exporter in India, Aluminium 7075 Angle Stockist in Kolkata, Aluminium 7075 Angle Supplier in India

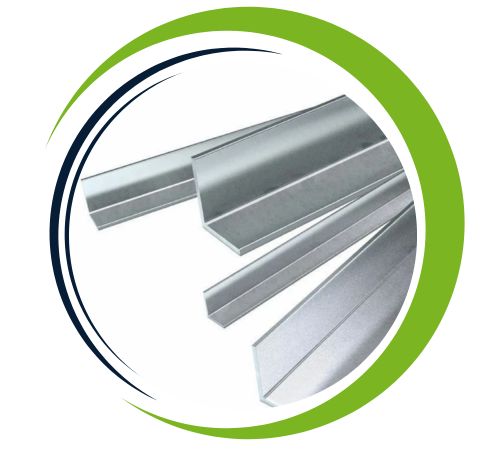

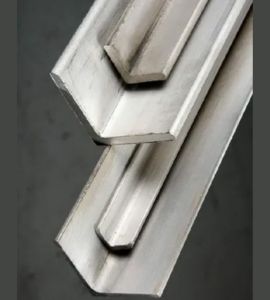

Aluminium 7075 Architectural Angles

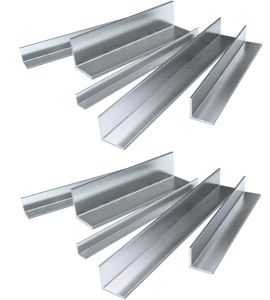

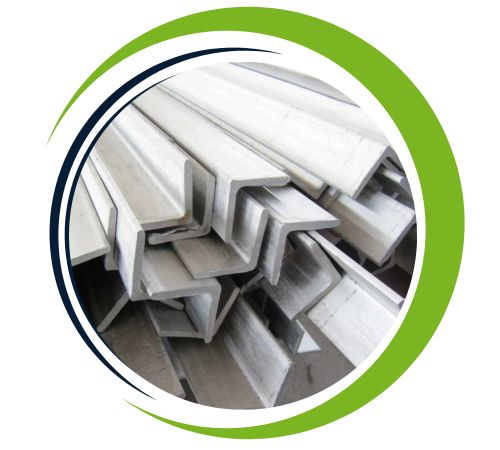

Aluminium 7075 Hot Rolled Angle

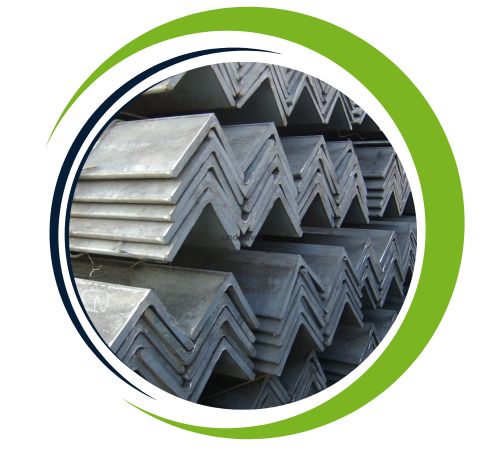

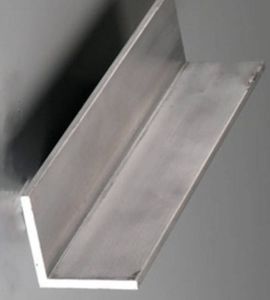

Aluminium 7075 Unequal Leg Angles

Aluminium, zinc (5.1–6.1%), magnesium (2.1–2.9%), and copper (1.2–2.0%) make up the majority of aluminium 7075 Angles, with trace amounts of silicon and chromium. With tensile strengths between 510 and 560 MPa and yield strengths between 430 and 480 MPa, this alloy is well known for having a high strength-to-weight ratio. Although its weldability is limited, it also provides good machinability and outstanding fatigue resistance. Hardness and mechanical performance are further improved by the T6 temper. Because aluminium 7075 is a heat-treatable alloy, it can withstand high loads in harsh conditions.

Aluminium 7075 Angle Specification

Standards : ASTM B221 / B211 ASME SB221 / SB211, EN573, EN485, AMS 4003, AMS 4102

Temper : O, T3,T4,T5, T6, T651 T6511

Standard : ASTM, ASME, AMS, GB/T, JIS

Thickness : 50 mm to 6000 mm Long

Size : 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm

Length : 1 To 6 Meters, Custom Cut Length

Finish : Mill, Customer specific finish

Surface : Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc

Aluminium 7075 Angles Chemical Composition

Weight %	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Each	Total
Minimum			1.20		2.10	0.18	5.10
Maximum	0.40	0.50	2.00	0.30	2.90	0.28	6.10	0.20	0.05	0.15

Aluminium 7075 Angles Mechanical Properties

Temper	Tensile					Hardness
	Ultimate		Yield		Elongation	Brinell
	KSI	MPA	KSI	MPA	%
T6, T651	83	572	73	503	11	150
T73, T7351	73	503	63	434	13	N/A

Aluminium 7075 Angle Price in India, Aluminium 7075 Hot Rolled Angle Weight Chart, Aluminium 7075 Angle Bar Angle Supplier in Kolkata, Stockist of Aluminium 7075 Angle in India, Aluminium 7075 Angle Supplier in India, Aluminium 7075 HR Angles Price List in Kolkata, Aluminium 7075 Angle Supplier in India, Aluminium 7075 Hot Rolled Angle Exporter in Kolkata, Aluminium 7075 Angle Exporter in India, Aluminium 7075 HR Angles Exporter in Kolkata, Aluminium 7075 Angle in India

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium 7075 Angle Manufacturer and Exporter in Kolkata, India

Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium 7075 Angle Distributor in India, Aluminium 7075 Angle Supplier in Kolkata, Aluminium 7075 Angle Weight Chart, Aluminium 7075 Hot Rolled Angle Exporter in India, Aluminium 7075 Angle Manufacturer in Kolkata, Aluminium 7075 Angle Price List in Kolkata, Aluminium 7075 Angle Sizes in mm, Aluminium 7075 Hot Rolled Angle Distributor in Kolkata, Aluminium 7075 Angle in India

Types of Aluminium 7075 Angle

Aluminium 7075 Angle Manufacturer in Kolkata, Aluminium 7075 Hot Rolled Angle in Kolkata, Aluminium 7075 Equal Leg Angle Supplier in Kolkata, Aluminium 7075 Angle Exporter in India, Aluminium 7075 HR Angle Price List in Kolkata, Aluminium 7075 Unequal Leg Angles Distributor in Kolkata, Aluminium 7075 Angle Supplier in Kolkata, Aluminium 7075 Hot Rolled Angle Distributor in India, Aluminium 7075 Angle Sizes in mm

Are Custom Sizes Available for Aluminium 7075 Angle?

Yes, we offer custom sizes for Aluminium 7075 Angle to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Aluminium 7075 Angles Equivalent Grades

UNS	EN	DIN,WNr	JIS	AFNOR	ISO	BS	GOST
A97075	ENAW-AlZn5.5MgCu EN AW-7075	3.4365 AlZnMgCu1.5	7075	7075 A-Z5GU	AlZn6MgCu	7075 L95 L96	V95

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Aluminium 7075 Angle

Applications requiring high strength, low weight, and exceptional fatigue resistance frequently use aluminium 7075 angles. They are utilised for structural elements like frames, supports, and fittings in the aerospace industry. These angles are used in the automotive industry for safety structures, performance parts, and chassis components. Additionally, they are used in defence and marine applications where resilience to corrosion and resilience to stress are essential. Aluminium 7075 Angles are also perfect for robotics, motorcycles, and high-performance athletic gear. They are essential for high-load structural projects and precision engineering due to their robust mechanical qualities.
