Aluminium 7075 Plates and Sheets

Khush Sheets and Plates is a well-known manufacturer and supplier of premium-grade Aluminium 7075 Plates and Sheets in Kolkata, India. For our commitment to quality and customer satisfaction, we offer superior aluminium solutions for aerospace, marine, automotive, and defense sectors. Our Aluminium 7075 Plates and Sheets are made by adopting advanced technology and abide by international standards of quality. Having remarkable strength-to-weight ratio and superior performance under stress, they are perfectly suited for vital structural applications. Khush Sheets and Plates provides speedy delivery, competitive prices, and professional assistance and thereby becomes a reliable partner for aluminium alloy requirements in India.

Aluminium 7075 Cold Rolled Plates

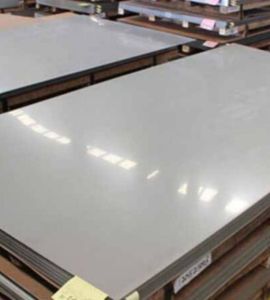

Aluminium 7075 Hot Rolled Plates

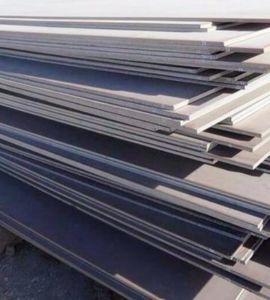

Aluminium 7075 Shim Sheets

Aluminium Sheets 7075 Dealer in Kolkata, Aluminium Shim Sheets 7075 Supplier in Kolkata, Aluminium Sheets 7075 in Kolkata, Aluminium 7075 HR Sheets Size Chart, Aluminium Sheet 7075 Price in India, Aluminium Cold Rolled Plates 7075 Supplier in Kolkata, Aluminium 7075 Industrial Sheets Stockist in India, Aluminium Sheets and Plates 7075 Exporter in India, Aluminium Sheet 7075 Stockist in Kolkata, Aluminium 7075 Cold Forming Sheets Supplier in India

Aluminium 7075 Plates and Sheets contain mainly aluminium (90.0–91.5%), with major additions of zinc (5.1–6.1%), magnesium (2.1–2.9%), and copper (1.2–2.0%), in addition to minor elements. It has very high strength, similar to most steels, with a tensile strength of as much as 572 MPa and a yield strength of approximately 503 MPa. Although very strong, it still has good fatigue life and moderate machinability. It possesses limited weldability but good performance in high-stress conditions. The alloy is heat-treatable and provides a high strength-to-weight ratio, which makes it suitable for aerospace and structural use.

Aluminium 7075 Plates and Sheets Specification

Standards	ASTM B209 / ASME SB209
Temper	O,H12,H14,H16,H18,H19,H22,H24
Thickness	0.2-50
Width	100-2600
Length	500-10000
Surface	Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish	Mill, Customer specific finish
Aluminum Sheet/ Plate Coating	PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type	Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Aluminium 7075 Plates and Sheets Chemical Composition

Weight %	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Each	Total
Minimum			1.20		2.10	0.18	5.10
Maximum	0.40	0.50	2.00	0.30	2.90	0.28	6.10	0.20	0.05	0.15

Aluminium 7075 Plates and Sheets Mechanical Properties

Temper	Tensile					Hardness
	Ultimate		Yield		Elongation	Brinell
	KSI	MPA	KSI	MPA	%
T6, T651	83	572	73	503	11	150
T73, T7351	73	503	63	434	13	N/A

Aluminium Plates 7075 Manufacturer in Kolkata, Aluminium Plates Sheets 7075 in Kolkata, Aluminium Mirror Finish Plates 7075 Supplier in Kolkata, Aluminium Polished Plates 7075 Exporter in India, Aluminium Chequered Plates 7075 Price List in Kolkata, Aluminium Cold Rolled Plate 7075 Distributor in Kolkata, Aluminium Clad Plates and Sheets 7075 Supplier in Kolkata, Aluminium Sheet and Plate 7075 Distributor in India, Aluminium Perforated Plate 7075 Sizes in mm

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium 7075 Plates and Sheets Manufacturer and Exporter in Kolkata, India

Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium Sheets 7075 Price in India, Aluminium Hot Rolled Sheet 7075 Weight Chart, Aluminium Cold Rolled Plates 7075 Supplier in Kolkata, Stockist of Aluminium Cold Rolled Sheets 7075 in India, Aluminium Perforated Sheet 7075 Supplier in India, Aluminium Perforated Plates 7075 Price List in Kolkata, Aluminium 7075 Cold Forming Sheets Supplier in India, Aluminium Chequered Plates 7075 Exporter in Kolkata, Aluminium Polished Plates 7075 Exporter in India, Aluminium Perforated Plates 7075 Exporter in Kolkata, Aluminium Sheet and Plate 7075 in India

Types of Aluminium 7075 Plates and Sheets

Aluminium Clad Sheets 7075 Distributor in India, Aluminium Perforated Plates 7075 Supplier in Kolkata, Aluminium Perforated Sheet 7075 Weight Chart, Aluminium Plate 7075 Exporter in India, Aluminium Polished Sheets 7075 Manufacturer in Kolkata, Aluminium Shim Sheet and Plate 7075 Price List in Kolkata, Aluminium Chequered Plates 7075 Sizes in mm, Aluminium Hot Rolled Plate 7075 Distributor in Kolkata, Aluminium Sheets and Plates 7075 India.

Are Custom Sizes Available for Aluminium 7075 Plates and Sheets?

Yes, we offer custom sizes for Aluminium 7075 Plates and Sheets to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@khushsheetsandplates.co.in

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Aluminium 7075 Plates and Sheets Equivalent Grades

UNS	EN	DIN,WNr	JIS	AFNOR	ISO	BS	GOST
A97075	ENAW-AlZn5.5MgCu EN AW-7075	3.4365 AlZnMgCu1.5	7075	7075 A-Z5GU	AlZn6MgCu	7075 L95 L96	V95

Aluminium 7075 Plates and Sheets Sizes

Properties	Metric	Imperial
Tensile strength	130 MPa	18855 psi
Yield strength	125 MPa	18130 psi
Shear strength	83 MPa	12039 psi
Fatigue strength	55 MPa	7977 psi
Elastic modulus	70-80 GPa	10153-11603 ksi
Poisson’s ratio	0.33	0.33
Elongation	10%	10%
Hardness	35	35

Application Industry of Aluminium 7075 Plates and Sheets

Aluminium 7075 Sheets and Plates are extensively utilized by industries which demand high strength and low weight. In the aerospace field, they are applied in aircraft structures, wings, frames of the fuselage, and landing gear parts. The automobile industry utilizes them in high-performance cars for chassis components and structural panels. In the defense sector, the alloy is utilized in armored vehicles and military-grade parts based on its strength and toughness. Marine uses involve fittings and masts for racing yachts. Other sporting products that Aluminium 7075 is employed in include bicycles, mountain climbing equipment, and golf clubs, where lightness and strength are absolutely necessary to achieve the best level of performance.
