Aluminium Sheets and Plates

In Kolkata, India, Khush Sheets and Plates is a top producer and supplier of aluminium sheets and plates. We provide a wide selection of premium aluminium products that can be used in commercial, architectural, and industrial settings. Our plates and sheets are renowned for their exceptional strength, versatility, resistance to corrosion, and light weight. Our aluminium products, which come in different grades like 1050, 5052, 5083, 6061, and 7075, meet a range of industry needs. Khush Sheets and Plates provides dependable and adaptable aluminium solutions to customers in India and overseas with cutting-edge processing capabilities and a customer-centric approach.

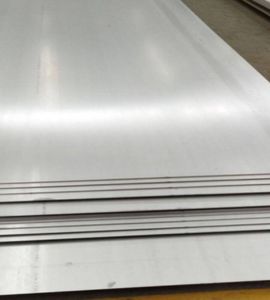

Aluminium Cold Rolled Plates

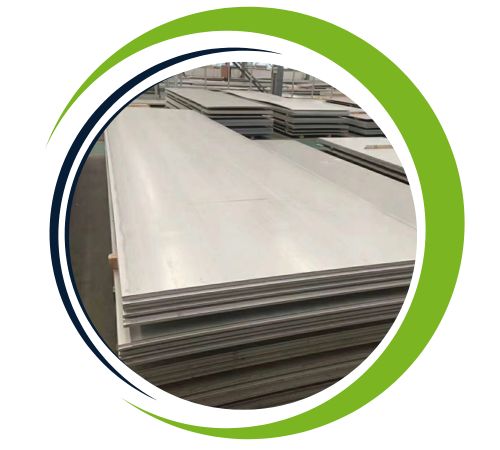

Aluminium Hot Rolled Plates

Aluminium Shim Sheets

Aluminium Sheets Dealer in Kolkata, Aluminium Hot Rolled (HR) Sheet & Plates Supplier in Kolkata, Aluminium Sheets in Kolkata, Aluminium Plates Size Chart, Aluminium Sheet Price in India, Aluminium Cold Rolled (CR) Sheet Supplier in Kolkata, Aluminium Sheet Stockist in India, Aluminium Sheets and Plates Exporter in India, Aluminium Sheet Stockist in Kolkata, Aluminium Plates Supplier in India

There are several grades of aluminium sheets and plates, and each has special qualities. 1050, for instance, is almost entirely aluminium (about 99.5%) with outstanding conductivity; 5052 and 5083 have magnesium for strength and resistance to corrosion; and 6061 and 7075 have silicon, zinc, and magnesium for increased mechanical strength. Tensile strength varies from 90 MPa (1050) to over 550 MPa (7075) depending on the grade, while yield strength ranges from 40 MPa to 500 MPa. Excellent formability, weldability, and thermal conductivity are additional qualities that make aluminium sheets and plates appropriate for a variety of applications.

Aluminium Sheet and Plates Specification

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Aluminium Sheets Price in India, Aluminium Hot Rolled Weight Chart, Aluminium Cold Rolled Supplier in Kolkata, Stockist of Aluminium Cold Rolled Sheets in India, Aluminium Perforated Sheet Supplier in India, Aluminium Perforated Plates Price List in Kolkata, Aluminium Perforated Plates Supplier in India, Aluminium Chequered Plates Exporter in Kolkata, Aluminium Polished Plates Exporter in India, Aluminium Perforated Plates Exporter in Kolkata, Aluminium Sheet and Plate in India

Aluminium Sheet and Plates Chemical Composition

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Aluminium Sheet and Plates Mechanical Properties

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium Sheet and Plates Manufacturer and Exporter in Kolkata, India

Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium Clad Sheets Distributor in India, Aluminium Perforated Plates Supplier in Kolkata, Aluminium Perforated Sheet Weight Chart, Aluminium Plate Exporter in India, Aluminium Polished Sheets Manufacturer in Kolkata, Aluminium Shim Sheet and Plate Price List in Kolkata, Aluminium Chequered Plates Sizes in mm, Aluminium Hot Rolled Plate Distributor in Kolkata, Aluminium Sheets and Plates India

Types of Aluminium Sheet and Plates

Aluminium Plates Manufacturer in Kolkata, Aluminium Plates & Sheets in Kolkata, Aluminium Mirror Finish Plates Supplier in Kolkata, Aluminium Polished Plates Exporter in India, Aluminium Chequered Plates Price List in Kolkata, Aluminium Cold Rolled Plate Distributor in Kolkata, Aluminium Clad Plates and Sheets Supplier in Kolkata, Aluminium Sheet and Plate Distributor in India, Aluminium Perforated Plate Sizes in mm

Are Custom Sizes Available for Aluminium Sheet and Plates?

Yes, we offer custom sizes for Aluminium Sheet and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@khushsheetsandplates.co.in

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Aluminium Sheet and Plates Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Aluminium Sheet and Plates Sizes

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Application Industry of Aluminium Sheet and Plates

Many different industries make extensive use of aluminium sheets and plates. They are used for structural frames, aircraft skins, and body panels in the automotive and aerospace industries. Corrosion-resistant grades are utilised for deck and hull cladding in the marine industry. Electrical applications include enclosures and conductive components, while construction applications include window frames, roofing, and facades. They are also widely used in packaging, transport vehicles, machinery parts, and kitchenware. Aluminium sheets and plates are lightweight, strong, and adaptable, providing dependable performance for both load-bearing and decorative applications.
