Brass Sheet and Plate

Khush Sheets and Plates is a well-known manufacturer and exporter of high-quality Brass Sheets and Plates, situated in Kolkata, India. With years of experience and dedication to excellence, we provide brass products that are at par with the top industry standards for finish, performance, and durability. Our brass sheets and plates are produced using the latest techniques and are offered in different sizes, thicknesses, and grades to fulfill different industrial requirements. Renowned for their corrosion resistance, appearance, and machinability, our products find extensive use across industries. We commit to timely delivery, competitive pricing, and excellent customer care in India as well as internationally.

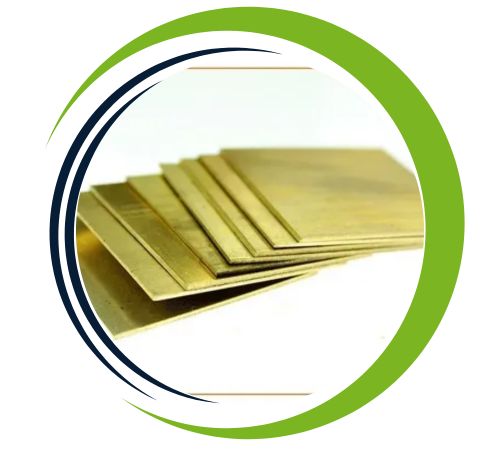

Brass CR Plates

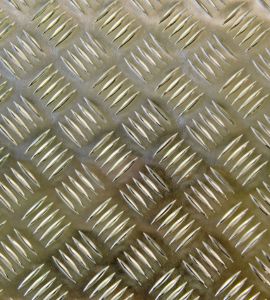

Brass Chequered Plate

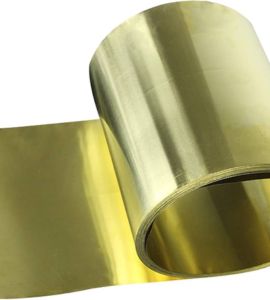

Brass Hot Rolled Sheets

Brass Sheet Dealer in Kolkata, Brass Plates Supplier in Kolkata, Brass Sheets and Plates in Kolkata, Brass Sheets and Plates Size Chart, Brass Sheets and Plates Price in India, Brass Plates Supplier in Kolkata, Brass Sheets in India, Brass Sheet and Plate Supplier in India

Brass Sheets and Plates contain a high proportion of copper and zinc, with copper content usually being between 60% and 70%. Typical alloys are C260 (Cartridge Brass) and C280 (Muntz Metal). These are good in strength, resistance to corrosion, and also very formable. Brass has a tensile strength of 300 to 500 MPa and is ductile, thus being easily machinable and fabricable. Its electrical and thermal conductivity are also significant. The mechanical strength and attractive appearance make brass ideal for functional as well as ornamental uses.

Brass Sheet and Plate Specification

Standard	ASTM, AISI, EN, BS, JIS, ISO, GB
Grade	H59, H62, H65, H68, H70, H80, H85, H90, H96
Size	Thickness: 0.1-500mm Width: 1mm-5000mm Length: 1m, 2m, 3mor as required
Surface	mill, polished, bright, oiled, hair line, brush, mirror, sand blast, Manufacturer and Supplier
Application	Brass plate has a high corrosion resistance, and have good plasticity, in the air easy to cold and hot pressure processing, easy to welding, forging and tin, no stress corrosion cracking the tendency.
Package	Standard export seaworthy package, suit for all kinds of transport, or as required.

Brass Sheet and Plate Chemical Composition

Constituent	Alloys Designation precent
CuZn30	CuZn37
Copper	68.5 to 71.0	62.0 to 65.0
Lead, max	0.05	0.30
Iron, max	0.5	0.10
Total impurities, max	0.03	0.60
Zink	Reminder	Reminder

Brass Sheet and Plate Mechanical Properties

Property	Sheet
Tensile Strength	300 – 550 MPa
Proof Stress	110 – 500 MPa
Elongation A50 mm	38 – 3%
Hardness Vickers	55 – 180 HV
Hardness Brinell	–

Physical Properties Of Brass Sheet and Plate

Property	Value
Density	8.44 kg/m³
Melting Point	916°C
Modulus of Elasticity	103.4 GPa
Thermal Conductivity	116 W/m.K
Thermal Expansion	20.5×10^-6 /°C

Brass Hot Rolled Sheets Price in India, Brass Shim Sheets Weight Chart, Brass Perforated Sheets Supplier in Kolkata, Stockist of SUS Brass Sheets and Plates in India, Brass Cold Rolled Sheets Supplier in India, Brass Cold Drawn Plates Price List in Kolkata, Brass Chequered Plates Supplier in India, Brass Chequered Plates Exporter in Kolkata, Brass Plates Exporter in India, Brass Sheet Exporter in Kolkata

Thickness Tolerance of Brass Sheet and Plate

Thickness (mm)	Tolerance in mm Plus or Minus (+ or -)
Over 0.3 to 0.4	0.07
Over 0.4 to 0.5	0.08
Over 0.5 to 0.8	0.09
Over 0.8 to 1.2	0.10
Over 1.2 to 1.8	0.11
Over 1.8 to 2.5	0.13
Over 2.5 to 3.2	0.17
Over 3.2 to 4.0	0.20
Over 4.0 to 5.0	0.23
Over 5.0 to 6.0	0.26
Over 6.0 to 7.0	0.29
Over 7.0 to 8.0	0.32
Over 8.0 to 9.0	0.35
Over 9.0 to 10.0	0.38

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Brass Sheet and Plate Manufacturer and Exporter in Kolkata, India

Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Brass Sheets Distributor in India, Brass Plates Supplier in Kolkata, Brass Sheets Weight Chart, Brass Hot Rolled Sheets Exporter in India, Brass Shim Sheets Manufacturer in Kolkata, Brass Chequered Plates Price List in Kolkata, Brass Sheets Sizes in mm, Brass Sheet Distributor in Kolkata, Brass Sheets and Plates Exporter in India

Types of Brass Sheet and Plate

Brass Plates in Kolkata, Brass Sheets Kolkata, Brass Sheets and Plates Supplier in Kolkata, Brass Perforated Sheets Exporter in India, Brass Perforated Sheets Price List in Kolkata, Brass Sheets Distributor in Kolkata, Brass Sheets Supplier in Kolkata, Brass Sheet and Plate Distributor in India, Brass Shim Sheets Sizes in mm

Are Custom Sizes Available for Brass Sheet and Plate?

Yes, we offer custom sizes for Brass Sheet and Plate to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Brass Sheet and Plate

Brass Plates and Sheets find extensive application in a variety of industries because they are strong, corrosion-resistant, and workable. In the electrical sector, they are utilized in terminals, connectors, and parts that need good conductivity. The interior design and architectural markets employ brass in decorative panels, fixtures, signage, and furniture trim. Brass is used for boat fittings and hardware in marine applications because it resists saltwater corrosion. It is also employed in automotive components, plumbing fixtures, musical instruments, and shell casings for ammunition. The metal‘s pleasing finish and versatility allow it to be used on both industrial and artistic levels.
