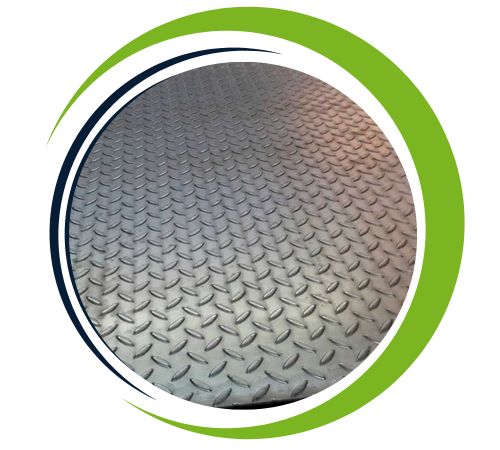

Khush Sheets and Plates is a renowned supplier and maker of C55 High Carbon Steel Sheets and Plates in Kolkata, India. We provide high-quality steel products that are carefully designed to suit the needs of numerous heavy-duty industrial uses. Our C55 High Carbon Steel Sheets and Plates are highly appreciated for their hardness, strength, and resistance to wear, making them suitable for use in manufacturing and engineering industries. Supported by state-of-the-art processing plants and rigorous quality checks, Khush Sheets and Plates provides consistent, high-performance steel solutions to customers in India and overseas markets.
C55 High Carbon Steel has about 0.52–0.60% carbon, 0.60–0.90% manganese, and very small amounts of silicon, phosphorus, and sulfur. The material is high in surface hardness and strength when heat-treated. The steel generally has a tensile strength of 700–850 MPa and a yield strength of about 400 MPa, with low elongation of 10–14%. The steel is good for wear resistance and fair for machinability, but has low weldability due to its high carbon content. It is appropriate for applications where hardness, toughness, and resistance against deformation under stress are needed.
| Thickness Range | 0.10 – 5.00 MM |
| Width Range | 5.00 – 1250 MM |
| Form | Can be supplied in Coil or Sheet form |
| Sheet Length (CTL) | 300 – 3000 MM |
| Edge | Mill edge or Sheared edge |
| Coil / Sheet Pallet Weight | Weight of each Coil or Sheet pallet can be customized as per customer’s need |
| Coil ID / OD | ID or OD of each Coil can be customized as per customer’s need |
| Packing | High-end export packing for sea or road travel, completely safe during transit. Duly oiled with anti-rust oil, wrapped in hessian cloth & high-density plastic sheets to prevent moisture. Further strapped with high tensile strips. For identification & tracing, non-erasable polyester stickers are placed on each material |
| Delivery Time | Dispatched within 10 days to 2 months, depends upon the required size |
| Some Applications | Auto components such as Washers, Clutch components, various types of Springs, Pen Clips, Hanger Clips, Cycle/Motor Chains, etc. |
Element |
C |
Si |
Mn |
P |
S |
Cr |
Cu |
Ni |
Content (%) |
0.47 – 0.55 |
0.17 – 0.37 |
0.50 – 0.80 |
0.03 |
0.03 |
0.15 |
0.25 |
0.30 |
GRADE |
Tensile Strength min |
Yield Strength min |
Elongation min. |
contraction min |
impact min |
Hardness Max |
|
σb/M Pa |
σs/M Pa |
δ5/% |
ψ/% |
Akv/J |
Without heating |
annealing |
|
C50 |
630 |
375 |
14 |
40 |
31 |
241 |
207 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yes, we offer custom sizes for C55 High Carbon Steel Sheet and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| SAE / AISI – American | SAE 1050 |
| DIN – Germany | C50 / CK50 |
| EN – English / BS – British | – |
| JIS – Japanese | S50C |
| UNI – Italy | C50 |
C55 High Carbon Steel Sheets and Plates are extensively applied across the automotive, engineering, and manufacturing sectors for parts that need high strength and resistance against wear. They are typically used in making springs, knives, cutting tools, shafts, axles, clutch plates, and farming equipment. Their surface hardness is high, which makes them good for tooling and dies, and their stress resistance makes them good for structural components subjected to dynamic loads. The plates are also applied in heavy machinery, production of gears, and other industrial operations where hardness and toughness are important for performance and longevity.
