Copper Sheet and Plate

In Kolkata, India, Khush Sheets and Plates is a reputable producer and supplier of copper sheets and plates, offering premium goods for use in industrial, architectural, and electrical settings. Premium-grade raw materials are used in the creation of our copper sheets and plates to guarantee exceptional conductivity, resistance to corrosion, and formability. They satisfy both national and international quality standards and come in a range of sizes, thicknesses, and tempers. We offer dependable, precisely engineered copper products that are supported by prompt service and delivery to meet a variety of industry needs, whether they are utilised in decorative finishes or heavy electrical installations.

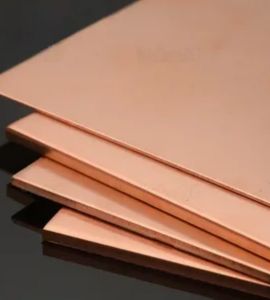

Copper 2B Plate

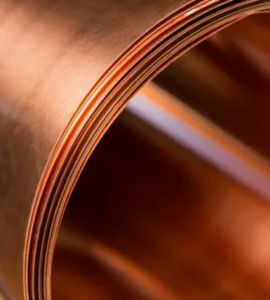

Copper Rolling Sheets

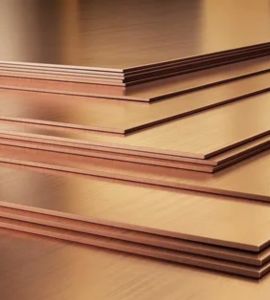

Copper Flat Sheet

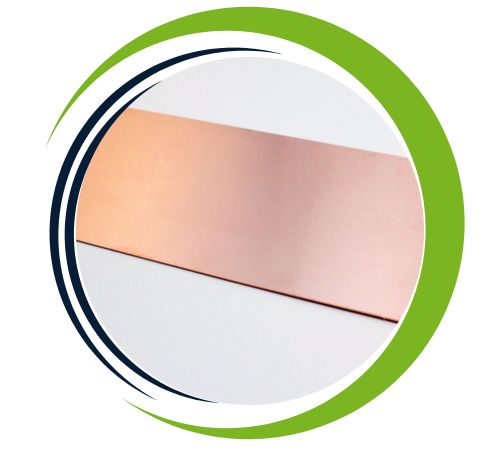

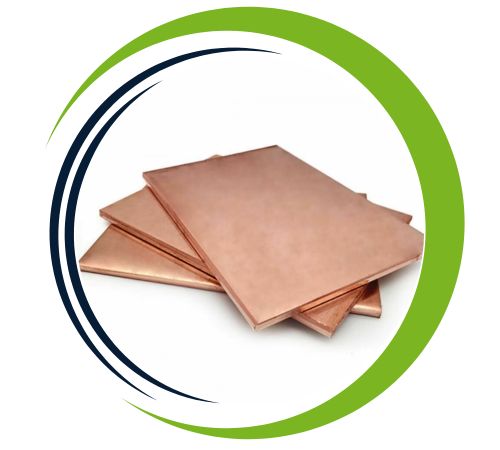

Copper 2B Sheet Manufacturer in Kolkata, Decorative 8K Mirror Copper Sheet Kolkata, Hairline Copper Sheet Supplier in Kolkata, Copper Plate Exporter in India, Copper Sheet Price List in Kolkata, Copper Clad Plate Distributor in Kolkata, Copper Rolling Sheets Supplier in Kolkata, Copper Shim Sheets Distributor in India, Copper Flat Sheet Sizes in mm

C11000 Electrolytic Tough Pitch (ETP) copper, which contains 99.9% pure copper, is commonly used to make copper sheets and plates. They have a high resistance to corrosion and excellent electrical and thermal conductivity. Depending on the temper (soft, half-hard, or hard), the typical tensile strength is between 210 and 250 MPa, the yield strength is between 70 and 100 MPa, and the elongation can reach up to 30%. Copper is appropriate for a variety of high-performance settings because it maintains its mechanical qualities at high temperatures. It is also simple to fabricate and install due to its non-magnetic nature, ductility, and exceptional workability.

Copper Sheet and Plate Specification

ASTM Specification	ASTM B152 UNS C12200, ASME SB152, MSRR, AMS, BS
Specification	MSRR, AMS, BS, ASTM B152 / ASME SB152
ASTM Standard Designations for C10200 OFHC Copper plate and sheet	ASTM B152 C10100 meets ASTM F68 specification.
Length & Sizes	1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, Cut to size available
Thickness	0.1mm to 100 mm Thk
Sheet Width	36” widths – .032”, .0625”, .125”
Plate Width	10-2500mm
AMS	AMS
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper	Annealed, 1/4-Hard, 1/2-Hard, 3/4-Hard, Full Hard, Hard as Rolled, Spring
Condition	Polished on both sides
Finish	Bare/Standard, Hot Tin Dipped, Tin Plated, Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Stock in form of	C101 Copper Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Gauges	.0005″ to .010″ .0005″, .0007″, .001″, .0014″, .002″, .003″, .004″, .005″, .006″, .008″, .010″
Proof Stress	50 to 340 MPa
Tensile Strength	200 to 360 MPa
Hardness	40 to 110 HV
Elongation	50-5 %
Density	8.92 g/cm³
Melting Point	1083 °C
Thermal Expansion	16.9 x10^-6 /K
Modulus of Elasticity	117 GPa
Thermal Conductivity	391.1 W/m.K
Electrical Resistivity	0.0203 x10^-6 Ω .m
Machinability	Average
Workability – Cold	Excellent
Weldability – Gas	Good
Weldability – Arc	Not recommended
Weldability – Resistance	Not recommended
Brazeability	Excellent
Copper profiling	To provide a full profiling service we use numerous profiling methods including: Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting

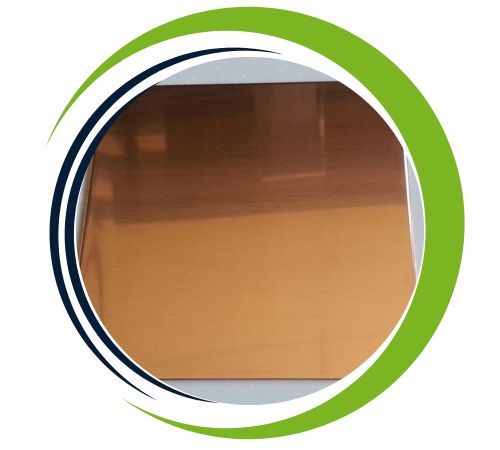

Copper Rolling Plate Distributor in India, Copper Flat Shim Sheet Supplier in Kolkata, Copper Perforated Sheet Weight Chart, Copper Polished Plate Exporter in India, Copper Nickel Sheets Manufacturer in Kolkata, Copper Shim Sheet and Plate Price List in Kolkata, Copper Cold Rolled Sheet Sizes in mm, Copper Hot Rolled Plate Distributor in Kolkata, Copper Sheets and Plates India

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Copper Sheet and Plate Manufacturer and Exporter in Kolkata, India

Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Copper Sheet & Plate Weight and Size Chart

THICKNESS	4’X 2′	2M X 1M	2500MM X 12500MM
Size	Weight per sheet in Kg
0.35	2.37
0.4	2.68	7.14
0.45	2.99	8.04
0.5	3.3	8.93
0.55	3.61	9.8
0.6	3.92	10.72
0.7	4.64	12.5
0.8	5.3	14.29
0.9	6.0	16.07
1.0	6.6	17.86
1.2	7.9	21.43	34
1.4	9.3
1.6	10.6	28.56	45
2.0	13.3	35.72	56
2.5	16.5	44.65	70
3.0	19.9	53.58	84
3.25	21.6	58.05	91
4.0	26.5	71.44	112
4.76	32.3	85.0	133
5.0	33.1	89.3	140
6.0	39.8	107.16	168
6.35	42.2	113.4	177
8.0	54		224
9.525	64		266
10.0			279
12.0		215	335
12.7		227
15.8		283
16.0		268
19.0		340
20.0		358
22.0		393
25.0		447
30.0		536
40.0		715
45.0		804
50.0		893
75.0		1340
100.0		1787
150.0		2680

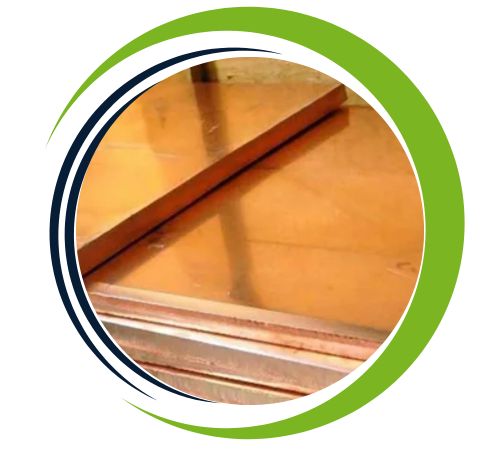

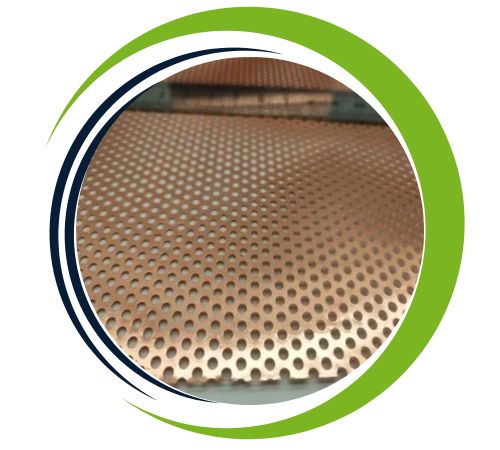

Copper Quarto Plate Dealer in Kolkata, Copper Perforated Plate Supplier in Kolkata, Copper Sheet and Plates in Kolkata, Copper Plates Size Chart, Copper Sheets Price in India, Oxygen-free copper Plate Supplier in Kolkata, Arsenical Copper Sheet Stockist in India, Copper Quarto Plate Exporter in India, Copper Rolling Sheets Stockist in Kolkata, Copper Flat Sheet Supplier in India

Types of Copper Sheet and Plate

Copper Flat Shim Sheets Price in India, Copper Hot Rolled Plates Weight Chart, Copper Sheet and Plates Supplier in Kolkata, Stockist of Copper Cold Rolled Sheets in India, Copper Perforated Sheet Supplier in India, Copper Sheet Price List in Kolkata, Copper Clad Plate Supplier in India, Copper Rolling Plate Exporter in Kolkata, Copper Polished Plate Exporter in India, Copper Quarto Plate Exporter in Kolkata, Copper Sheet and Plate in India

Are Custom Sizes Available for Copper Sheet and Plate?

Yes, we offer custom sizes for Copper Sheet and Plate to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@khushsheetsandplates.co.in

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Copper Sheet and Plate

Because of their unparalleled conductivity, copper sheets and plates are widely used in the electrical industry for bus bars, transformers, switchgear, and cable shielding. Because of their aesthetic appeal and resistance to weather, they are utilised in the construction industry for roofing, cladding, gutters, and decorative elements. Copper plates are used in the HVAC and automotive industries for heat exchangers, gaskets, and radiators. Additionally, they are necessary for chemical processing equipment, marine hardware, and renewable energy sources like solar panels. Copper sheets are also frequently used for both practical and decorative purposes in engraving and arts and crafts projects.
