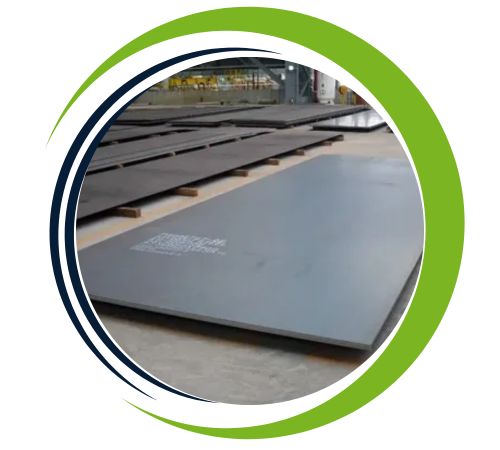

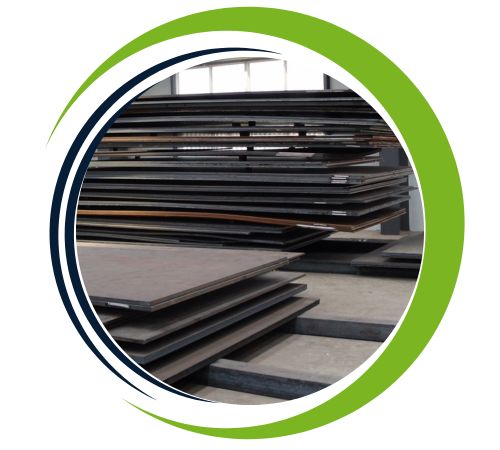

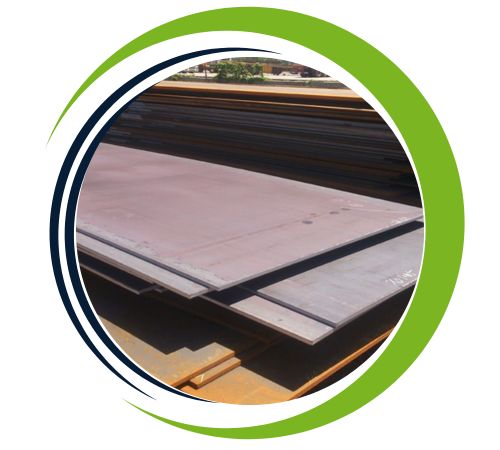

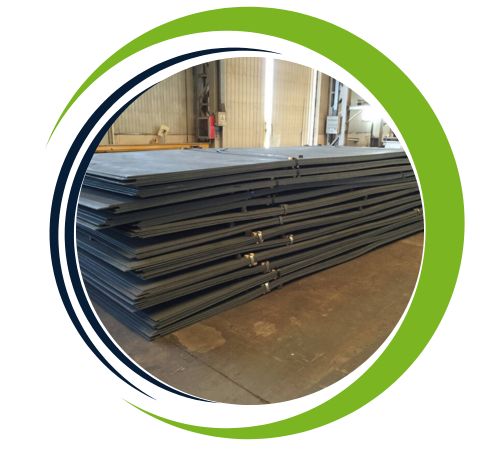

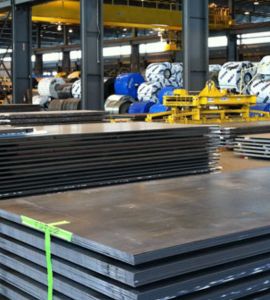

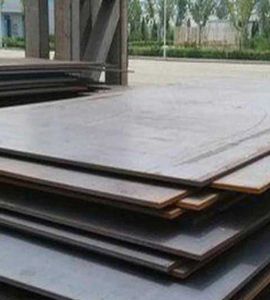

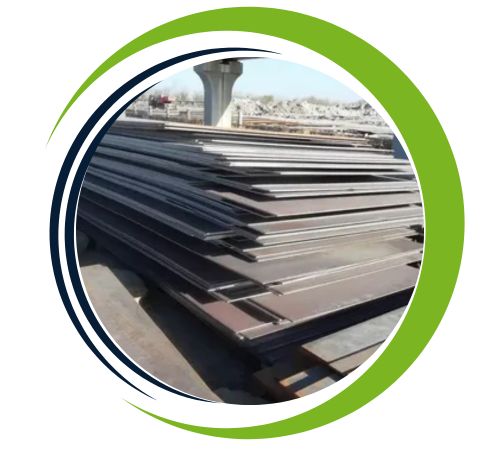

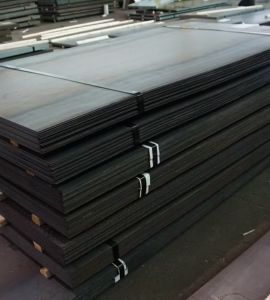

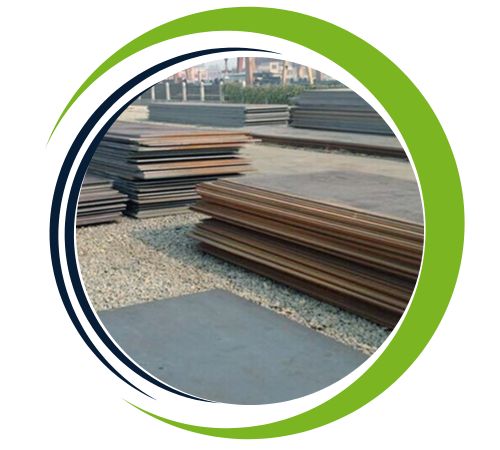

Khush Sheets and Plates is a well-known manufacturer and supplier of EN 9 Sheet and Plates in Kolkata, India. We are known for our quality and precision, offering high-performance carbon steel products that meet the requirements of different engineering and industrial uses. Our EN 9 Sheets and Plates are made by adopting advanced methods and rigorous quality control to achieve durability, strength, and accuracy of dimensions. With a robust distribution network and customer-centric service, Khush Sheets and Plates provides efficient, affordable, and timely steel solutions to customers from automotive, construction, manufacturing, and machinery industries.
EN 9 Sheets and Plates are medium carbon steel items with a composition of about 0.50–0.60% carbon and 0.50–0.80% manganese. The composition imparts high tensile strength and wear resistance to the alloy. The material has a tensile strength of 550–700 MPa and yield strength of about 300 MPa. The material is also good for machining and can be hardened through heat treatment for enhanced performance. EN 9 possesses a Brinell hardness value of 200–250 HB and exhibits good ductility and toughness, and hence is preferred in applications that need high surface strength and structural integrity.
| Thickness | from 3mm up to as thick as 150mm |
|---|---|
| Size | from 2000 x 1000mm up to 4000 x 2000mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | -52° C |
| Process of Manufacturing | Hot-Rolled (HR) |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for EN 9 Sheet and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
EN 9 Sheets and Plates find extensive application in the production of mechanical and automotive parts because they possess high hardness and tensile strength. Some typical uses are shafts, gears, crankshafts, sprockets, spindles, keys, and axles. They find applications in agricultural equipment, forging dies, and machine components that require wear resistance and strength. EN 9 can be used for components undergoing high surface stress or impact. The possibility of heat treatment makes the alloy useful in industrial machinery, construction plant, and heavy-duty engineering structures where durability and performance reliability are extremely important.
