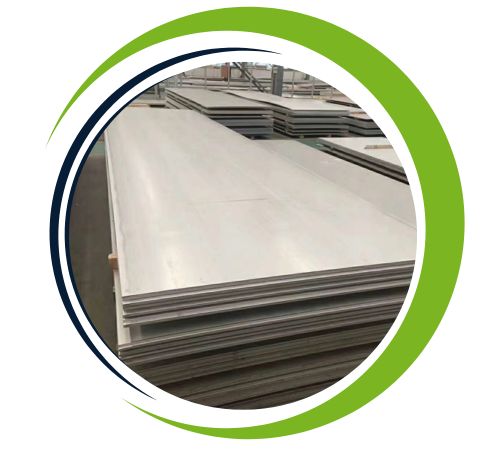

Based in Kolkata, India, Khush Sheets and Plates is a reputable Hastelloy Sheets and Plates manufacturer and supplier. We provide a variety of Hastelloy grades, including C-22, C-276, and X, which are intended for use in harsh chemical and high-temperature environments. We are renowned for producing superior corrosion-resistant alloy products. The chemical processing, marine, and aerospace industries make extensive use of our Hastelloy sheets and plates, which are produced in accordance with strict industry standards. Khush Sheets and Plates provides reliable solutions for demanding industrial applications with a strong emphasis on quality, customisation, and timely service.
Nickel (≥58%), molybdenum (15–17%), and chromium (14.5–16.5%) are the usual elements found in hastelloy sheets and plates. Depending on the grade (e.g., C-276 or C-22), additional elements may include iron, cobalt, and tungsten. These alloys offer outstanding defence against oxidizing/reducing agents, stress corrosion cracking, and pitting. Hastelloy has an elongation of 40–50%, a yield strength of 275–355 MPa, and a tensile strength of 690–785 MPa. It is perfect for harsh industrial conditions because it retains its high strength and resistance to corrosion even in high temperatures and harsh chemical environments.

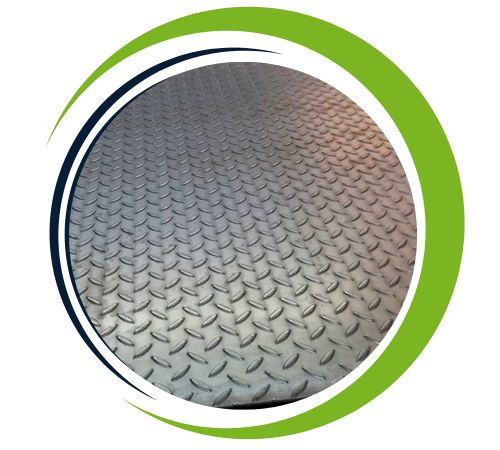

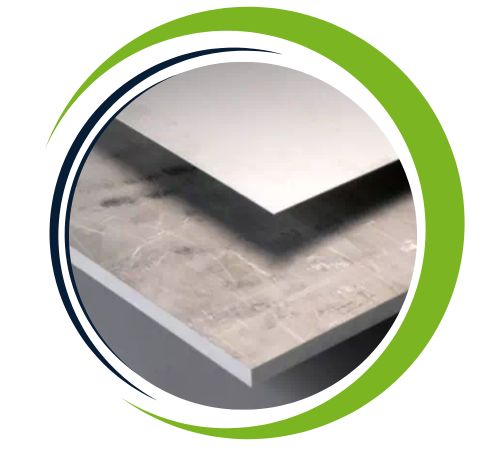

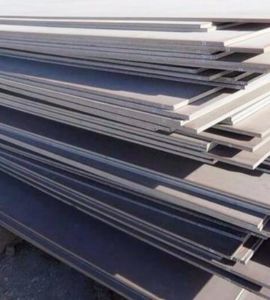

| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grades | C276, C22, B2, B3, X |
| Hastelloy Plate Length | 0-12mm or as required |
| Specification of Hastelloy Plate | ASTM B575 UNS N10276, ASME SB575, MSRR, BS, AMS 4544 sheet |
| ASTM B575 Alloy C276 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |

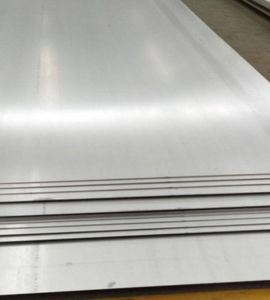

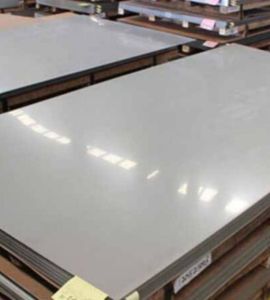

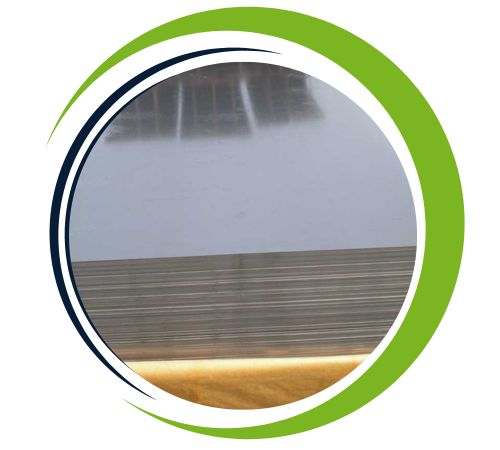

| Hastelloy Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C276 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |

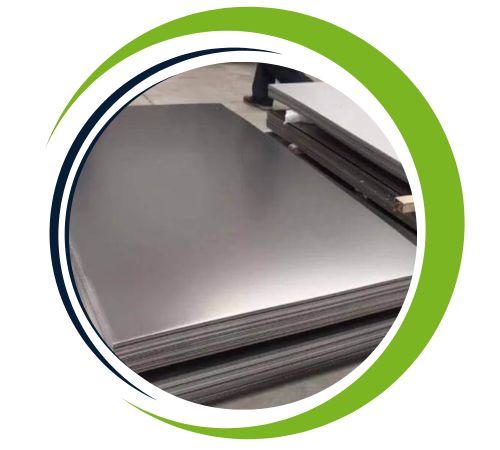

| Polished, brushed plate | 0.5–4.0 | 1524 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
Chemical processing facilities frequently use hastelloy sheets and plates to handle nitric, sulphuric, and hydrochloric acids. Because of their exceptional resistance to corrosion, they are crucial in the construction of heat exchangers, reactor vessels, evaporators, and scrubbers. They are utilised in parts exposed to brine and saltwater in the maritime sector. Additionally, hastelloy is used in the nuclear, pharmaceutical, and aerospace sectors for applications requiring durability under high pressure and temperature. It is a preferred material in harsh and extremely corrosive operating environments because of its resistance to cracking, crevice corrosion, and oxidising agents.
