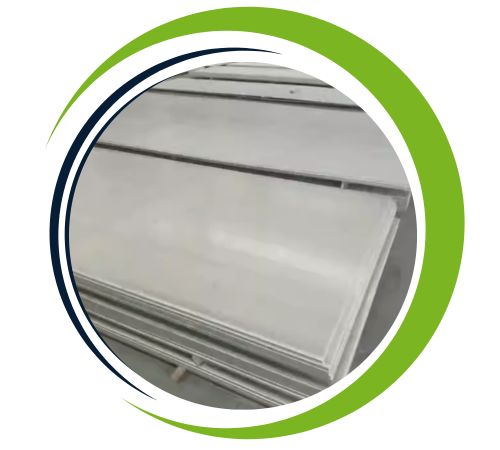

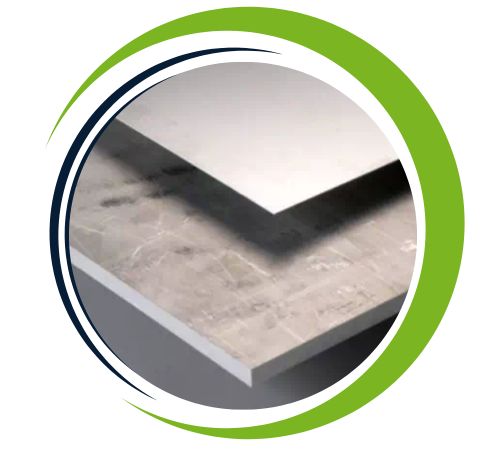

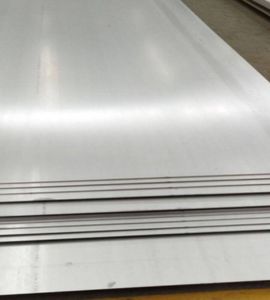

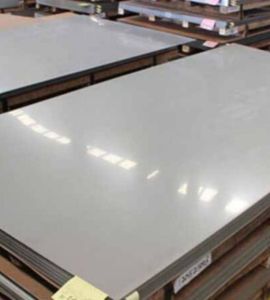

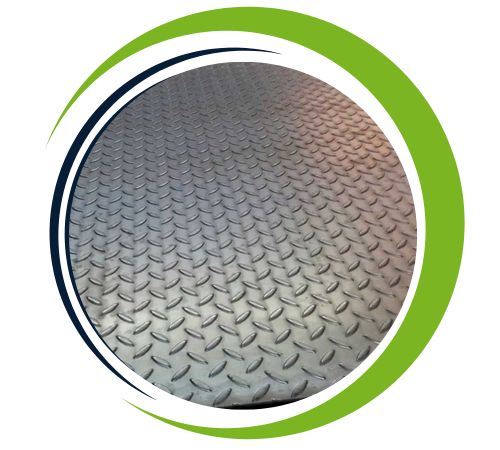

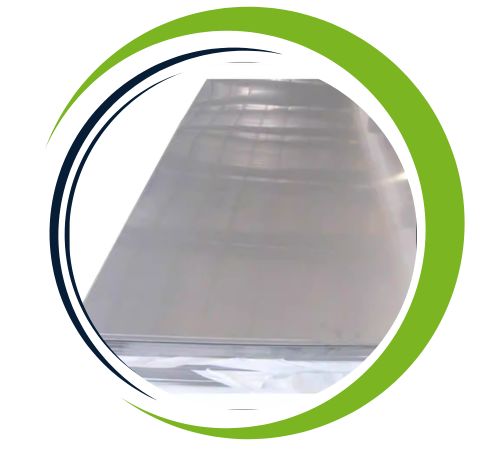

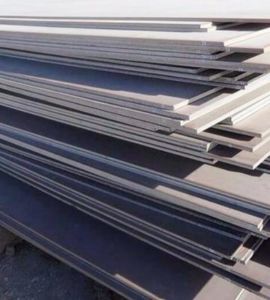

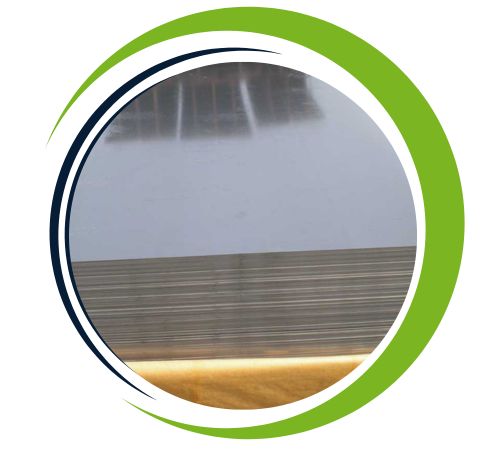

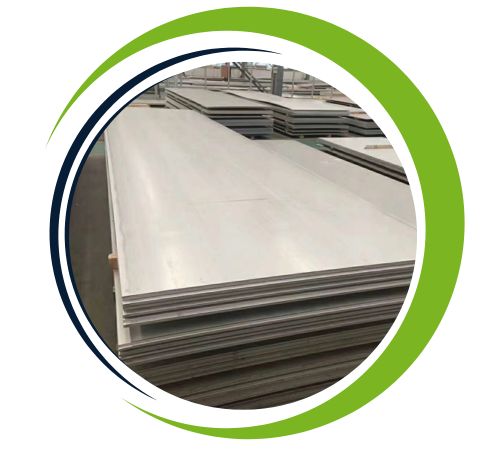

Khush Sheets and Plates is a well-known manufacturer and exporter of top-grade Haynes 25 / L605 Sheets and Plates in Kolkata, India. With extensive experience in the metal sector, we provide superior products that exceed international standards of performance and reliability. Our dedication to quality, accuracy, and customer happiness makes us a reliable partner for various industries. We provide a complete variety of Haynes 25 / L605 Sheets and Plates in different dimensions and specifications to meet your individual project requirements. Low prices, timely delivery, and excellent product quality are our signatures.
Haynes 25 / L605 Sheets and Plates are cobalt-based superalloys with around 52% cobalt, 20% chromium, 15% tungsten, and 10% nickel, along with trace levels of iron, manganese, silicon, and carbon. They provide good strength and toughness, even at high temperatures. Typical yield and tensile strengths are about 120 ksi (827 MPa), yield strength about 50 ksi (345 MPa), and elongation about 30%. The alloy possesses excellent oxidation and corrosion resistance up to 980°C (1800°F) with stability and longevity under hard operating conditions.
| Standard Specification : | AMS 5759, AMS 5537 |
| Dimensions : | AMS, AMS, API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat T |
| Grade | C% | Si≤ % | Mn≤ % | P≤ % | S≤ % | Cr% | Ni% | Co% | Fe % | W % |
| Haynes 25 / L605 | 0.05-0.15 | 0.40 | 2.00 | 0.02 | 0.015 | 19.0-21.0 | 9.00-11.0 | Rest | ≤ 3.00 | 14.0-16.0 |
| Grade | 0.2% Yield strength Rp ≥ N/mm² | Tensile strength Rm N/mm² | Elongation A5 | Resistant on air up to°C | Modulus of elasticity kN/mm² |
| Haynes 25 / L605 | 345 | 830-1130 | 25 | 1090 | 225 |
| STANDARD | Material No | EN Designation | UNS | Alloy |
| Haynes 25 / L605 | 2.4964 | CoCr20W15Ni | R30605 | 25 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Haynes 25 (L605) sheets and plates provide exceptional high-temperature strength and outstanding resistance to oxidation, carburization, and sulfidation, making them ideal for harsh environments They wear well and resist corrosion ensure durability, especially in chemical applications and aerospace applications . Excellent mechanical strength is maintained up to 1800°F (980°C) and allows for high formability and weldability. The cobalt-based structure of the compound provides durability and creep resistance, supporting reliability under extreme stresses. These features make Haynes 25 paper and plate the preferred choice for high-performance applications in hostile environments.
| Density | Lb/in3 | 0.327 |
| g/cm3 | 9.07 | |
| Melting Point | oF | 2425-2570 |
| oC | 1330-1410 | |
| Specific Heat | Btu/lb-oF | 0.096 |
| J/kg-oC | 403 | |
| Expansion Coefficient | 25-100oC | 12.8 |
| 70-200oF | 7.1 | |
| Thermal Conductivity | W/m-oC | 10.5 |
| BTU-in/hr-ft2–oF | 72 | |
| Electrical Resistivity | µohm-cm | 88.6 |
| µohm-in | 34.9 |
Haynes 25 / L605 Plates and Sheets find extensive application in aerospace, gas turbine engines, power generation, nuclear reactors, and industrial furnace components owing to their high-temperature strength and high-temperature oxidation resistance. They are best suited for fabrication of combustion chambers, afterburners, turbine blades, and liners. They also have applications in the chemical process industry where resistance to hostile media is paramount. Their flexibility, durability, and capacity to withstand severe mechanical and thermal stress render them imperative in mission-critical applications necessitating high material performance.
