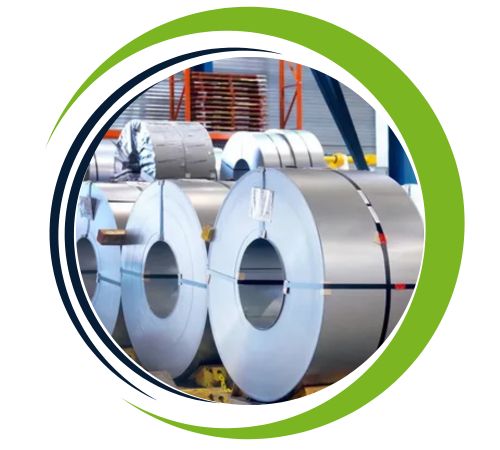

Khush Sheets and Plates is a reliable manufacturer and distributor of high-quality Incoloy 800/800H/800HT Coils and Slitting Coils in Kolkata, India. Known for its superior product quality, precise engineering, and customer-focused services, the organization serves various industrial requirements both globally and domestically. With state-of-the-art manufacturing facilities and robust quality control measures, Khush Sheets and Plates supplies corrosion-resistant, high-performance coils ideal for challenging conditions. The company has a strong emphasis on timely delivery, competitive pricing, and innovation, which makes it a reputed partner for industries such as chemical processing, power generation, petrochemicals, and more.
Incoloy 800/800H/800HT Coils contain mainly Nickel (30–35%), Chromium (19–23%), and Iron (39.5% min), along with small contents of Aluminum, Titanium, and Carbon. The mechanical properties are high tensile strength (~520 MPa), yield strength (~205 MPa), and very good elongation (~35%). These alloys have excellent high-temperature oxidation, carburization, and sulfidation resistance. They have continued strength and structural integrity at even extended exposures above 600°C. Due to their higher metallurgical stability and mechanical integrity, they are ideal for severe operating conditions calling for steady performance and long life.
| Specification | ASTM B409 / ASME SB409 |
|---|---|
| Thickness | Plate 0125″ to 5.00″ / Sheets 008″ to .0125″ |
| Sheet / Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheet / Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Plate / Sheets Size | 15NB to 150NB In |
| Tempers | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Coils Thickness | 0.3 mm to 120 mm |
| Coils Length | AS PER CUSTOMER’S REQUIREMENT |
| Form | Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4959 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Steel Coil | Size (mm) | Weight per Coil (Kg) | Size(mm) | Weight per Coil (Kg) |
|---|---|---|---|---|
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 2.0 | 136.0 | 3000 x 1500 x 5.0 | 191.0 |
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 3.0 | 204.0 | 4000 x 2000 x 5.0 | 340.0 |
| Incoloy 800/800H/800HT Coil | 2500 x 1250 x 4.0 | 106.0 | 2500 x 1250 x 6.0 | 159.0 |
| Incoloy 800/800H/800HT Coil | 3000 x 1500 x 4.0 | 153.0 | 3000 x 1500 x 6.0 | 230.0 |
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 4.0 | 272.0 | 4000 x 2000 x 6.0 | 408.0 |
| Incoloy 800/800H/800HT Coil | 2500 x 1250 x 5.0 | 133.0 |
Incoloy 800, 800H and 800HT coils and offer many advantages, such as exceptional resistance to oxidation, carburization and high temperature corrosion, making them ideal for harsh environments Their high nickel content ensures high thermal stability and efficiency , while the chromium content gives it better resistance to oxidation Incoloy 800H and The 800HTs also have enhanced creep and fracture strength due to high carbon and titanium content. These alloys exhibit excellent weldability, excellent long-term performance and durability, making them ideal for use in applications such as power generation, chemical processing and heat treatment

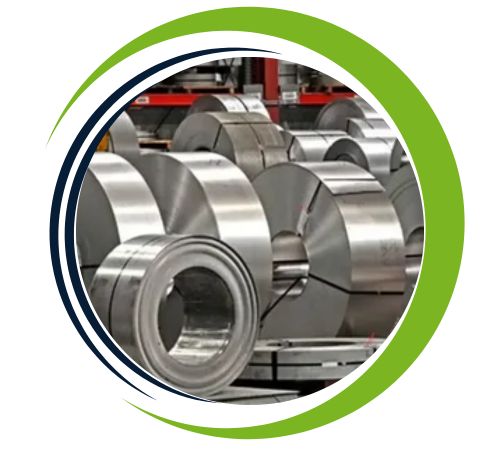

Incoloy 800/800H/800HT Slitting Coils and Coils are extensively used in industries calling for excellent corrosion resistance and high-temperature strength. Key uses are for heat exchangers, furnace parts, chemical processing equipment, petrochemical plants, power generation boiler components, and tubing for superheaters. They also apply to nuclear steam generators, pressure vessels, and heat-treating equipment. In the oil and gas sector, the coils offer outstanding durability under sour gas conditions. The formability and weldability of these coils make them best suited for intricate fabrication requirements. Overall, these broad-spectrum alloys provide long service life and consistent performance in stressful and corrosive industrial environments.
