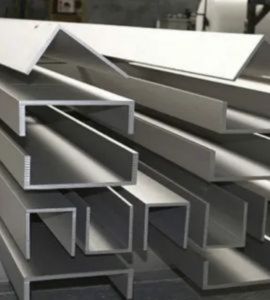

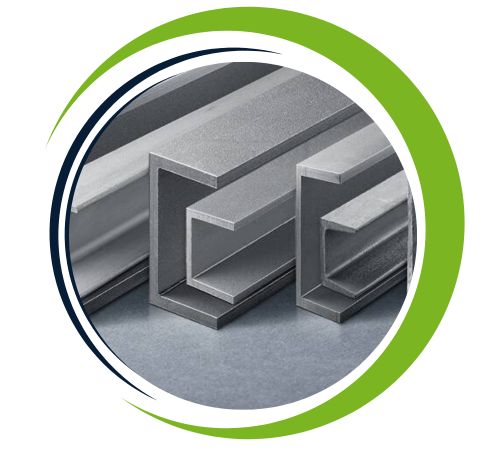

Based in Kolkata, India, Khush Sheets and Plates is a well-known producer and supplier of Incoloy 825 Channels. We provide high-end alloy channels made of Incoloy 825, a nickel-iron-chromium alloy that is well-known for its exceptional resistance to corrosion in hot, acidic conditions. Our Incoloy 825 channels are extensively utilised in the oil and gas, marine, chemical processing, and pollution control industries and are precisely engineered to satisfy international standards. Khush Sheets and Plates is a dependable supplier of high-performance alloy products in India and abroad thanks to our adjustable sizes, quick delivery, and constant quality.
Nickel (38–46%), iron (22% min), chromium (19.5–23.5%), molybdenum (2.5–3.5%), copper (1.5–3%), and titanium (0.6–1.2%) make up Incoloy 825 Channels. Excellent resistance to acid attack and stress corrosion cracking is offered by these elements. The alloy has a yield strength of about 220–310 MPa, a tensile strength of 550–690 MPa, and an elongation of up to 30–45%. Incoloy 825 is appropriate for structural applications subjected to heat, chemicals, and varying pressures because it retains its mechanical integrity in both oxidising and reducing environments.
Specifications : ASTM B408 / ASME SB408
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Incoloy 825 Channel to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Chemical processing equipment that handles sulphuric acid, phosphoric acid, and chloride-containing solutions frequently uses Incoloy 825 Channels. They are perfect for waste treatment systems, pollution control scrubbers, piping brackets, and heat exchanger supports. They offer structural reinforcement for both offshore and subsea applications in the maritime sector. They are used in the oil and gas industry for platform supports, valve parts and tubing hangers that are subjected to extreme conditions. Incoloy 825 Channels are also used in nuclear fuel reprocessing and acid production facilities because of their exceptional resistance to intergranular corrosion and pitting.
