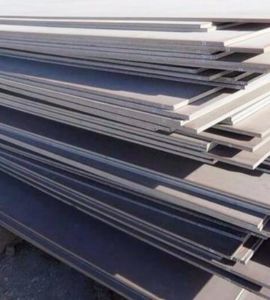

Khush Sheets and Plates is a reliable producer and supplier of Incoloy 825 Sheets and Plates in Kolkata, India. We are specialized in providing high-quality products that match international standards and fulfill various industrial requirements. Our Incoloy 825 Sheets and Plates are famous due to their superior corrosion resistance, strength, and durability. With a robust distribution network and focus on customer satisfaction, Khush Sheets and Plates has established itself as a reliable and quality-driven player in the business of specialty metal products in India and international markets.
Incoloy 825 Sheets and Plates consist of Nickel (38-46%), Iron (22% min), Chromium (19.5-23.5%), Molybdenum (2.5-3.5%), Copper (1.5-3%), and Titanium (0.6-1.2%). The alloy possesses great corrosion resistance in severe environments. The mechanical properties are Tensile Strength of 690 MPa (100 ksi), Yield Strength of 310 MPa (45 ksi), and Elongation of 30%. The material is stable over a broad temperature range, providing superior mechanical properties and resistance to stress corrosion cracking.
| Specifications: | ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443 |
| Thickness: | 4 mm To 100 mm |
| Length: | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required |
| Width: | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required |
| Grade | 800/ 800H/ 800HT/ 825 |
| Application | Building industry,architectural decoration,elevators,building doors,panels and so on. |
| Standard: | ASTM，AISI，JIS，GB， DIN，EN |
| Surface: | BA，2B，NO.1，NO.4，4K，HL，8K |
| Certification: | ISO, SGS，BV |
| Technique: | Cold Rolled Hot Rolled |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
|---|---|---|---|---|---|---|---|---|
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| Incoloy 825 Plates STOCKED SIZES | ||
|---|---|---|
| SIZE | ALLOY 825 | SIZE |
| .125″ | X | 3.18mm |
| .134″ | 3.40mm | |
| .156″ | X | 3.96mm |
| .187″ | X | 4.75mm |
| .250″ | X | 6.35mm |
| .312″ | X | 7.92mm |
| .375″ | X | 9.53mm |
| .500″ | X | 12.7mm |
| .625″ | X | 15.9mm |
| .750″ | X | 19.1mm |
| .875″ | 22.2mm | |
| 1″ | X | 25.4mm |
| 1.125″ | 28.6mm | |
| 1.250″ | X | 31.8mm |
| 1.500″ | X | 38.1mm |
| 1.750″ | X | 44.5mm |
| 2″ | X | 50.8mm |
| 2.500″ | X | 63.5mm |
| 3″ | 76.2mm | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Incoloy 825 sheets and plates have many advantages, making them ideal for complex applications. Anti-corrosion properties, especially in acid and sulfur environments, ensure exceptional durability. The high strength and excellent fatigue resistance of the compound ensures reliability under stress. Incoloy 825 maintains high thermal integrity and provides excellent weldability. It also provides outstanding compression resistance against stress corrosion cracking and pitting. These features make Incoloy 825 sheets and plates ideal for use in the pharmaceutical, marine environment, aerospace and nuclear industries, providing unparalleled performance and longevity
Incoloy 825 Sheets and Plates are extensively utilized in applications that demand exceptional corrosion resistance and mechanical strength. They are used extensively in chemical processing, pollution control equipment, acid manufacture, and marine conditions. Their capability to resist extreme chemical and high-temperature conditions makes them perfect for heat exchangers, tanks, valves, and pressure vessels. They are used in nuclear fuel reprocessing, pharmaceutical equipment, and oil & gas applications too. The flexibility of Incoloy 825 makes it an exemplary choice for challenging engineering applications in a number of industries.
