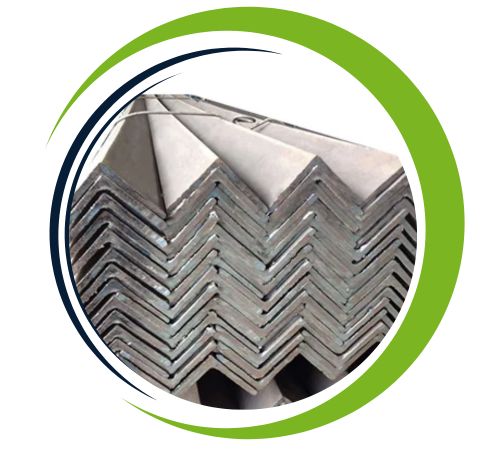

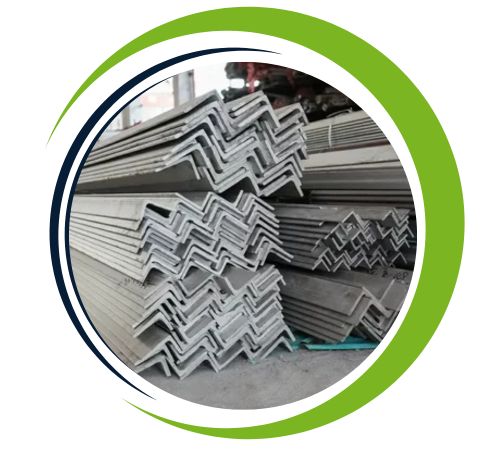

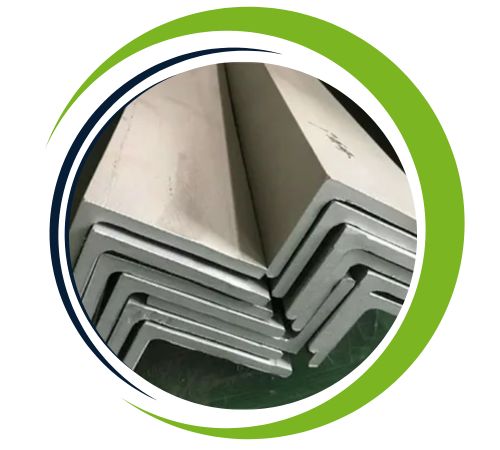

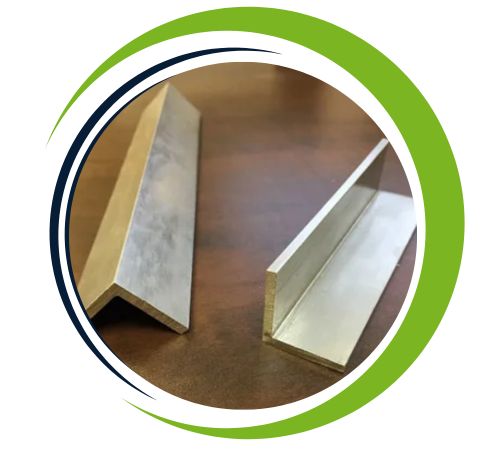

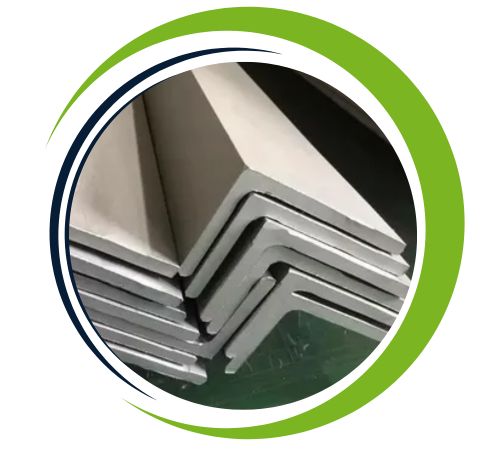

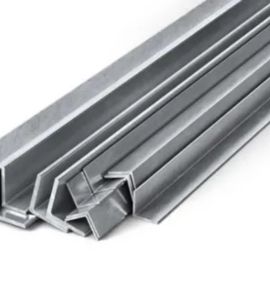

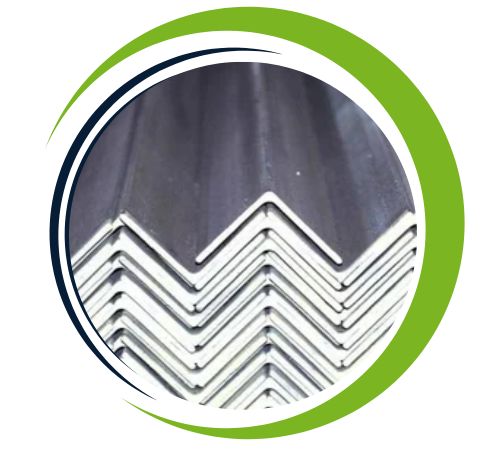

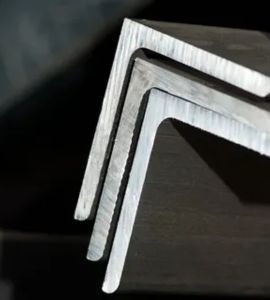

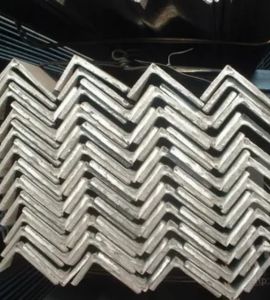

In Kolkata, India, Khush Sheets and Plates is a well-known producer and supplier of Incoloy Angles. Our speciality is offering premium Incoloy products, which are renowned for their remarkable resistance to corrosion, oxidation, and carburisation in hot and acidic conditions. Our Incoloy angles are designed to satisfy the exacting requirements of a range of industrial domains, such as power generation, chemical processing, and marine engineering. Khush Sheets and Plates guarantees long-lasting and high-performing products to satisfy both domestic and international customer requirements across a variety of crucial applications by adhering to international standards, accurate fabrication, and prompt delivery.
Depending on the grade (e.g., Incoloy 800, 825), nickel (30–45%), chromium (19–25%), and iron make up the majority of Incoloy Angles, with minor additions of molybdenum, copper, titanium, and aluminium. With tensile strengths of 550–750 MPa and yield strengths of 220–350 MPa, these alloys provide exceptional mechanical strength even at high temperatures. Under corrosive and thermally cycling conditions, incoloy retains its integrity. Additionally, it has better resistance to creep and stress-rupture. Because of these characteristics, Incoloy Angles can be used in high-stress and structural settings in corrosive industrial settings.
Specifications : ASTM B425 / ASME SB425
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy Angle | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy Angle | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy angle offers several key advantages, making it ideal for high-performance applications. Its excellent resistance to oxidation, corrosion, and high-temperature environments ensures long-lasting durability in harsh conditions. The alloy’s superior mechanical properties, including high tensile strength and creep resistance, make it suitable for demanding industries such as aerospace, power generation, and chemical processing. Incoloy angle also provides good weldability and formability, enabling ease of fabrication. Additionally, its resistance to sulfuric and hydrochloric acids, along with its ability to withstand extreme thermal conditions, enhances its versatility and reliability in complex engineering projects.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy Angle to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Chemical plants, oil refineries, and power plants all make extensive use of Incoloy Angles, especially for parts that are exposed to phosphoric, nitric, and sulphuric acids. They are perfect for furnace hardware, heat exchangers, and reactor vessels because of their great strength and resistance to corrosion. They are employed in the maritime sector for frameworks exposed to seawater and offshore structures. The oxidation and scaling resistance of incoloy makes it suitable for use in thermal processing and aerospace equipment. These angles are also used in nuclear fuel reprocessing and pollution control systems. They are crucial for long-term structural support in harsh environments because of their resilience and thermal stability.
