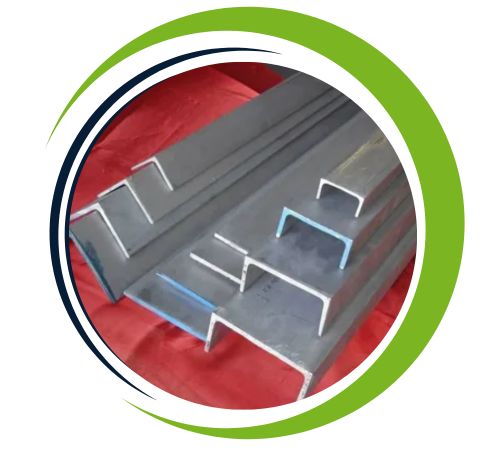

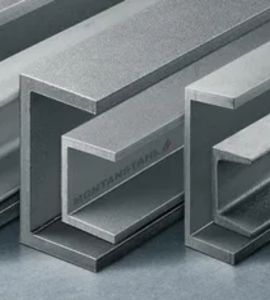

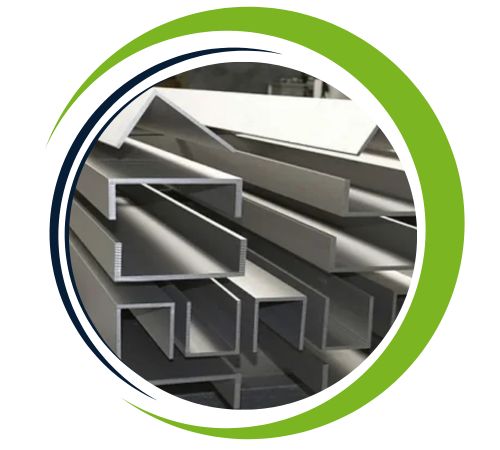

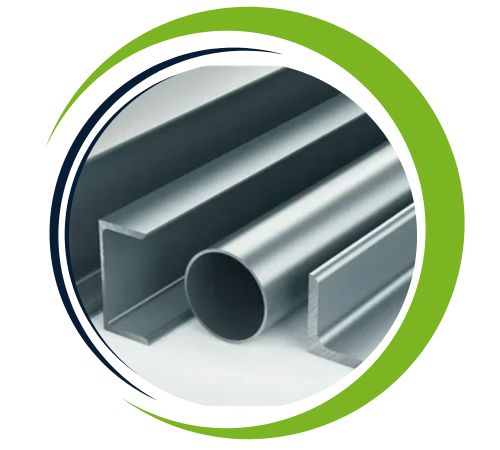

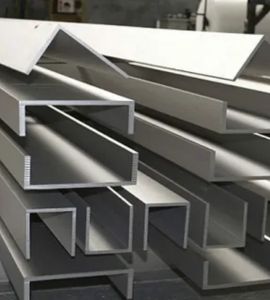

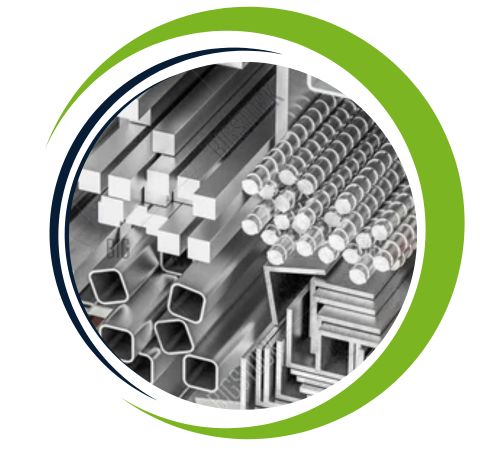

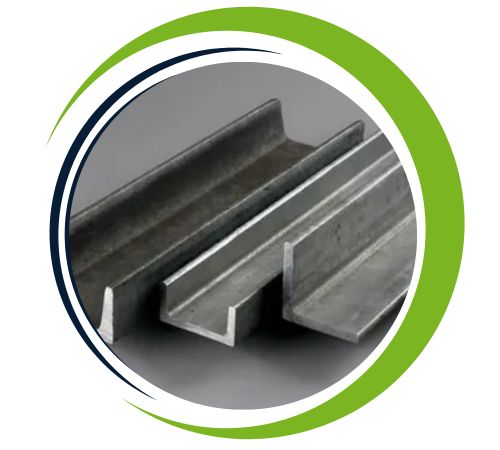

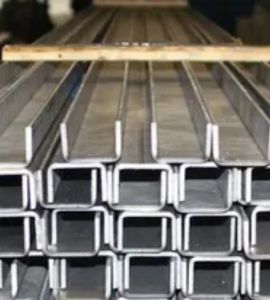

Khush Sheets and Plates is a top-notch producer and supplier of high-quality Inconel 600 Channels in Kolkata, India. Established for our dedication to quality and precision, we supply corrosion-resistant and high-performance alloy products engineered for critical use. Inconel 600 Channels are engineered to function in hostile environments with the provision of exceptional resistance to high temperature, oxidation, and corrosive media. Our products are made according to global standards and come in different dimensions to satisfy multiple industrial needs. We cater to chemical processing, marine, power generation, and aerospace industries with assured performance, prompt delivery, and customer-centric service.
Inconel 600 is an alloy of nickel-chromium-iron consisting of about 72% nickel, 14–17% chromium, and 6–10% iron with minor amounts of manganese, carbon, sulfur, and silicon. It has outstanding mechanical strength and durability at high temperatures. The alloy has a tensile strength of about 655 MPa and a yield strength of about 310 MPa. Inconel 600 Channels also possess outstanding resistance against oxidation, carburization, and chloride stress corrosion cracking. Due to its excellent formability, weldability, and thermal conductivity, the alloy is ideal for use in cryogenic and high-heat conditions in demanding industrial processes.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | UNS | DIN | JIS | BS | GOST | AFNOR | EN |
| Alloy 600 | N06600 | 2.4816 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Alloy 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strengt | Yield Strength (0.2%Offset) | Elongation |
| Alloy 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 600 Channel offers numerous advantages, making it highly sought after in demanding industries. Its exceptional resistance to oxidation and corrosion ensures durability in high-temperature and chemically aggressive environments. The alloy maintains strength and structural integrity under extreme thermal conditions, offering excellent creep-rupture properties. Its versatility allows it to perform effectively in a wide range of applications, including chemical processing, aerospace, and marine industries. Additionally, Inconel 600 resists stress-corrosion cracking and chloride-ion-induced pitting, ensuring long-term performance in challenging environments, thus reducing maintenance and replacement costs.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 600 Channel to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Inconel 600 Channels find extensive applications in industries that need resistance against corrosion and heat. In chemical and petrochemical processing, they are suitable for reactor vessels, heat exchanger parts, and piping systems subjected to corrosive and high-temperature conditions. Inconel 600 also finds application in the aerospace industry in engine parts and exhaust ducts and in marine conditions as structural supports and corrosion-resistant structures. They find applications in steam generators and furnace components in power plants, and in the food processing and nuclear industries for uses demanding thermal stability and cleanliness. They are designed to provide long-term maintenance-free operation.
