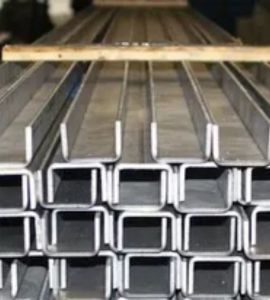

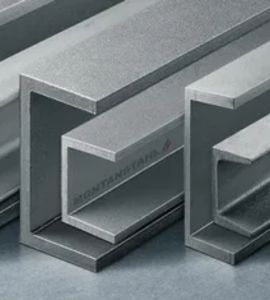

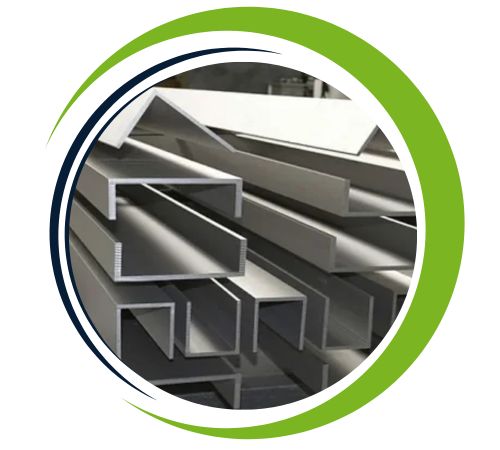

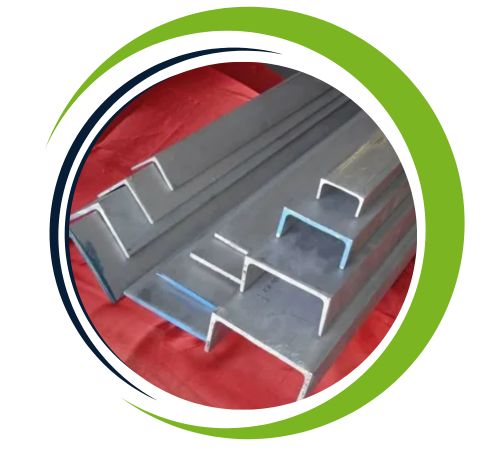

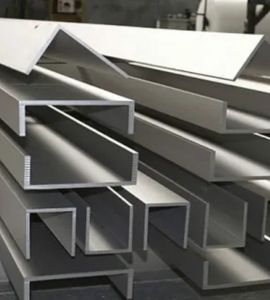

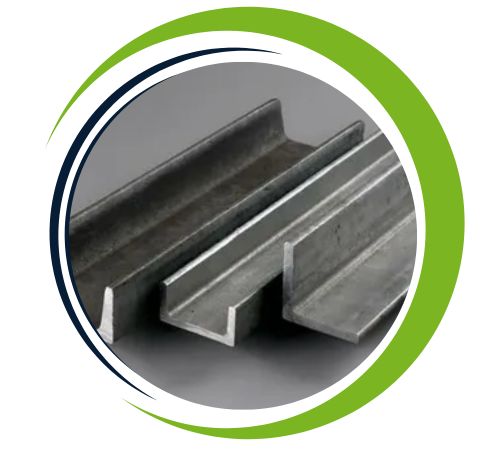

Based in Kolkata, India, Khush Sheets and Plates is a well-known producer and supplier of Inconel 601 Channels. Our speciality is providing high-end structural components made of nickel-chromium alloy that are resistant to corrosion and extremely high temperatures. Inconel 601 Channels are designed to withstand high temperatures and oxidising conditions while still performing well. Our channels are perfect for use in thermal, petrochemical, and aerospace applications and come in a variety of sizes and finishes that satisfy international standards. Our goal at Khush Sheets and Plates is to provide industries in India and around the world with high-quality materials, prompt service, and tailored solutions.
Nickel (58–63%), chromium (21–25%), and iron make up the majority of Inconel 601, with aluminium (1–1.7%) added for increased oxidation resistance. With a tensile strength of 600–800 MPa and a yield strength of 240–400 MPa, this alloy demonstrates exceptional mechanical strength and thermal stability. Inconel 601 is resistant to scaling, carburisation, and spalling and retains its integrity at temperatures as high as 1200°C. It is appropriate for both structural and high-temperature industrial applications due to its exceptional weldability, workability, and high mechanical strength and creep resistance.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Inconel 601 | 0.10 max | 1 max | 0.50 max | 1 max | 0.15 min | balance | – | 58.0-63.0 | 21.0–25.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 601 Channels offer several advantages, making them ideal for high-temperature and corrosive environments. Their exceptional oxidation and carburization resistance at temperatures up to 2200°F (1200°C) ensure long-lasting performance in extreme conditions. The alloy’s high tensile strength, excellent fatigue and thermal-fatigue strength, and resistance to various corrosive media, including sulfur compounds, provide reliable durability. Inconel 601 also demonstrates good weldability and formability, making it versatile for various applications. These properties make it suitable for industries like aerospace, chemical processing, and power generation, where materials are subjected to high heat and stress.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 601 Channel to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
High-temperature applications like heat-treating baskets, furnace hardware, and thermal processing systems frequently use Inconel 601 Channels. They are used in steam superheaters, combustor parts, and catalytic reformers in the petrochemical and power generation sectors. They are also perfect for radiant tubes, insulation supports, and exhaust ducts due to their exceptional resistance to oxidation and corrosion. Inconel 601 is also utilised in aerospace for turbine exhaust systems and jet engine parts. It is a material of choice for critical infrastructure and equipment because of its resistance to spalling and scaling under thermal cycling, which guarantees dependable performance in harsh environments.
