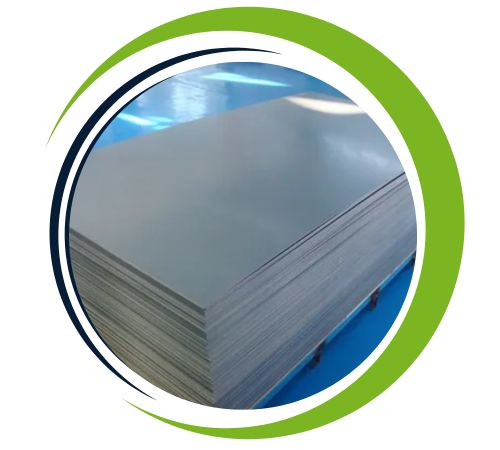

Khush Sheets and Plates is a renowned manufacturer and provider of high-grade Inconel 617 Sheets and Plates in Kolkata, India. Our quality focus and innovation have helped us meet the various industrial requirements both domestically and globally. Our Inconel 617 products exhibit outstanding resistance to oxidation, carburization, and high-temperature conditions. Supported by advanced manufacturing plants and a group of qualified personnel, Khush Sheets and Plates is committed to delivering precision-engineered products that adhere to rigorous industry standards. We take pride in providing solutions that prove to be reliable in industries such as aerospace, chemical processing, and power generation.
Nickel-chromium-cobalt-molybdenum Inconel 617 Sheets and Plates are known for their outstanding mechanical strength and resistance to oxidation. The usual composition consists of about Ni 44.5-62%, Cr 20-24%, Co 10-15%, Mo 8-10%, Fe ≤3%, and traces of Al and Ti. The alloy possesses tensile strength of 760 MPa, yield strength of 345 MPa, and good creep-rupture characteristics at high temperatures. With a melting range of 1332-1380°C and greater metallurgical stability, Inconel 617 offers superior endurance in harsh operating conditions.
Standards : ASTM B168 / ASME SB168, SAE AMS 5888, SAE AMS 5889
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Form : Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| Element | Yield Strength | Tensile Strength | Elongation % | Reduction of Area | Hardness, BHN | ||
| ksi | MPa | ksi | MPa | ||||
| Inconel 617 | 50.9 | 351 | 109.5 | 755 | 58 | – | 173 |
| Grade Inconel 617 | Ni | Cr | Fe | Mo | Co | Mn | Cu | Al | Ti | Si | C | S | P |
| MIN | 44.2 | 20.0 | – | 8.0 | 10.0 | – | – | 0.8 | – | – | – | – | – |
| MAX | 56.0 | 24.0 | 3.0 | 10.0 | 15.0 | 0.5 | 0.5 | 1.5 | 0.6 | 0.5 | 0.15 | 0.015 | 0.015 |
| STANDARD | UNS | WNR. |
| Alloy 617 | N06617 | 2.4663 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 617 Sheets and Plates offer numerous advantages, making them a preferred choice for high-performance applications. They exhibit excellent resistance to oxidation and carburization, even at temperatures exceeding 1000°C. Their superior mechanical strength and exceptional creep resistance ensure durability under extreme pressure and heat. The alloy’s corrosion resistance extends to acidic and high-moisture environments, enhancing its versatility. Additionally, its thermal stability and weldability make it easy to fabricate into complex structures. These properties make Inconel 617 ideal for aerospace, chemical processing, power generation, and gas turbine components.
Yes, we offer custom sizes for Inconel 617 Sheets and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
| Thickness | Plate Weight per Unit Area | Density |
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Inconel 617 Plates and Sheets are widely applied in high-temperature strength as well as corrosion-resistant industries. These are perfectly suited for gas turbine parts, duct, combustion cans, and heat exchangers. Due to the resistance of the alloy against severe thermal environments, it is applicable in chemical processing equipment, furnace parts, and nuclear reactors. Moreover, Inconel 617 is preferred in aerospace and naval engineering for mission-critical components subjected to harsh mechanical and thermal stresses. Its optimum blend of strength, metallurgical stability, and resistance against corrosion warrants long-term performance in a broad spectrum of demanding industrial applications.
