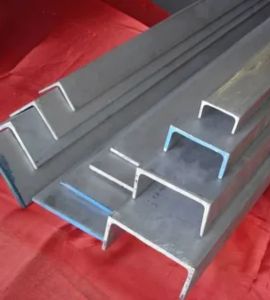

Based in Kolkata, India, Khush Sheets and Plates is a well-known producer and supplier of Inconel Angle, renowned for providing high-end nickel alloy goods. With exceptional resistance to corrosion and high temperatures, our Inconel Angles are designed to satisfy exacting industry standards. We supply a range of industries, including the chemical, marine, and aerospace sectors, with cutting-edge facilities and a dedication to accuracy. Our staff guarantees prompt delivery and technical assistance, which makes us a reliable partner for customers both domestically and internationally. Quality, dependability, and client satisfaction are our main concerns at Khush Sheets and Plates.
The main component of Inconel Angles is a nickel-chromium alloy, usually Inconel 600 or 625, which contains nickel (≥58%), chromium (14–23%), and iron, with trace amounts of molybdenum, niobium, and carbon. These alloys have high elongation (≥30%), yield strength (~310 MPa), and excellent tensile strength (~690 MPa). In acidic and high-pressure settings, they provide exceptional resistance to oxidation and corrosion while maintaining mechanical stability at extreme temperatures. They are appropriate for demanding applications under mechanical and thermal stress due to their structural integrity and weldability.
Specifications : / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Inconel Angle to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Industries that require resistance to high temperatures, pressures, and corrosion frequently use Inconel angles. They are utilised for engine parts and structural supports in the aerospace industry. These angles are used in reactors, heat exchangers, and pipelines in the chemical and petrochemical industries because they are resistant to oxidising agents and acids. Because of their enduring durability, they are also used in nuclear reactors, power plants, and marine environments. Inconel angles are also utilised in exhaust systems, turbine blades and furnace hardware, which makes them crucial for high-performance, high-reliability industrial frameworks.
