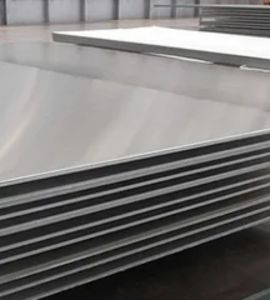

In Kolkata, India, Khush Sheets and Plates is a well-known producer and supplier of Inconel sheets and plates. We provide premium-grade alloy sheets and plates made of nickel and chromium that are made to resist corrosion and high temperatures. Our Inconel products are widely trusted in industries like power generation, chemical processing, aerospace, and marine because they meet international standards. Khush Sheets and Plates provides precision-engineered solutions that are suited to the most demanding industrial applications in both domestic and international markets, all while maintaining a strong commitment to quality, on-time delivery, and customer satisfaction.
Nickel (≥58%), chromium (14–23%), and iron (5–21%) make up the majority of Inconel alloys (such as Inconel 600, 625, and 718), with trace amounts of molybdenum, niobium, and titanium depending on the grade. These alloys have elongation of up to 45%, yield strength of 240–1100 MPa, and tensile strength of 550–1375 MPa. At temperatures as high as 1000°C, Inconel plates and sheets retain their strength and ability to withstand corrosion. They are perfect for harsh mechanical and environmental conditions because of their high fatigue strength, oxidation resistance, and thermal stability.
Specifications :ASTM B168, ASME SB168, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13
Standards : ASTM, ASME and API
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Length : 12500 mm

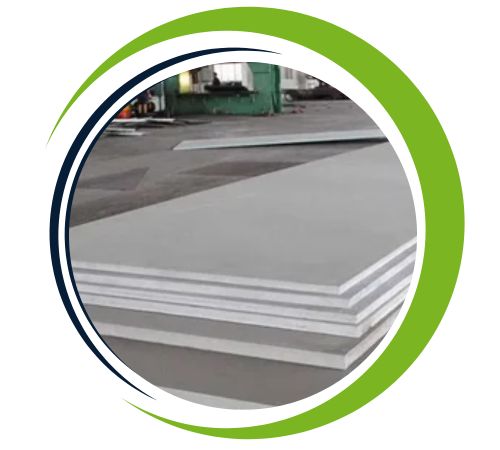

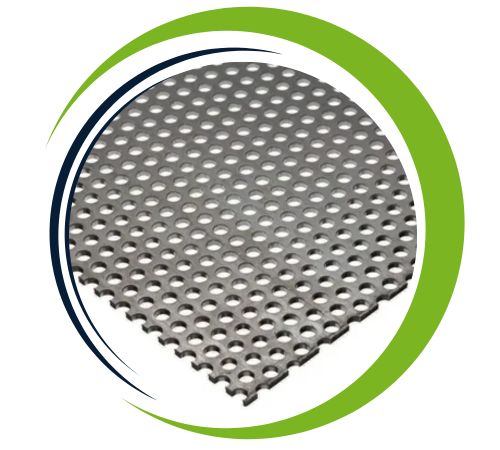

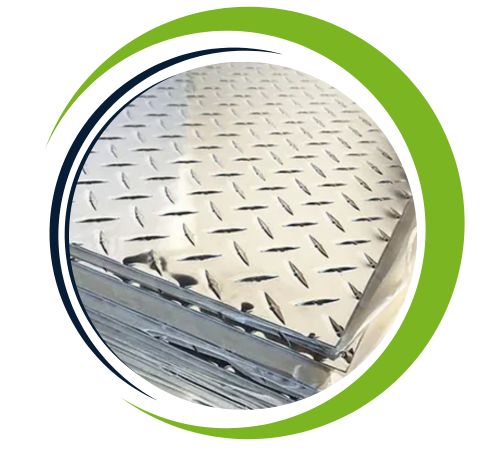

Form : Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)
| Density | 8.4 g/cm³ | 8.1g/cm³ | 8.4 g/cm³ | 8.2 g/cm³ |
| Melting Range,℃ | 1370-1425 ℃ | 1320-1370℃ | 1290-1350℃ | 1260-1340 ℃ |
| Elongation % | 30min. | 30 min. | 30 min. | 30 min. |
| Tensile strength – Mpa | 550min. | 650min. | 760min. | 965min |
| Yield strength – Mpa | 240min. | 300min. | 345min. | 550 min. |
| Brinell hardness (HB) | ≤195 | ≤220 | ≤220 | ≤363 |
| Alloy 600 | Inconel 600 | N06600 | 2.4816 | 8.42 |
| Alloy 601 | Inconel 601 | N06601 | 2.4851 | 8.2 |
| Alloy 625 | Inconel 625 | N06625 | 2.4856 | 8.44 |
| Alloy 718 | Inconel 718 | N07718 | 2.4668 | 8.19 |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Inconel Sheets and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
|---|---|---|---|
| 3/16 inches | Inconel | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Inconel | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Inconel | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Inconel | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Inconel | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Inconel | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Inconel | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Inconel | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Inconel | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Inconel | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Inconel | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Inconel | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Inconel | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Inconel | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Inconel | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Inconel | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
In industries where high-temperature strength and corrosion resistance are essential, such as aerospace, nuclear reactors, chemical processing, and marine engineering, Inconel sheets and plates are widely used. They are used in engine parts, exhaust systems, and turbine blades in aerospace. In the power and chemical industries, Inconel is also used in furnace components, reactor vessels, and heat exchangers. It is appropriate for thermal processing and industrial furnaces due to its resistance to oxidation and carburisation. These sheets and plates are also utilised in desalination plants and offshore oil rigs, guaranteeing long service life even in the most hostile conditions.
