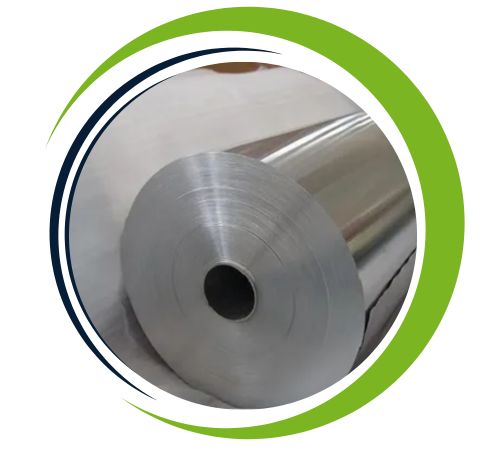

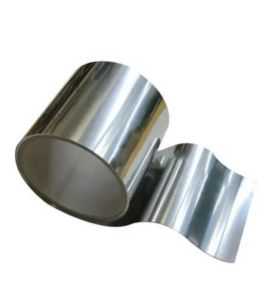

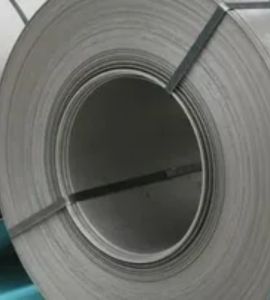

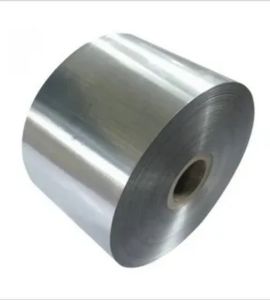

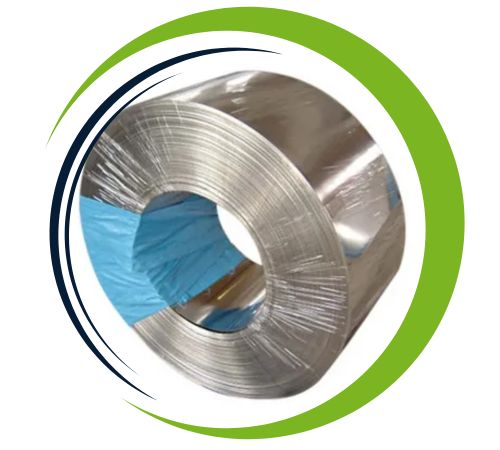

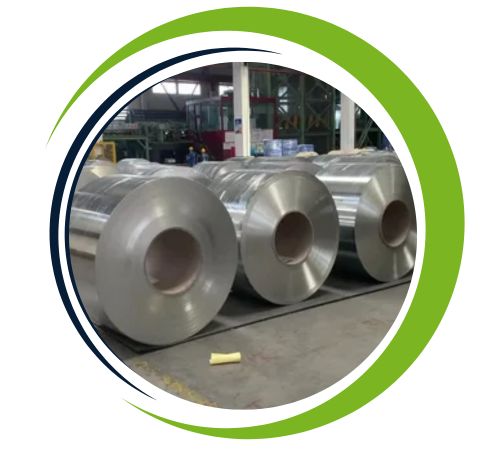

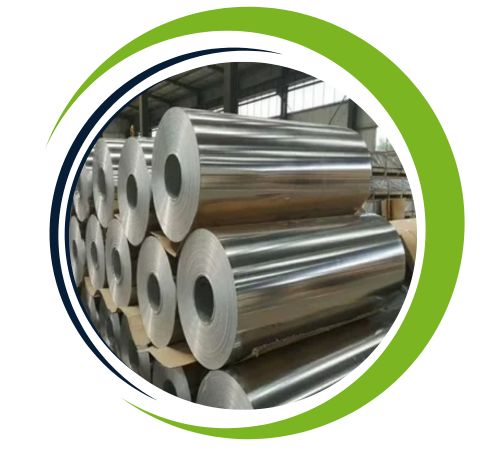

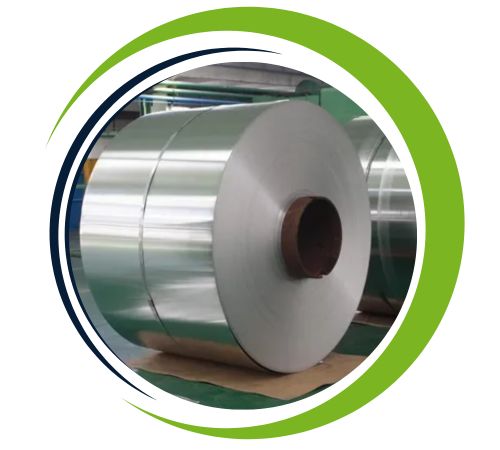

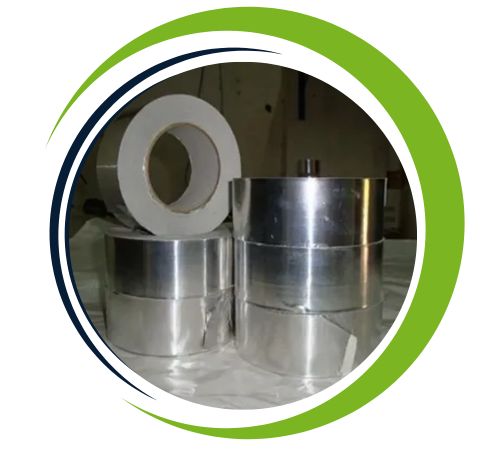

Kovar Foil is an iron-nickel-cobalt alloy, which is usually around 29% nickel, 17% cobalt, and the rest iron, with small trace amounts of elements such as manganese and silicon. It has a very low coefficient of thermal expansion, being very close to that of borosilicate glass and ceramics. The tensile strength of Kovar is around 517 MPa and it has good yield strength, as well as very good dimensional stability with thermal cycling. It also provides excellent weldability and machinability. Such mechanical properties make it perfect for hermetic sealing in electronic and aerospace components.
Kovar Foil is an iron-nickel-cobalt alloy, which is usually around 29% nickel, 17% cobalt, and the rest iron, with small trace amounts of elements such as manganese and silicon. It has a very low coefficient of thermal expansion, being very close to that of borosilicate glass and ceramics. The tensile strength of Kovar is around 517 MPa and it has good yield strength, as well as very good dimensional stability with thermal cycling. It also provides excellent weldability and machinability. Such mechanical properties make it perfect for hermetic sealing in electronic and aerospace components.
| Standard Specification : | UNS K94610 | Werkstoff Nr 1.3981 | DIN 17745 | ASTM F15 | AMS 7726 | AFNOR NF A54-301 | S.E.W 385 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Chemical Analysis | |
| Cr | 20 nom |
| Ni | 35 nom |
| Mo | 10 nom |
| Co | 35 nom |
| Material | Condition | Yield Strength (0.1% Offset) | Tensile Strength | Elongation % | ||
|---|---|---|---|---|---|---|
| psi | MPa | psi | MPa | |||
| Alloy K Kovar | Annealed | 49,000 | 340 | 75,000 | 520 | 42 |
| ASTM | UNS | Workstoff | AMS | DIN | AFNOR | S.E.W |
| F15 | K94610 | 1.3981 | 7726 | 17745 | NF A54-301 | 385 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kovar Foil is used extensively in applications involving a hermetic seal between ceramics and glass or metal because of its thermal expansion compatibility. It is used extensively in the electronics sector in the production of vacuum tubes, transistors, diodes, and integrated circuits. In aerospace and defense, Kovar Foil is utilized in hermetic packages and sensor enclosures. It is also extremely important in medical devices, where sealed, precise environments are required. Additionally, Kovar is used in telecommunications equipment and high-frequency applications. Its unique properties make it indispensable for maintaining structural integrity and reliability in extreme environments.
