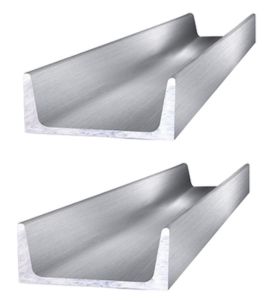

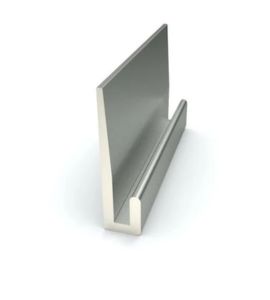

Based in Kolkata, India, Khush Sheets and Plates is a well-known producer and supplier of Monel 400 Channels. Our speciality is providing premium nickel-copper alloy channels with exceptional mechanical strength, durability, and resistance to corrosion. In harsh industrial settings, especially those with seawater and acidic conditions, Monel 400 Channels are perfect. Our products are precision-engineered for use in the oil and gas, marine, and chemical processing industries, and they meet international quality standards. Khush Sheets and Plates guarantees reliable solutions for structural and industrial applications with affordable prices, personalised sizing, and fast delivery.
Nickel (63% min) and copper (28–34%) make up the majority of Monel 400, with trace amounts of iron, manganese, silicon, and carbon. Outstanding corrosion resistance is provided by this solid-solution alloy, particularly in chemical and marine environments. It offers a yield strength of 170–345 MPa, a tensile strength of 550–620 MPa, and an elongation of 30–40%. High ductility, toughness, and resistance to stress corrosion cracking are all displayed by Monel 400 Channels. The alloy is ideal for demanding structural applications under harsh service conditions because of its mechanical qualities, which hold true over a broad temperature range.
| Specifications | : | ASTM B164 / ASME B164 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Monel 400 Channel | : | 40mm*20mm~300mm*300mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |

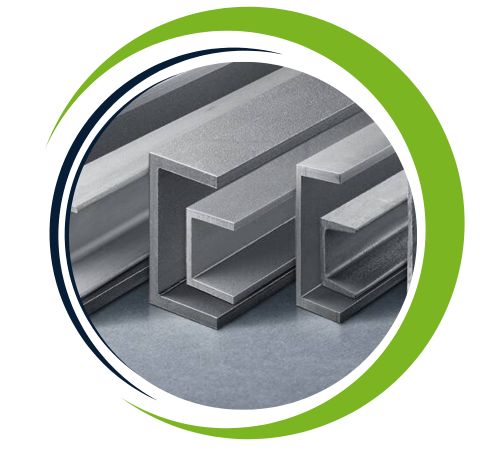

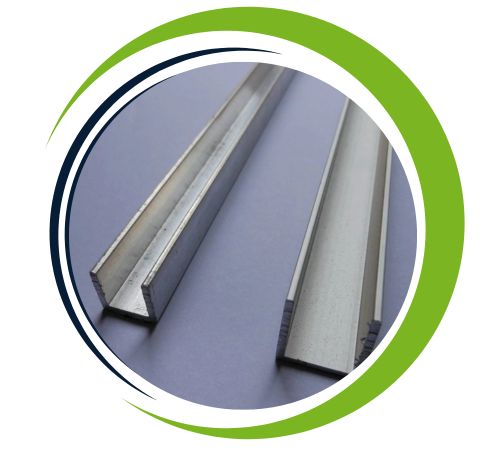

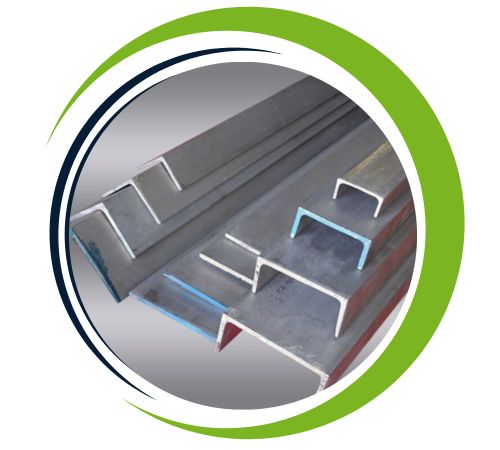

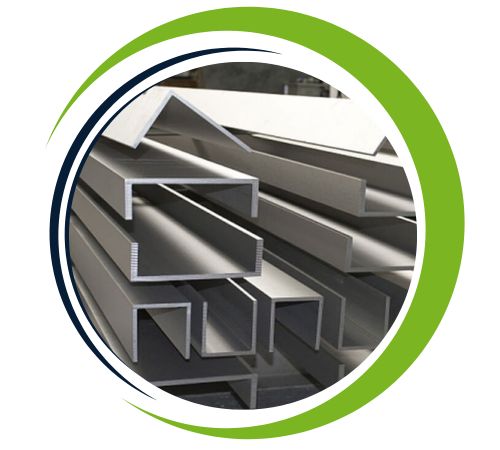

| Type | : | C Channel, U Channel, Channels |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.00 – 34.00 | 2.50 max | 63.00 min | 0.024 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40% |
Yes, we offer custom sizes for Monel 400 Channel to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | MATERIAL NO. | US | HE | GOST | BS | AFNOR | IN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | MNJMc 28-2.5-1.5 | THAT 13 | NO-30M | NiCu30Fe |

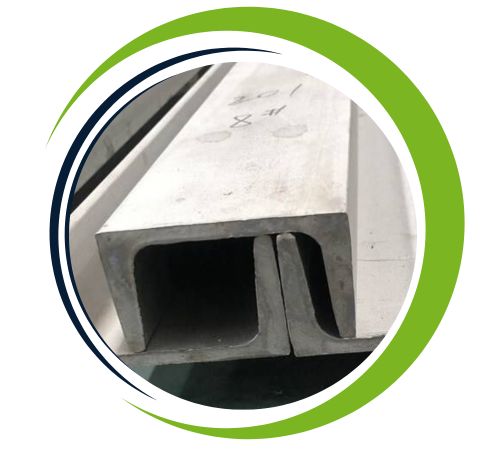

Industries that demand exceptional corrosion resistance and structural strength make extensive use of Monel 400 Channels. They are used in seawater piping systems, offshore structures, and shipbuilding in the maritime sector. They are used in the chemical processing industry for frameworks, storage tanks, and vessels that deal with alkaline and acidic solutions. Monel 400 Channels are perfect for pipeline brackets, valve housing and platform supports in the oil and gas sector. Because of their non-magnetic characteristics, they can also be used in medical instruments, aerospace assemblies, and electronic equipment, providing stability and longevity in extremely corrosive environments.
