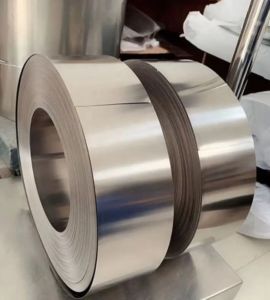

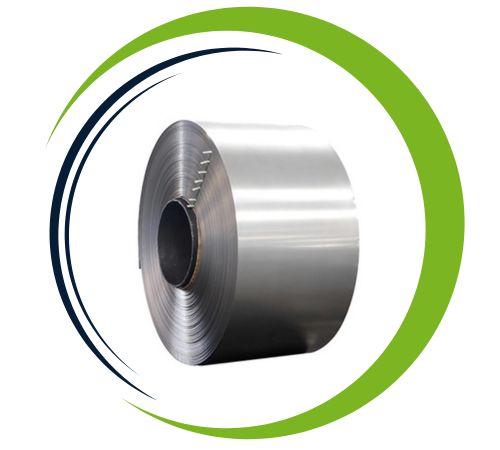

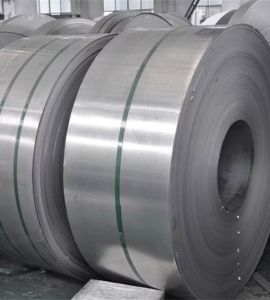

Based in Kolkata, India, Khush Sheets and Plates is a reputable producer and supplier of Monel 400 coils and slitting coils. We offer premium nickel-copper alloy products designed to perform exceptionally well in harsh and maritime conditions. Monel 400 is well known for its exceptional strength and ductility, as well as its resistance to acids, alkalis, and seawater. At Khush Sheets and Plates, we guarantee accurate fabrication and slitting in accordance with international standards. We provide customised solutions with an emphasis on quality, dependability, and on-time delivery, catering to sectors like chemical processing, marine, and oil and gas.
Nickel (63% min) and copper (28–34%) make up the majority of Monel 400, a solid solution alloy, with trace amounts of iron, manganese, carbon, and silicon. With a tensile strength of approximately 550–620 MPa, yield strength of approximately 170–345 MPa, and elongation of 30–40%, it provides exceptional mechanical qualities and corrosion resistance. Over a broad temperature range, the alloy maintains its strength and durability. For cold working, welding, and fabrication, Monel 400 coils and slitting coils are perfect because they are dependable and long-lasting even under demanding and variable operating conditions.
Specifications : ASTM B127 / ASME SB127
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

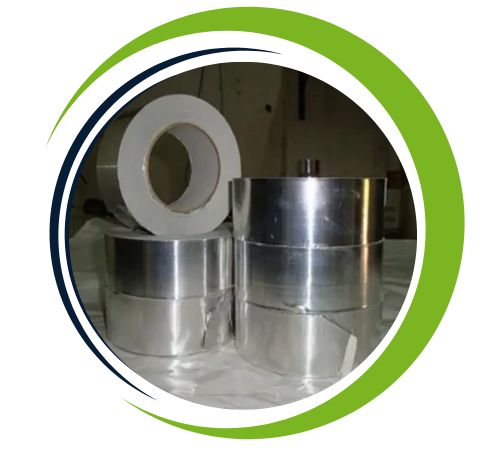

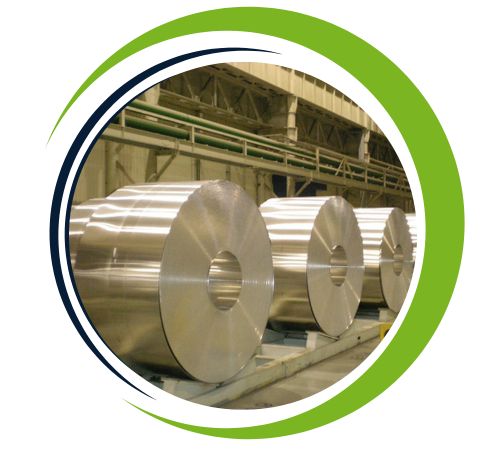

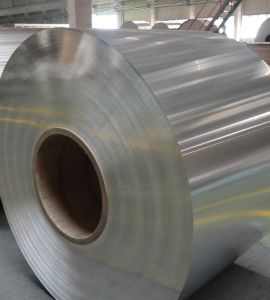

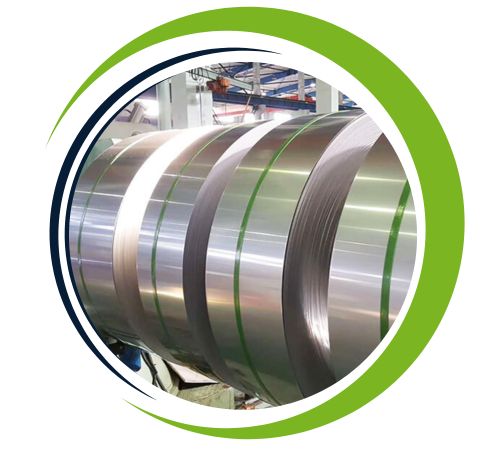

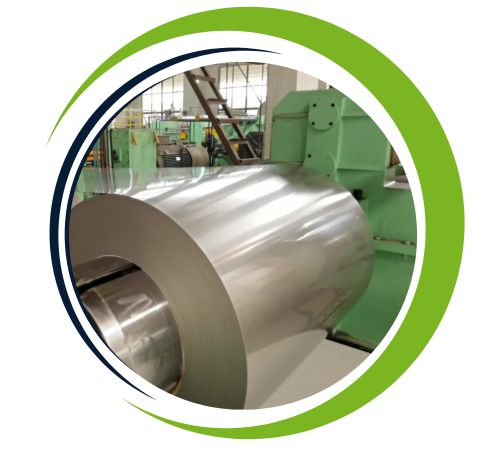

Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

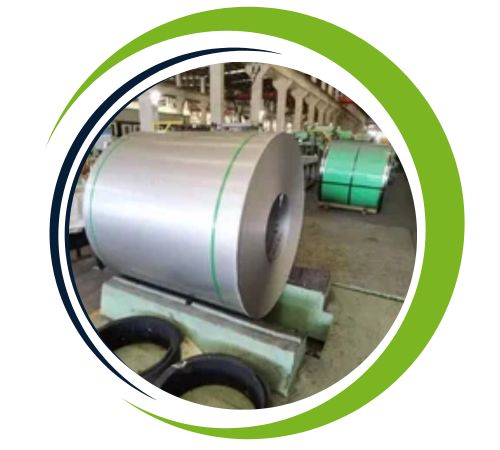

Form : Plain Coils, Shim Coils, Strip
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Because of their exceptional resistance to corrosive chemicals and saltwater, Monel 400 coils and slitting coils are widely used in heat exchanger systems, chemical and hydrocarbon processing, and marine engineering. They are perfect for high-stress applications such as cladding plates, fasteners, valves, and pump shafts. Monel 400 is used in storage tanks and pipelines that handle aggressive substances in the oil and gas sector. Because of its strength, stability, and non-magnetic qualities, which make it appropriate for precision parts and corrosive service conditions, it is also utilised in power generation, aerospace, and medical equipment.
