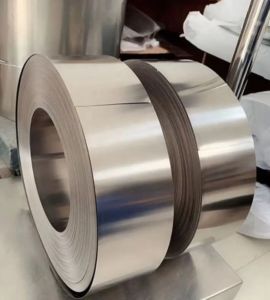

Khush Sheets and Plates is a well-established manufacturer and supplier of high-quality Monel K500 Foils in Kolkata, India. We deal in supplying corrosion-resistant and high-strength Monel K500 Foils appropriate for challenging industrial applications. Our foils are highly recognized for their accurate dimensions, consistent performance, and international quality standards compliance. With emphasis on precision engineering and customer satisfaction, Khush Sheets and Plates provides services to a broad array of industries such as marine, aerospace, oil & gas, and chemical processing industry. We provide timely delivery, competitive rates, and top-grade foils to cater to the ever-changing needs of customers.
Monel K500 Foils consist mainly of nickel (63%) and copper (30%), with minor additions of aluminum (2.3–3.15%) and titanium (0.35–0.85%) for added strength. These foils have a tensile strength of around 110–140 ksi and yield strength of 75–110 ksi, with good fatigue and corrosion resistance, particularly in seawater and chemical applications. They are also available with hardness up to 35 Rockwell C and have a stability over a broad spectrum of temperatures, which makes them suitable for high-pressure applications as well as high-temperature applications.
| Standards | ASTM B127 / ASME SB127 |
| Thickness | 0.3 – 10.0mm & AS PER CUSTOMER’S REQUIREMENT |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm & AS PER CUSTOMER’S REQUIREMENT. |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm & AS PER CUSTOMER’S REQUIREMENT. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard AS PER CUSTOMER’S REQUIREMENT. |
| Test Certificate | Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test. |
| Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled (HR), Cold rolled (CR), SATIN (Met with Plastic Coated) etc. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | GOST | BS | EN |
| Monel k500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 Foils find extensive applications in naval engineering for parts like shafts, propellers, and pump components owing to their high resistance to corrosion by seawater. They find application in the oil and gas sector in tools, valves, and other important components exposed to corrosive media and high pressure. Aerospace industries use these foils in structural and fastener uses for their strength-to-weight benefit. Also, Monel K500 Foils are used in chemical processing, heat exchangers, and springs where strength, non-magnetic behavior, and corrosion resistance are essential for long-term, consistent performance in harsh operating conditions.
