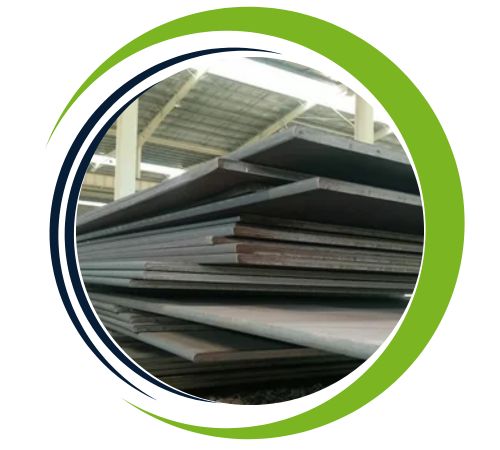

Khush Sheets and Plates is a prominent Kolkata, India-based manufacturer and supplier of NACE MR 0103/0175 HIC Boiler Sheets and Plates. Committed to providing utmost quality, we serve an extensive range of industries looking for corrosion-resistant and high-performance materials. Our sophisticated manufacturing techniques and rigorous quality controls guarantee that our plates and sheets conform to NACE MR 0103/0175’s exacting requirements, ensuring they are suitable for use in severe, sour service conditions. We take pride in punctual delivery, tailored solutions, and attentive customer support, making us a go-to partner in the industry.
NACE MR 0103/0175 HIC Boiler Plates and Sheets are made mainly of carbon steel with the optimal content of carbon (≤0.20%), manganese (1.00–1.50%), silicon (≤0.50%), sulfur (≤0.005%), and phosphorus (≤0.020%) to provide improved HIC resistance. Mechanical properties are tensile strength of 485–620 MPa, yield strength ≥275 MPa, and elongation ≥21%. The plates are subjected to rigorous hydrogen-induced cracking (HIC) testing to guarantee excellent performance in sour environments. Adequate toughness and impact strength at low temperatures render them appropriate for high-pressure and high-temperature uses.
Grade : ASME SA 516 GR.70N Boiler and Pressure Vessel Steel Plates
Width : 1000mm-4500mm
Thickness : 5mm-150mm
Length : 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : 52° C
Tempering : Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications : Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.
Process of Manufacturing : Hot-Rolled (HR)
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
NACE MR 0103/0175 HIC Boiler Sheets and Plates offer exceptional resistance to hydrogen-induced cracking (HIC), making them ideal for high-sulfur environments. They provide superior corrosion resistance, especially in acidic and sulfide-rich conditions, ensuring long-term durability and reliability. These materials also exhibit excellent mechanical properties, such as high tensile strength and toughness, making them suitable for demanding applications in oil and gas, chemical processing, and power generation industries. Their resistance to stress corrosion cracking ensures enhanced performance and longevity in harsh environments.
NACE MR 0103/0175 HIC Boiler Plates and Sheets are extensively used in processes requiring resistance against hydrogen-induced cracking. Major applications are pressure vessels, heat exchangers, and storage tanks in oil & gas, petrochemical, and chemical process industries. They are also used in refinery sour service applications, corrosive fluid transportation pipelines, and boiler equipment which is exposed to hostile environments. The excellent mechanical strength and corrosion resistance of the plates make them suitable for prolonging equipment life, improving operating safety, and lowering maintenance expenses in hostile and severe service conditions.
