Nickel Alloy 201 Circle

Khush Sheets and Plates is a reliable exporter and producer of Nickel Alloy 201 Circles in Kolkata, India. We have expertise in manufacturing high-quality nickel alloy products to meet international standards. Our Nickel Alloy 201 Circles are renowned for superior mechanical strength, thermal conductivity, and excellent resistance to corrosive atmospheres. With a focus on accuracy, longevity, and punctuality, we serve different industries such as chemical processing, electronics, and aerospace. Khush Sheets and Plates is dedicated to providing trustable, personalized metal products in accordance with changing demands of the clients in India and international markets.

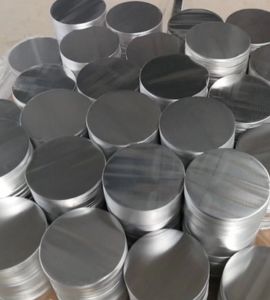

Ni Alloy 201 Circle

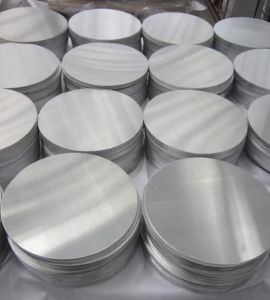

Nickel Alloy 201 HR Circle

Nickel Alloy 201 Circle

Nickel Alloy 201 Proof Machined Circle Dealer in Kolkata, Nickel Alloy 201 Cut Machined Circle Supplier in Kolkata, Alloy 201 Circle Manufacturer in Kolkata, 201 Nickel Alloy Circle Stockist, UNS N02201 Alloy Circle Price List in India, 201 Nickel Alloy Circle Supplier in Kolkata, Alloy 201 Cold Rolled Circle in India, 201 Nickel Alloy Hot Rolled Circle Supplier in India

Nickel Alloy 201 is a commercially pure wrought nickel alloy with about 99.6% nickel content and trace iron, carbon, and other elements. It is a low-carbon variant of Nickel 200 and it improves its resistance to graphitization and high-temperature corrosion. The alloy has superior mechanical properties with tensile strength of about 403 MPa, yield strength of 103 MPa, and elongation of 45%. Nickel 201 retains its ductility and strength over a broad range of temperatures and has excellent resistance to dry gases, alkalis, and acids, making it well suited for demanding thermal and chemical uses.

Nickel Alloy 201 Circle Specification

Standard	ASTM B162, ASME SB162
Dimensions	ASTM, ASME and API
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Thickness	1 Mm To 100 mm.
Diameter	Upto 2000 Mm.
Circle Diameter	3″ DIA up to 38″ DIA 1500 lbs max.
Circles Form	Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle.

201 Nickel Alloy Circle Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel 201	0.02 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Nickel Alloy 201 Circle Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 201	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Equivalent Grades for 201 Nickel Alloy Circle

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel Alloy 201	2.4068	N02201	NW 2201	NA 12	НП-2	–	LC-Ni 99

ASME SB162 Nickel Alloy 201 Circle Distributor in India, Nickel Alloy 201 CR Circle Supplier in Kolkata ,Nickel Alloy 201 HR Circle Supplier in Kolkata, Stockist of Nickel Alloy N02201 Circle in India, ASTM B162 201 Nickel Alloy Circle Supplier in India, Nickel Alloy 201 Circle Price List in India, Nickel Alloy 2.4068 Circle Supplier in India,201 Ni Alloy Proof Machined Circle Exporter in Kolkata, Nickel Alloy 201 Circle Exporter in India,201 Nickel Alloy Cold Rolled Circle Exporter in Kolkata

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Nickel Alloy 201 Circle Manufacturer and Exporter in Kolkata, India

Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Thickness Chart Of Nickel Alloy 201 Circle

Size	18 G.	19 G.	20 G.	22 G.	24 G.	26 G.
.4.5	.0-107	0-085	0-080	0-062	0.049	0-040
5	0-120	0-095	0-090	0-070	0-055	0-045
5.5	0-146	0-119	0-109	0-085	0-066	0-054
6	0-172	0-136	0-130	0-100	0-079	0-064
6.5	0-200	0-153	0-150	0-128	0-093	0-074
7	0-235	0-190	0-176	0-136	0-107	0-088
7.5	0.270	0.212	0.201	0-157	0-123	0-100
8	0-307	0-240	0-230	0-180	0-140	0-115
8.5	0-347	0-270	0-262	0-202	0-156	0-130
9	0-388	0-330	0-301	0-230	0-178	0-145
9.5	0-472	0-342	0-324	0-252	0-198	0-162
10	0-480	0-380	0-360	0-280	0-220	0-180
11	0-580	0-450	0-435	0-338	0-266	0-218
12	0-690	0-540	0-518	0-403	0-318	0-253
13	0-811	0-640	0-508	0-608	0-371	0-304
14	0-940	0-750	0-708	0-558	0-430	0-352
15	1-080	0-860	0-808	0-650	0-495	0-405
16	1-228	0-960	0-921	0-736	0-563	0-460
17	1-382	1-080	0-940	0-809	0-635	0-560
18	1-595	1-200	1-116	0-907	0-712	0-683
19	1-732	1-350	1-300	1-010	0-794	0-750
20	1-920	1-400	1-340	1-120	0-880	0-785

ASME SB162 Alloy 201 Circles Distributor in India, Ni Alloy 201 Forged Circle Exporter in Kolkata, Ni Alloy 201 Forged Circle Exporter in India, 201 Ni Alloy Large Diameter Circle Manufacturer in Kolkata, Alloy 201 Plazma Cut Circle Price List in Kolkata, Ni Alloy 201 Big Size Circle Distributor in Kolkata, 201 Ni Alloy Cut Machined Circle Exporter in India

Types of Nickel Alloy 201 Circle

DIN 2.4068 Ni Alloy Circles in Kolkata, 201 Alloy HR Circle Stockist in Kolkata,201 Alloy Circles Supplier in Kolkata, 201 Nickel Alloy Forged Circle Exporter in India, ASTM B162 201 Nickel Alloy Circle Price List in Kolkata, 201 Nickel Alloy Cut Machined Circle in Kolkata, Nickel Alloy 201 Circle Supplier in Kolkata, 201 Nickel Alloy Proof Machined Circle Distributor in India, Alloy 201 CR Circle Supplier in Kolkata

Are Custom Sizes Available for Nickel Alloy 201 Circle?

Yes, we offer custom sizes for Nickel Alloy 201 Circle to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Nickel Alloy 201 Circle

Nickel Alloy 201 Circles find extensive application in industries requiring high thermal stability and corrosion resistance. Primary uses are in chemical processing equipment like tanks, reactors, and piping for dealing with caustic alkalis and acids. In the electronics sector, it is applied to components which need high purity and magnetic stability. The alloy is also used in food processing, shipbuilding, aerospace, and power generation. Its fine formability and corrosion resistance against a wide range of corrosive media render it ideal for use in pressure vessels, heat exchangers, and instrumentation parts. Nickel 201 Circles are also used in anodes, battery parts, and hydrogen systems.
