Phosphorous Bronze Sheets and Plates

Khush Sheets and Plates is a trustworthy Phosphor Bronze Sheets and Plates manufacturer and supplier from Kolkata, India. We are renowned for supplying premium non-ferrous metal products with special expertise in high-quality phosphor bronze materials having superior strength, durability, and corrosion resistance. Our products are designed to satisfy the needs of industries needing precision and performance. With high-production manufacturing facilities and stringent quality control measures, we offer customized phosphor bronze sheets and plates for electrical, mechanical, and marine use. At Khush Sheets and Plates, we aim to provide top-notch products with prompt service and customer satisfaction.

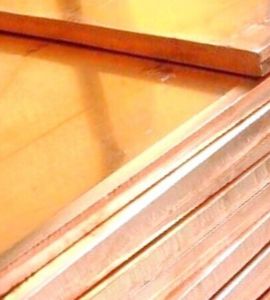

Phosphorous Bronze Plate

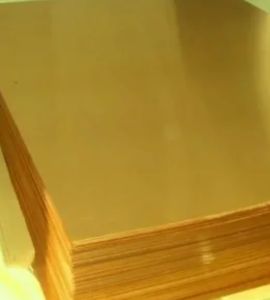

Phosphorous Bronze HR Plates

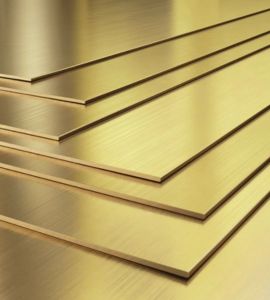

Phosphorous Bronze CR Sheet

ASTM B103 Phosphor Bronze Sheets Dealer in Kolkata, Phosphorous Bronze Plates Supplier in Kolkata, Phosphorous Bronze Sheets in Kolkata, Phosphorous Bronze Plates Size Chart, Phosphorous Bronze Sheet Price in India, Phosphorous Bronze Plates Supplier in Kolkata, Phosphorous Bronze Sheet Stockist in India, Alloy Sheets and Plates Exporter in India, Alloy Sheet Stockist in Kolkata, Phosphorous Bronze Plates Supplier in India

Phosphor Bronze contains mainly copper (88–95%), tin (5–11%), and a small amount of phosphorus (up to 0.35%). It has excellent fatigue resistance, good spring characteristics, and a good corrosion rate. It has tensile strengths between 300–800 MPa, depending on the temper, and has good wear resistance and machinability. The addition of phosphorus increases strength and deoxidation during manufacture. Phosphor Bronze Sheets and Plates retain their properties over a broad temperature range, which makes them suitable for both structural and conductive uses in extreme or dynamic situations.

Phosphorous Bronze Sheets and Plates Specification

Material	Phosphor Bronze Sheet/Plate
Grade	Alloy 510, Alloy 521, Alloy 519, Alloy 544
Standard	ASTM B103
Size	Thickness 0.1 mm to 50 mm; Width up to 500 mm; Length up to 2000 mm
Surface	Rolling surface, Chemical cleaned, Grinding

Chemical Composition of Phosphorous Bronze Sheets and Plates

Element	Zinc (Zn)	Iron (Fe)	Tin (Sn)	Copper (Cu)	Lead (Pb)	Phosphorous (P)	Nickel (Ni)	Others
%	.00 – .20	.00 – .10	4.50 – 5.50	Balance	.00 – .02	.01 – .40	.00 – .20	.00 – .20

Mechanical Properties Of Phosphorous Bronze Sheets and Plates

Tensile strength	Hardness	Elongation at break	Modulus of elasticity	Izod impact strength	Shear strength
320 – 740 MPa	Brinell : 80 – 225	< 60 %	90 – 120 GPa	62 J m⁻¹	250 – 430 MPa

Electrical Properties of Phosphorous Bronze Sheets and Plates

Electrical resistivity	11-16 µOhmcm
Temperature coefficient	0.00060 – 0.00070 K⁻¹

Phosphorous Bronze Sheets Price in India, Phosphorous Bronze Hot Rolled Weight Chart, Phosphorous Bronze Cold Rolled Supplier in Kolkata, Stockist of Phosphorous Bronze Alloy Cold Rolled Sheets in India, Phosphorous Bronze Perforated Sheet Supplier in India, Phosphorous Bronze 2B Finish Plates Price List in Kolkata, Alloy Perforated Plates Supplier in India, Phosphorous Bronze Chequered Plates Exporter in Kolkata, Phosphorous Bronze Alloy Polished Plates Exporter in India, Phosphorous Bronze Perforated Plates Exporter in Kolkata, Phosphorous Bronze Sheet and Plate in India

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Phosphorous Bronze Sheets and Plates Manufacturer and Exporter in Kolkata, India

Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Thermal Properties of Phosphorous Bronze Sheets and Plates

Melting Point	Thermal Conductivity	Electrical Conductivity 20°C	Coeff. of Thermal Expansion 20-300°C	Specific Heat
1050°C	69 W/m°C	15% IACS	17.8 x 10-6	377 J/Kg°K

Fabrication Properties of Phosphorous Bronze Sheets and Plates

Machinability Rating	Annealing Temperature	Hot formability	Stress Relieving temperature	Cold Formability
20%	675 to 745°C	Limited	200 to 350°C	Excellent

Phosphorous Bronze Sheets and Plates Sizes

Dimensions in mm	Thickness in mm
200 X 150	.2
200 X 150	.25
200 X 150	.3
200 X 150	.4
200 X 150	.5
200 X 150	.8
200 X 150	1

Phosphorous Bronze Sheets and Plates Weight Chart

Size in mm (L * W * T)	Weight in kilogram
2000 * 300 * .5	2.69
2000 * 300 * .6	3.23
2000 * 300 * 1.2	6.46
2000 * 300 * 2	10.75
2000 * 300 * 2.5	13.43
2000 * 300 * 3	16.12

Phosphorous Bronze Clad Sheets Distributor in India, Phosphorous Bronze 2B Finish Plates Supplier in Kolkata, Phosphorous Bronze Perforated Sheet Weight Chart, Phosphorous Bronze Plate Exporter in India, Phosphorous Bronze Polished Sheets Manufacturer in Kolkata, Phosphorous Bronze Shim Sheet and Plate Price List in Kolkata, Phosphorous Bronze Chequered Plates Sizes in mm, Phosphorous Bronze Alloy Hot Rolled Plate Distributor in Kolkata, Phosphorous Bronze Sheets and Plates India

Types of Phosphorous Bronze Sheets and Plates

Phosphorous Bronze Plates Manufacturer in Kolkata, Phosphorous Bronze Plates and Sheets Kolkata, ASME SB 103 Phosphorous Bronze Plates Supplier in Kolkata, Phosphorous Bronze Polished Plates Exporter in India, Phosphorous Bronze Alloy Chequered Plates Price List in Kolkata, Phosphorous Bronze Cold Rolled Plate Distributor in Kolkata, Phosphorous Bronze Clad Plates and Sheets Supplier in Kolkata, Phosphorous Bronze Sheet and Plate Distributor in India, Phosphorous Bronze Perforated Plate Sizes in mm

Are Custom Sizes Available for Phosphorous Bronze Sheets and Plates?

Yes, we offer custom sizes for Phosphorous Bronze Sheets and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@khushsheetsandplates.co.in

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Phosphorous Bronze Sheets and Plates

Phosphor Bronze Plates and Sheets are extensively applied in most sectors owing to their good anti-corrosive and mechanical properties. In the electrical and electronics sector, they are applied in switchgear fittings, connectors, relays, and spring contacts. The marine sector appreciates the use of phosphor bronze in bushings, shafts, and propeller parts because of its resistance to corrosion in saltwater environments. In mechanical engineering, it is applied in bearings, gears, and fasteners that need wear resistance. It is also appropriate for musical instruments and precision instruments, where acoustic performance and high tolerances are required. Its versatility ensures it is a material of choice in critical uses.
