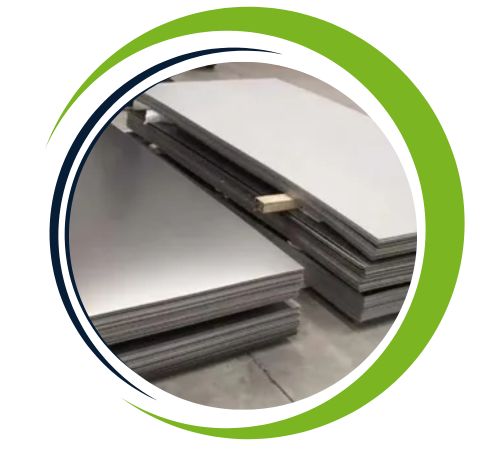

Khush Sheets and Plates is a well-established maker and supplier of Rene 41 Sheets and Plates, headquartered in Kolkata, India. We are committed to providing top-performance nickel-based superalloy products that are designed to perform well in harsh environments. Rene 41 is renowned for its high strength, thermal stability, and resistance to creep and oxidation at high temperatures. At Khush Sheets and Plates, we provide precision-cut Rene 41 sheets and plates to meet the stringent requirements of aerospace, defense, and high-temperature industrial use. We stand firm on quality, customization, and timely delivery, making us a go-to supplier in India and international markets.
Rene 41 is a nickel-based superalloy containing about 47.5% nickel, 19% chromium, 11% cobalt, 10% molybdenum, 3.15% titanium, and 1.6% aluminum, with balanced percentages of iron and trace elements. It has good mechanical strength and resistance to corrosion up to 980°C (1800°F). Rene 41 provides tensile strength in excess of 1380 MPa and superb creep rupture strength. This material is age-hardenable, offering enhanced structural stability, so it suits high-temperature and high-stress applications. Weldability and oxidation resistance further enhance its behavior in harsh environments.
| Standard Specification : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | UNS | Workstoff | AMS | GE |
| Rene 41 | N07041 | 2.4973 | AMS 5545, AMS 5712, AMS 5713, AMS 5800 | GE B50TF109, GE B50TF76 |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Rene 41 Sheets and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Rene 41 Sheets and Plates are mostly employed in aerospace and aeronautical engineering because of their excellent high-temperature strength and resistance to oxidation. They are suitable for the production of jet engine parts, afterburner components, turbine blades, and exhaust ducts. In the defense industry, Rene 41 is applied in parts that are exposed to extreme stress and heat. It also has applications in high-performance automotive systems, nuclear reactors, and industrial furnaces. The reliability of the alloy in conditions above 900°C makes it ideal for any use that demands long-term strength, stability, and thermal fatigue resistance under harsh conditions.
