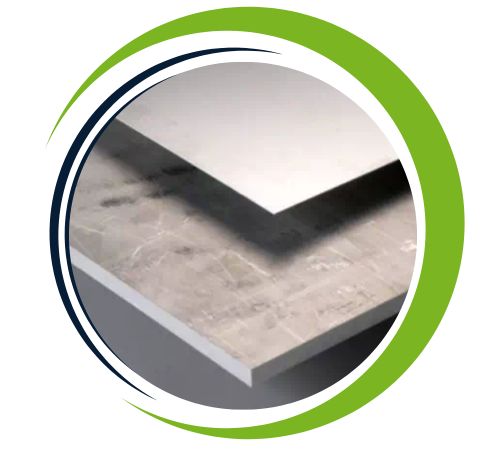

With its headquarters in Kolkata, India, Khush Sheets and Plates is a reputable manufacturer and supplier of stainless steel 17-4 PH sheets and plates, offering premium materials made to be strong, resistant to corrosion, and long-lasting. Excellent mechanical qualities and moderate to high corrosion resistance are combined in Stainless Steel 17-4 PH, a precipitation-hardening martensitic stainless steel. Numerous demanding industries, including aerospace, nuclear, chemical, and marine engineering, use our sheets and plates, which are produced in accordance with international quality standards. We provide dependable and adaptable material solutions to our clients with excellent quality control and prompt delivery.
17-4 PH stainless steel About 15–17.5% chromium, 3–5% nickel, 3–5% copper, and 0.15–0.45% niobium make up sheets and plates, with iron making up the remaining portion. Heat treatment gives the material its high strength and hardness. Depending on the heat treatment condition, it has a tensile strength of up to 1310 MPa, a yield strength of about 1170 MPa, and an elongation of roughly 10–20%. 17-4 PH is perfect for applications needing strength and durability because it retains good toughness and corrosion resistance in both hardened and aged states.
| Grade | Stainless Steel 17-4 PH | UNS S17400 |
| Standard | ASTM B625 / ASME SB625 |
| Thickness | 0.1mm To 100 mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |

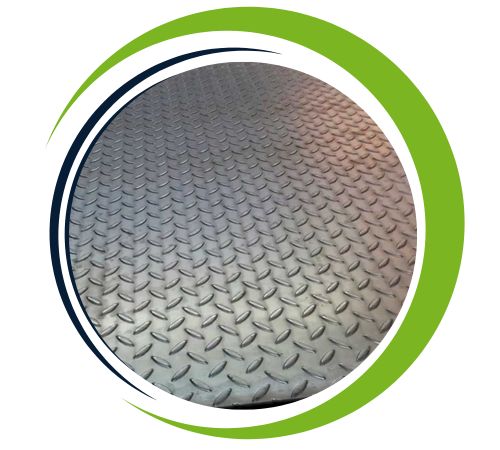

| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

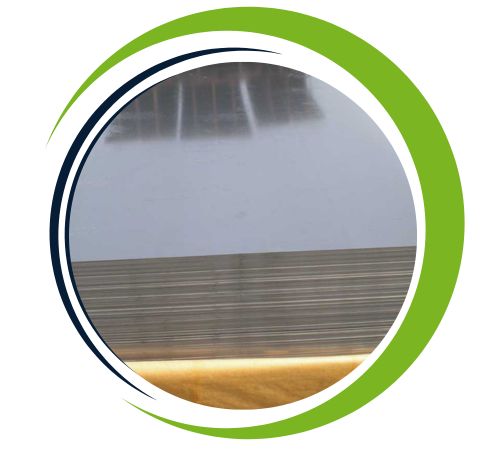

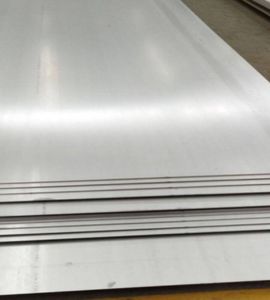

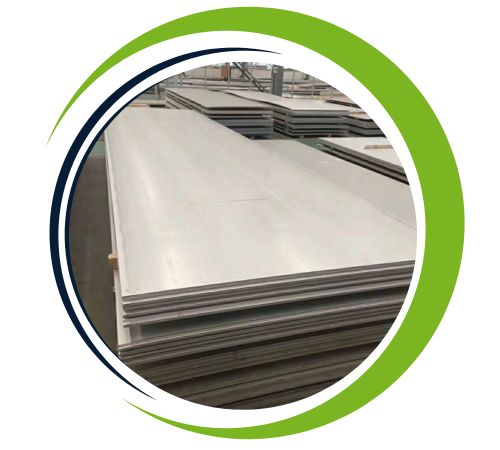

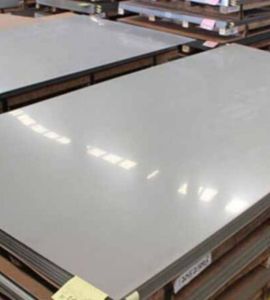

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

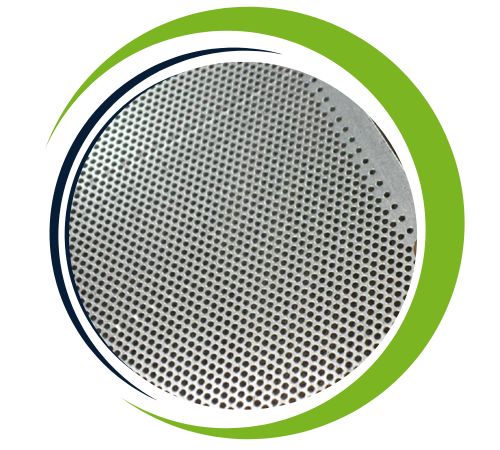

| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Applications | Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry |
| Cr | Mn | Si | Ni | P | S | C | Cu | cb+Ta | |
| MIN | 15 | – | – | 3 | – | – | – | 3 | 0.15 |
| Max | 17.5 | 1 | 1 | 5 | 0.04 | 0.03 | 0.07 | 3.5 | 0.45 |
| UTS (Tensile) Ksi (Mpa) | .02% Yield Strength Ksi (Mpa) | Elongation % in 2” (51mm) | Hardness Rockwell C |
| 160 | 145 | 5 | 35 |
| (1103) | (1000) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 17-4 PH Sheets and Plates offer numerous advantages, including high strength, excellent corrosion resistance, and outstanding toughness, even in challenging environments. DIN 1.4542 Sheets and Plates are heat-treatable, allowing customization of mechanical properties to suit specific applications. These sheets exhibit superior resistance to stress corrosion cracking and pitting, making them ideal for marine and chemical environments. Their exceptional weldability and ease of fabrication simplify manufacturing processes. With excellent performance at moderate to high temperatures, they are widely used in aerospace, petrochemical, and food processing industries, ensuring reliability, durability, and long service life in demanding
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| Stainless Steel 17-4 PH 1D – Hot rolled, heat treated, pickled Plate & Sheet | 2.4–12.7 | max. 2032 |
| 2R – Stainless Steel 17-4 PH Cold-rolled, bright-annealed Sheet & Plate | 0.05–1.50 | 3–649 |
| 2H – Stainless Steel 17-4 PH Work hardened Plate & Sheet | 0.05–1.50 | 3–630 |
| 2B – Stainless Steel 17-4 PH Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 0.25–8.0 | max. 2032 |
| 2D – Stainless Steel 17-4 PH Cold rolled, heat treated, pickled Plate & Sheet | 0.4–6.35 | max. 1524 |
| 2E – Stainless Steel 17-4 PH Cold rolled, heat treated, mechanically descaled Sheet & Plate | 0.4–8.0 | max. 2032 |
| 2R – Stainless Steel 17-4 PH Cold rolled, bright annealed Plate & Sheet | 0.25–3.5 | max. 1524 |
| 2H – Stainless Steel 17-4 PH Work hardened Sheet & Plate | 0.4–6.35 | max. 1524 |

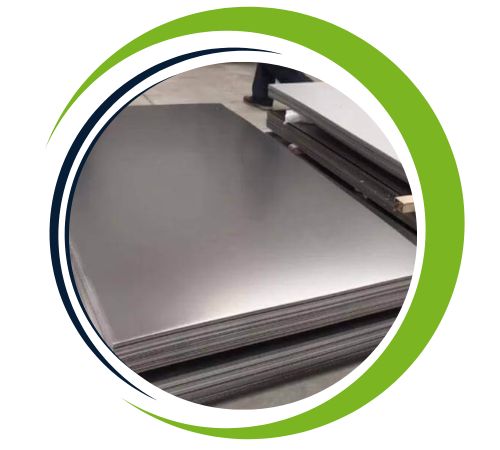

| Stainless Steel 17-4 PH Polished, brushed Plate & Sheet | 0.5–4.0 | max. 1524 |
| Deco | 0.3–3.5 | max. 1524 |
| Stainless Steel 17-4 PH Coil | 0.30–3.5 | max. 1,524 |
Yes, we offer custom sizes for Stainless Steel 17-4 PH Sheet and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
17-4 PH stainless steel In applications where high strength and resistance to corrosion are essential, sheets and plates are widely used. They are utilised for fasteners, engine parts, and structural elements in the aerospace sector. They are perfect for shafts, valves, and pump parts that are exposed to saltwater conditions in the maritime industry. This alloy is used in heat exchangers, tanks, and pressure vessels in the nuclear and chemical processing industries. Because of its superior mechanical performance and resistance to oxidation and corrosion, 17-4 PH is also utilised in medical devices, paper mills, and equipment used in food processing.
