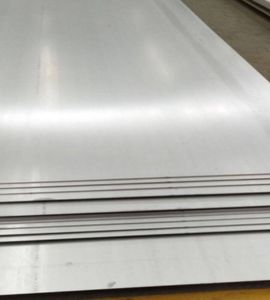

Khush Sheets and Plates is a reliable manufacturer and exporter of Stainless Steel 17-7 PH Sheet and Plates in Kolkata, India. The company is known for its high-quality products and caters to various industries in India and abroad. Khush Sheets and Plates blends sophisticated manufacturing methods with stringent quality control measures to provide superior performance and reliability. Their 17-7 PH Stainless Steel Sheets and Plates are presented in different sizes, finishes, and thicknesses to suit individual customer needs. They ensure that they provide effective solutions supported by good customer service and prompt deliveries.
17-7 PH Sheet and Plates consist mainly of Iron, Chromium (16-18%), Nickel (6.5-7.75%), Aluminum (0.75-1.5%), and Manganese with trace amounts of Carbon and Phosphorus. This precipitation-hardened alloy possesses greater strength and corrosion resistance. Mechanical characteristics are tensile strength of around 1310 MPa, yield strength of about 1170 MPa, and elongation of around 6-10%. Hardness is as high as 38-45 HRC based on heat treatment. Very good fatigue strength and little distortion when undergoing heat treatment make it a good fit for high-performance applications.
| Specifications : | ASTM A693 / ASME SA693 |
| Standard : | ASTM, ASME and API |
| Thickness : | 4.0mm – 100mm |
| Shims Thickness : | Range from .01″ to .0125″ |
| Specialize : | Shim Sheet, Perforated Sheet, B. Q. Profile. |

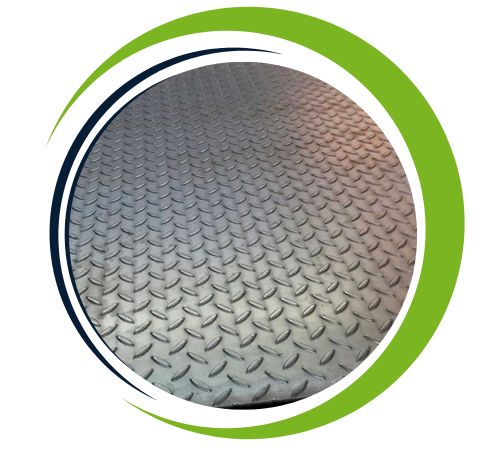

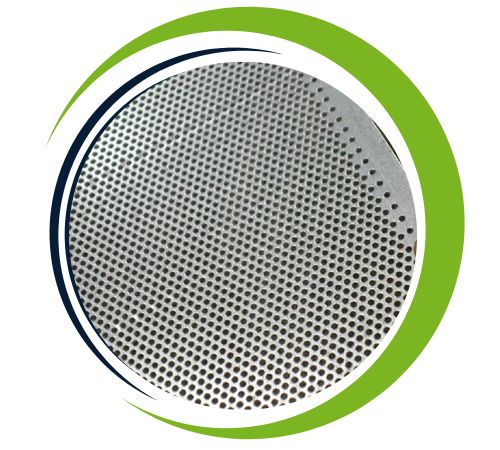

| Form : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |

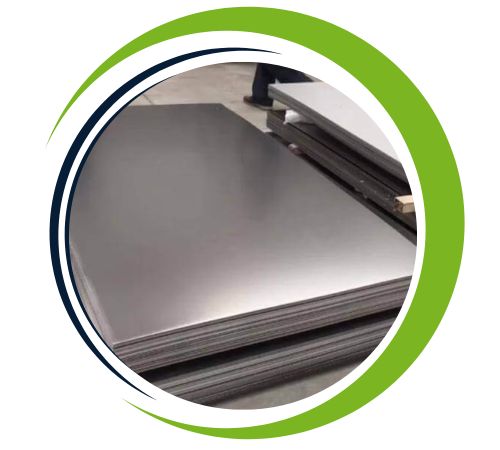

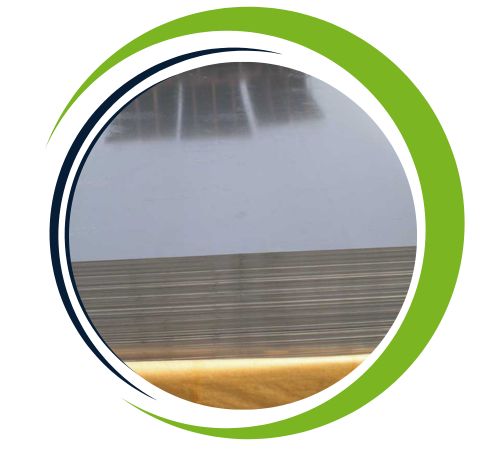

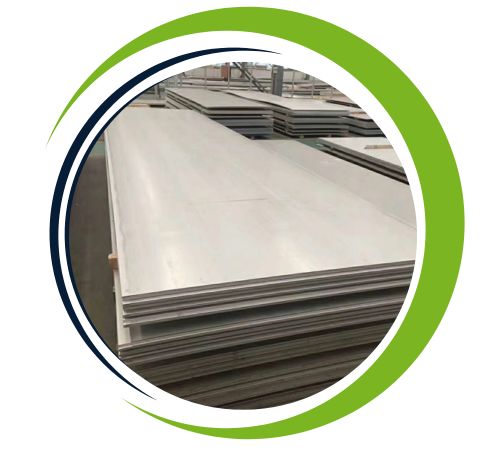

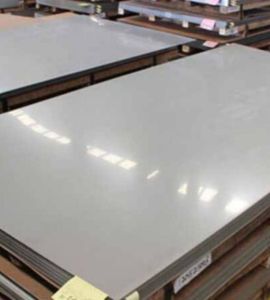

| Finish : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade : | SS 17-7 PH, (UNS S17700) |
| Grade | C | Mn | Ni | Al | Cr | P | Si | S | Fe | |
| 17-7 PH | min. | – | – | 6.50 | 0.75 | 16 | – | – | – | – |
| max. | 0.09 | 1.0 | 7.75 | 1.50 | 18 | 0.040 | 1.0 | 0.030 | Balance | |
| Properties | Metric | Imperial |
| Tensile strength | 1170 MPa | 170000 psi |
| Yield strength | 965 MPa | 140000 psi |
| Modulus of elasticity | 204 GPa | 29600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 6% | 6% |
| Hardness, Rockwell C | 38 | 38 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SS DIN 1.4568 Sheets and Plates offer numerous advantages, including exceptional strength, high fatigue resistance, and excellent stress-corrosion cracking resistance. This alloy maintains good mechanical properties at elevated temperatures, making it ideal for aerospace and industrial applications. It also provides excellent formability and can be easily hardened through heat treatment. The material exhibits superior weldability, ensuring reliable performance in critical environments. Its corrosion resistance, combined with high durability, makes it a preferred choice for manufacturing components that require both strength and resistance to harsh conditions.
| Properties | Metric | Imperial |
| Density | 7.80 g/cm3 | 0.282 lb/in3 |
Yes, we offer custom sizes for Stainless Steel 17-7 PH Sheet and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 17-7 PH | 1.4568 | S17700 | SUS 631 | Z8CNA17.07 | 301S81 | – | X7CrNiAl 17 7 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
Stainless Steel 17-7 PH Plates and Sheets find extensive application in industries requiring high strength, corrosion resistance, and dimensional stability. Typical uses are components in the aerospace industry, chemical processing equipment, marine hardware, and food processing machinery. The good mechanical properties of the alloy and its resistance to oxidation qualify it for use in springs, diaphragms, washers, and structural components subject to harsh environments. It is also employed in nuclear power plants, automotive parts, and industrial equipment. Its high fatigue strength and formability also extend its application to precision instruments and medical equipment where dependability in performance is paramount.
