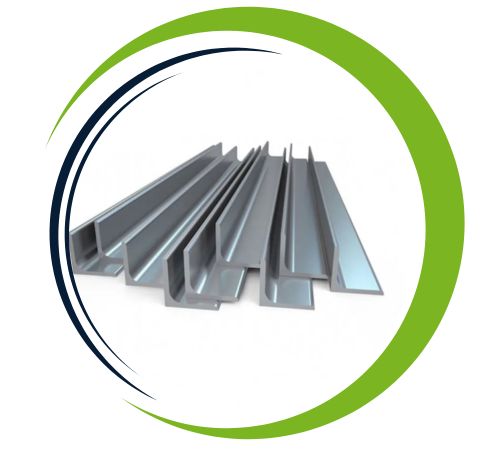

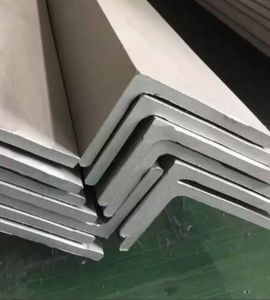

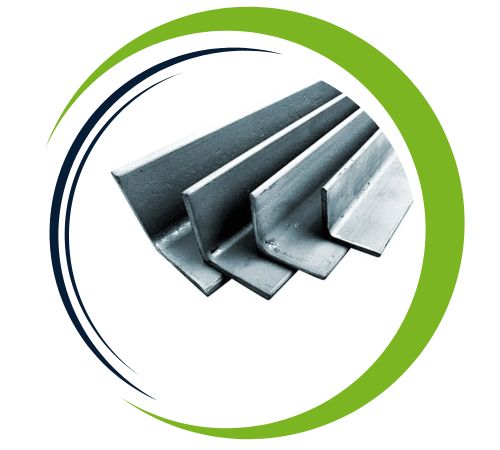

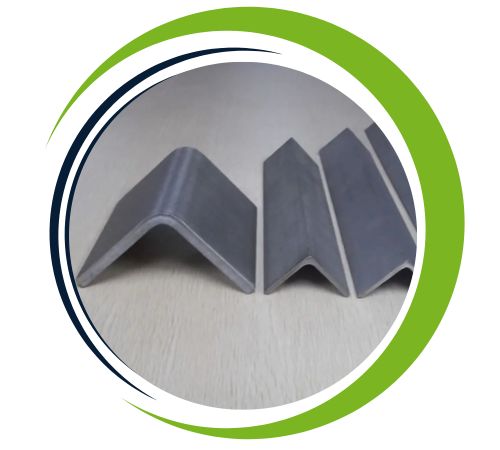

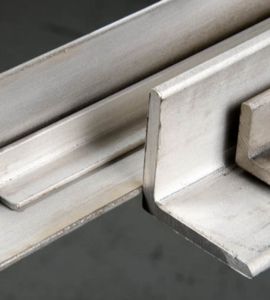

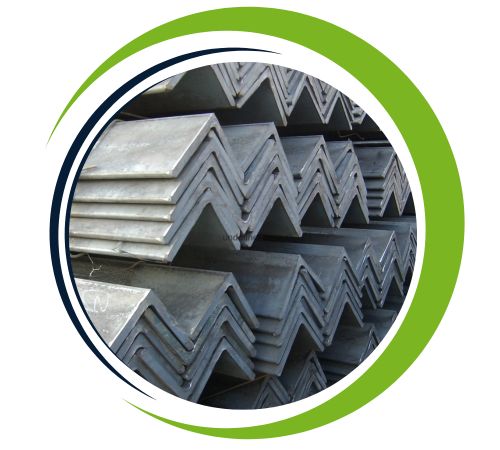

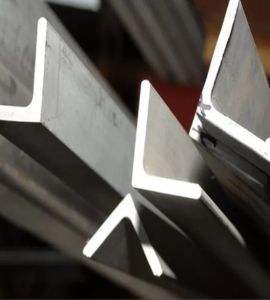

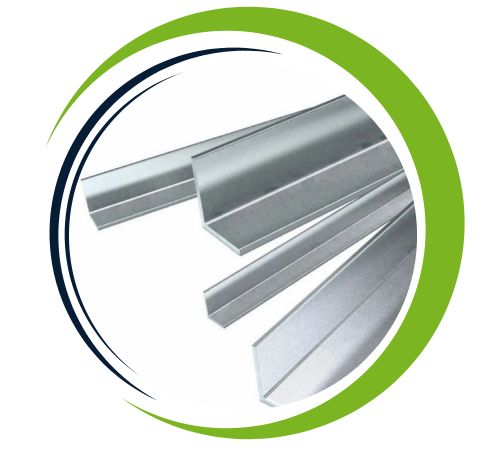

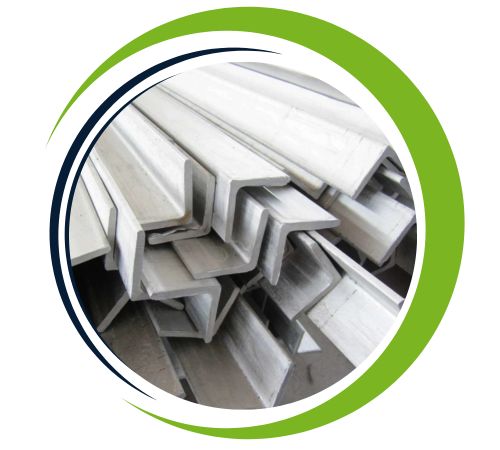

Based in Kolkata, India, Khush Sheets and Plates is a well-known producer and supplier of stainless steel 202 angles. We provide premium structural stainless steel products that are designed to be strong, long-lasting, and reasonably priced. An inexpensive substitute for SS 304, stainless steel 202 is an austenitic chromium-nickel-manganese alloy with superior mechanical qualities and good corrosion resistance. To meet a range of industrial needs, we produce our SS 202 Angles in a variety of sizes and finishes. Khush Sheets and Plates is dedicated to providing clients in India and international markets with dependable products and prompt service.
In addition to having a low carbon content (maximum 0.15%), stainless steel 202 has roughly 17–19% chromium, 4–6% nickel, and 7.5–10% manganese. Manganese improves its work-hardening properties and mechanical strength. With good elongation and formability, SS 202 has a yield strength of roughly 275 MPa and a tensile strength of roughly 515–860 MPa. It resists corrosion to a moderate degree, especially in less hostile conditions. The alloy is appropriate for a variety of structural applications because it can be effectively formed, welded, and machined while maintaining good toughness at low temperatures.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 202 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 202 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 202 Angle Bar (kilogram/meter) |
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
Because of their strength and moderate resistance to corrosion, stainless steel 202 angles are frequently used in architectural applications, railings, support brackets, and structural frameworks. Additionally, they are employed in industrial fabrication, construction equipment, automobile parts, and furniture manufacturing. For indoor and mildly corrosive settings where high strength and a beautiful finish are necessary, SS 202 is an affordable option. Without sacrificing durability, these angles are appropriate for applications involving bending, welding, and forming. They are a popular option for commercial, residential, and light industrial projects that demand both structural dependability and affordability because of their versatility.
