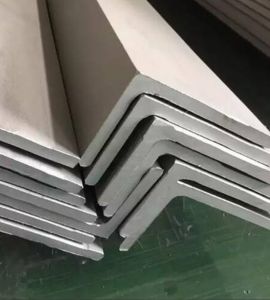

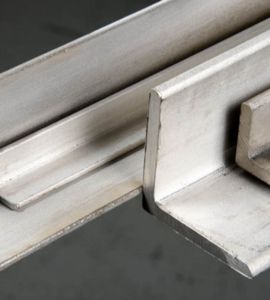

Based in Kolkata, India, Khush Sheets and Plates is a reputable producer and supplier of high-quality stainless steel 301 angles. For a variety of commercial and industrial applications, we offer high-performance structural stainless steel products that blend strength, formability, and durability. The austenitic alloy stainless steel 301 is renowned for its superior corrosion resistance and work-hardening properties. Our SS 301 Angles come in a range of thicknesses and sizes and are produced in accordance with international quality standards. We work with clients in the manufacturing, transportation, and construction industries in India and abroad, placing a high priority on client satisfaction and on-time delivery.
With a maximum carbon content of 0.15%, stainless steel 301 is made up of 16–18% chromium and 6–8% nickel. It also contains trace amounts of silicon, nitrogen, and manganese. With a tensile strength that ranges from 515 to 1035 MPa and a yield strength that, depending on the temper, can reach 620 MPa, SS 301 provides exceptional mechanical strength. Without heat treatment, it can be made stronger due to its good ductility and quick work-hardening during cold working. The alloy is appropriate for load-bearing and structural applications due to its high toughness, good weldability, and moderate corrosion resistance.
| Specifications | ASTM A276 / ASME SA276 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Angles Size | 20mm to 200mm |
| Angle Thickness | 3mm to 12mm |
| Angles Length | Upto 6 Meters Long |
| Angles Types | Equal, Unequal, L Angle, Equal Leg Angle, Unequal Leg Angle, Hot Rolled Angle, Angle |
| ELEMENT | C | Mn | P | S | Si | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| SS 301 | 0.150 max | 2.00 max | 0.045 max | 0.030 max | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | 0.10 |
| SS 301L | 0.03 max | 2.00 max | 0.045 max | 0.030 max | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | 0.02 |
| Grade | Tensile Strength ksi (min.) | Yield Strength 0.2% ksi (min.) | Elongation -% in 50 mm (min.) |
|---|---|---|---|
| SS 301 | 185 | 140 | 9 |
| SS 301L | 550 | 220 | 45 |
| STANDARD | WERKSTOFF NR. | UNS | JIS |
|---|---|---|---|
| SS 301 | 1.4310 | S30100 | SUS 301 |
| SS 301L | – | S30103 | SUS 301L |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless steel 301 angles are frequently utilised in industrial fabrication, transportation components, and structural frameworks where formability and strength are essential specifications. They are perfect for uses like railcars, trailers, conveyor frames, brackets, and support structures because they can be cold worked. Additionally, SS 301 Angles are used in appliance manufacturing, automotive trim, and architectural projects. They can tolerate mechanical stress and fatigue and function well in mildly corrosive environments. These angles are preferred in applications where longevity, accuracy, and performance are crucial, especially in dynamic load-bearing or flexible structural systems, due to their high strength-to-weight ratio.
