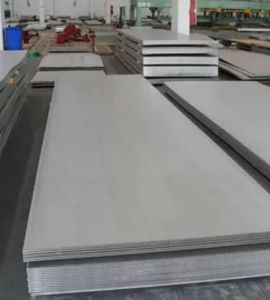

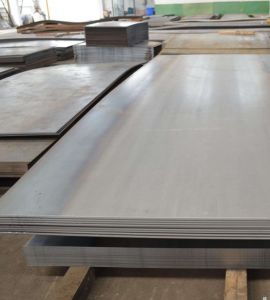

Khush Sheets and Plates is a prominent manufacturer and supplier of high-quality Stainless Steel 316 Sheets and Plates in Kolkata, India. Known for its quality, durability, and accuracy, we provide products that exceed international standards and are suitable for diverse industrial uses. Our Stainless Steel 316 Sheets and Plates are highly regarded for their outstanding corrosion resistance, particularly in marine and chemical environments. With a focus on customer satisfaction, we offer tailor-made solutions of different thicknesses and sizes. Khush Sheets and Plates guarantees prompt delivery and high-class service, making us a preferred choice for stainless steel requirements in India.
Stainless Steel 316 is a wrought austenitic chromium-nickel stainless steel alloy with 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The addition of molybdenum improves corrosion resistance, especially against chlorides and industrial solvents. It possesses about 515 MPa tensile strength, yield strength of 205 MPa, and very good elongation of approximately 40%. Its Brinell hardness is around 217 max. Stainless Steel 316 has superior weldability, high-temperature strength, and toughness, suitable for extreme conditions where there is a need for both strength and corrosion resistance.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

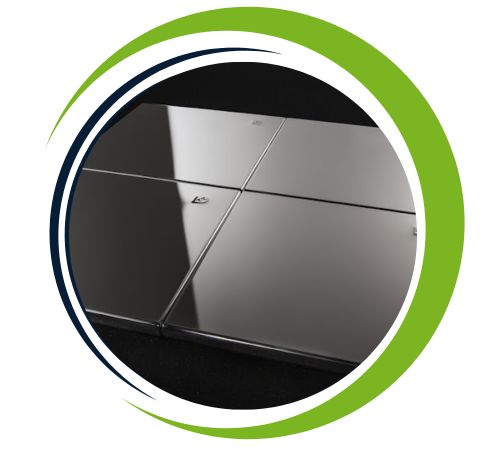

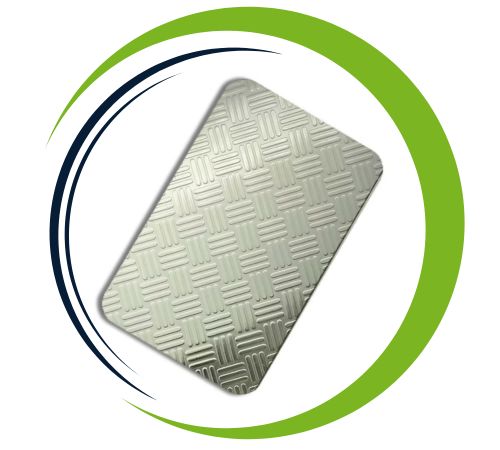

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

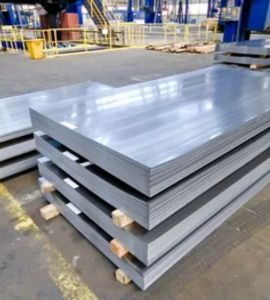

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

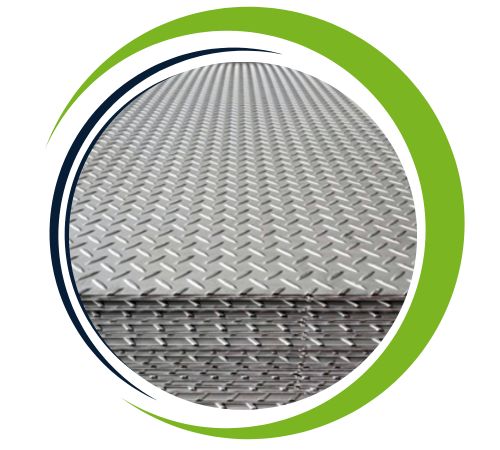

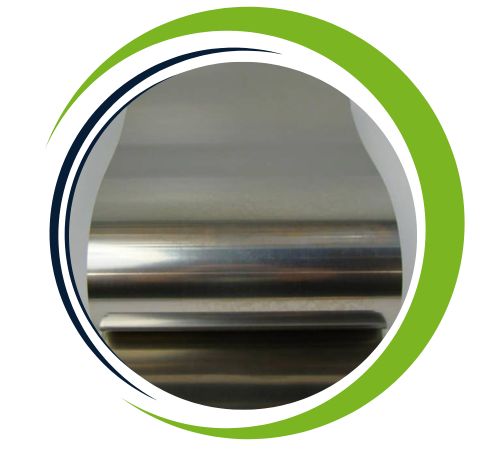

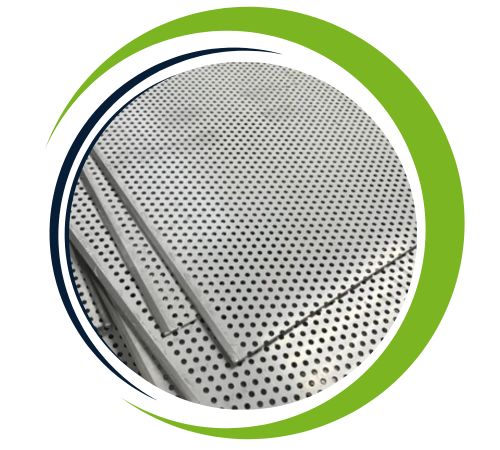

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316 Sheets and Plates are extremely popular in applications that demand superior corrosion resistance and durability. These are best suited for marine conditions, chemical processing, and production of pharmaceuticals because they cannot corrode by chlorides or acidic solutions. Sheets and plates are also used in food and beverage processing machinery, heat exchangers, medical applications, and architectural buildings. Their strong performance in low and high temperatures also makes them a good choice for pressure vessels and piping systems. The superior weldability and clean finish of Stainless Steel 316 also make it the go-to option in hygiene-critical as well as aesthetically challenging applications.
