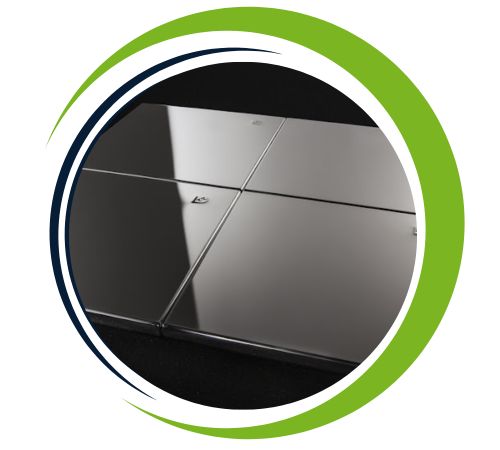

Khush Sheets and Plates is a well-known manufacturer and exporter of high-grade Stainless Steel 316H plates and sheets in Kolkata, India. Known for producing superior products, the company supplies to diverse industries demanding long-lasting and corrosion-resistant material. Stainless Steel 316H is specifically formulated for high temperature services, providing greater strength and durability. Khush Sheets and Plates brings together cutting-edge manufacturing processes with rigorous quality checks to provide consistent performance across harsh environments, which is the reason it is a trusted name among local as well as global clients.
Stainless Steel 316H comprises 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, with an increased content of carbon (0.04%-0.10%) for enhanced high-temperature strength. It demonstrates superior resistance to corrosion by chlorides and acidic conditions. In terms of mechanics, it possesses a tensile strength of no less than 515 MPa, a yield strength of more than 205 MPa, and an elongation of at least 40%, making it suitable for harsh environments calling for strength and also flexibility.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

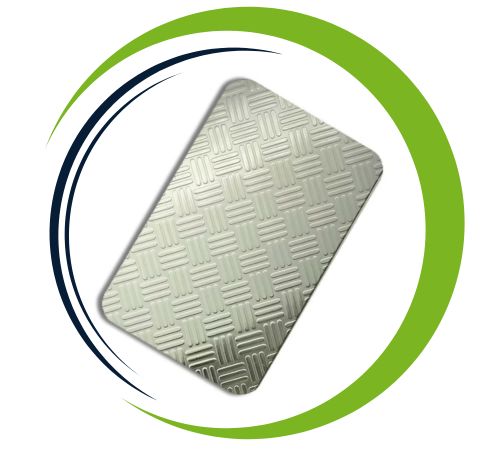

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

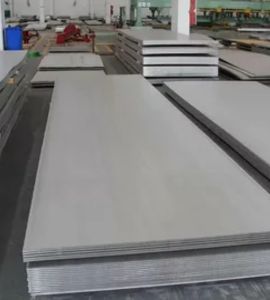

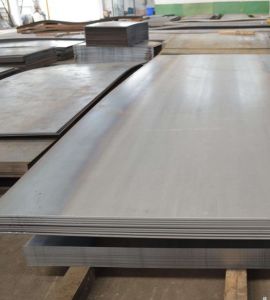

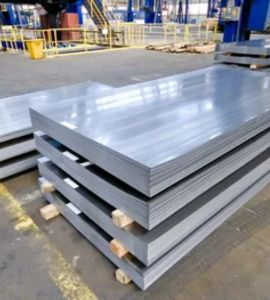

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

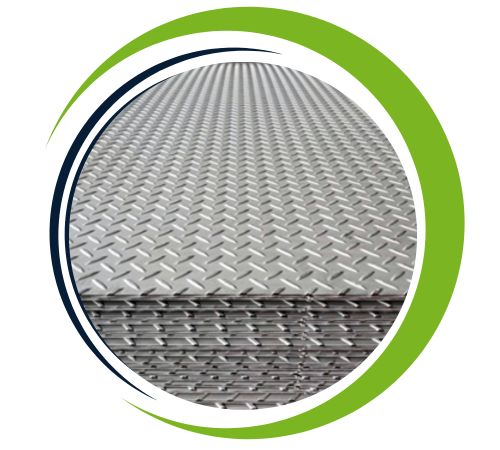

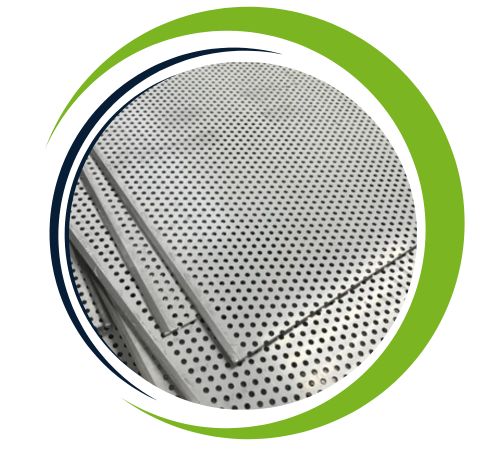

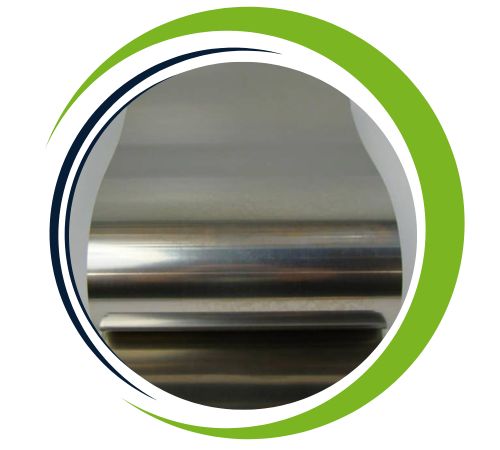

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2 – 3 | 10 – 14 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 316H | 1.4401 | S31609 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316H Sheet and Plates offers several key benefits, especially in high-temperature environments. Its high carbon content also increases creep resistance, making it ideal for structural application in the chemical, petrochemical and marine industries. The material boasts excellent corrosion resistance, especially against chloride, pitting and crevice corrosion. It also performs well in extreme temperatures, maintaining its integrity in high temperature conditions. In addition, stainless steel 316H is durable, easy to manufacture, and highly resistant to oxidation, providing long service life with minimal maintenance These properties make it ideal for environmental production difficult to destroy.
This grade of stainless steel is extensively applied in chemical processing, power generation, marine, and aerospace industries as it can be withstood in harsh environments and high temperatures. It is generally utilized for manufacturing pressure vessels, heat exchangers, boilers, and offshore structures. It is resistant to pitting and crevice corrosion, making it ideal for marine and coastal applications, and it has high strength to support critical equipment in petrochemical and pharmaceutical industries.
