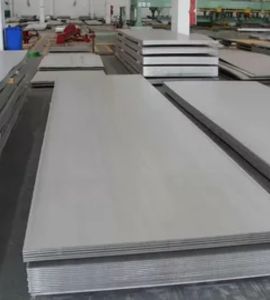

Khush Sheets and Plates is a reliable producer and supplier of high-quality Stainless Steel 316L Sheets and Plates located in Kolkata, India. With experience in the industry for years, we provide high-quality stainless steel sheets and plates that are customized to cater to the various demands of various industries. Our 316L Sheets and Plates are well known for their superior corrosion resistance, longer lifespan, and fine finish. We serve a large customer base in India and worldwide, providing competitive pricing and prompt delivery. Dedicated to excellence, Khush Sheets and Plates follows strict quality standards to ensure that products surpass customer expectations for all uses.
Stainless Steel 316L is a low-carbon austenitic stainless steel with 16–18% Chromium, 10–14% Nickel, 2–3% Molybdenum, and up to 0.03% Carbon. This mix of elements is responsible for its higher resistance to pitting and crevice corrosion. Mechanical properties consist of a tensile strength of 485 MPa, yield strength of 170 MPa, elongation of 40%, and good toughness even at cryogenic temperatures. Having a Brinell hardness of around 217 HBW, 316L has superior weldability, formability, and resistance to aggressive environments of a broad range.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

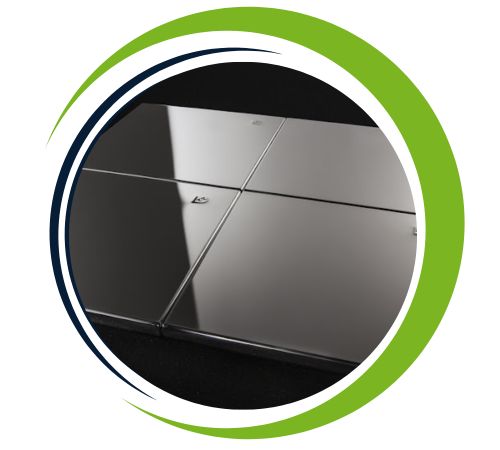

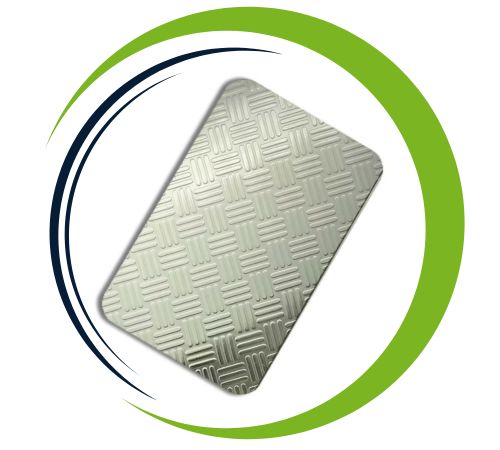

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

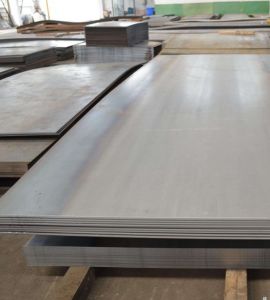

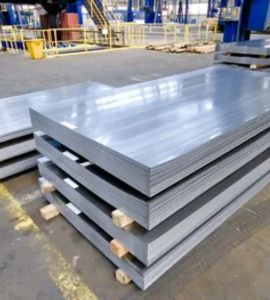

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

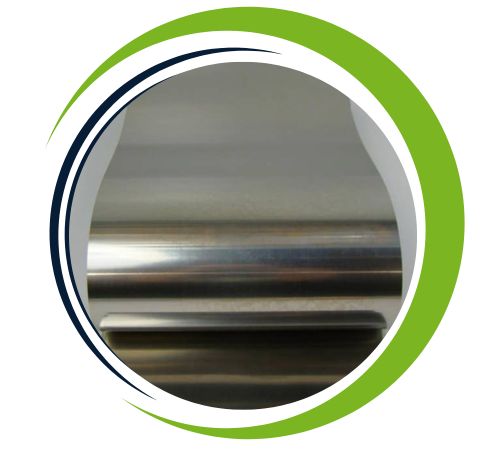

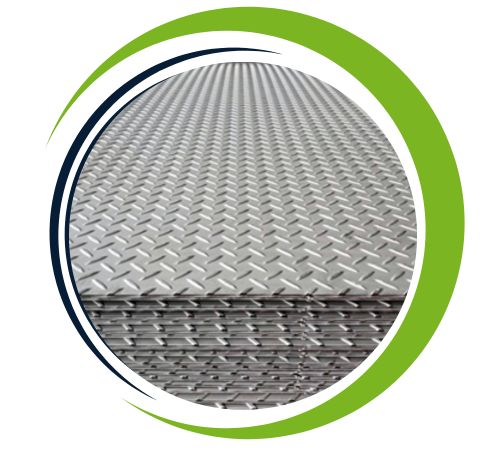

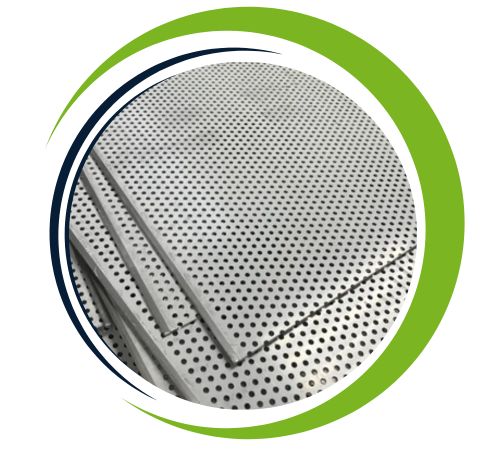

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316L sheets and plates offer many advantages, including excellent corrosion resistance, especially against chloride and harsh environments, making them ideal for marine and chemical consumption use This low-carbon material reduces carbide precipitation, enhances weldability and prevents intergranular corrosion. 316L is highly resistant to high temperature pitting, crevice corrosion and oxidation. It also has excellent mechanical properties, such as high strength, durability and flexibility. These characteristics make it suitable for industries such as pharmaceuticals, food processing and petrochemicals, where reliability and long-term performance are important.
Stainless Steel 316L Sheets and Plates are used extensively in industries because they are corrosion resistant and long-lasting. In the maritime world, they are perfect for parts that have been exposed to saltwater. The pharmaceutical and chemical industries use 316L on equipment and storage tanks for handling corrosive agents. The food processing sector relies on the material for it keeps them clean and long-lasting. Its weather resistance and aesthetic value also find architectural uses in cladding and railings. Other uses include heat exchangers, pressure vessels, and medical devices, making 316L an indispensable material in demanding environments.
