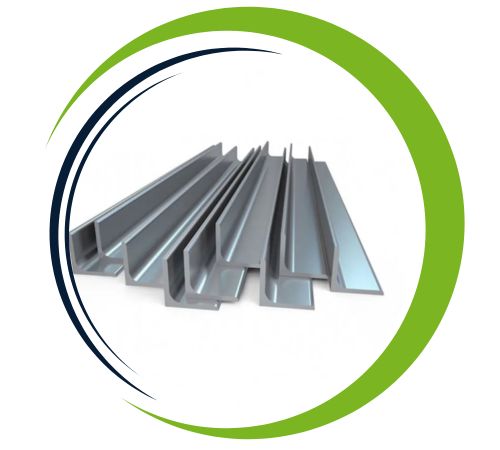

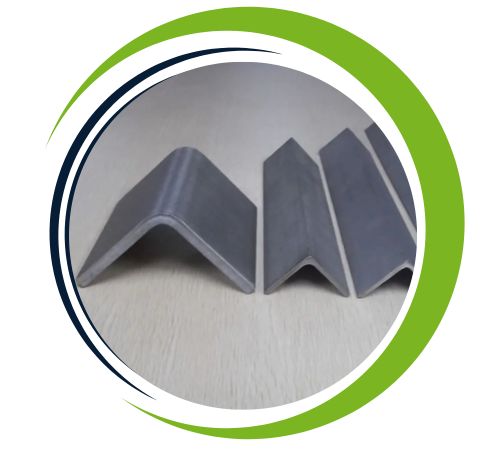

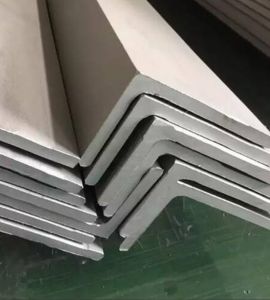

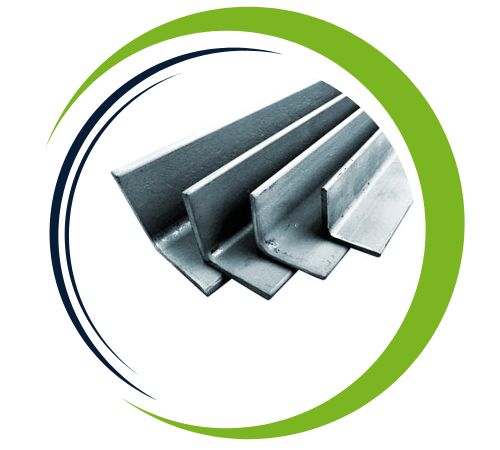

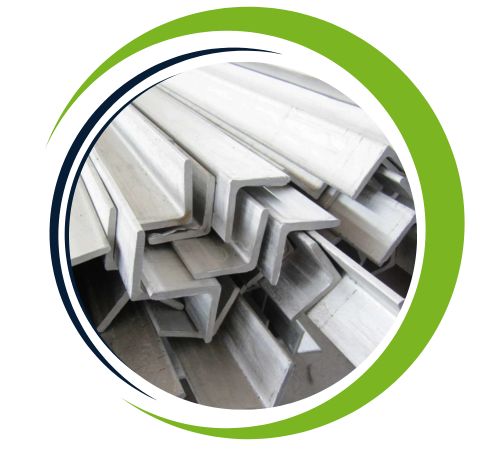

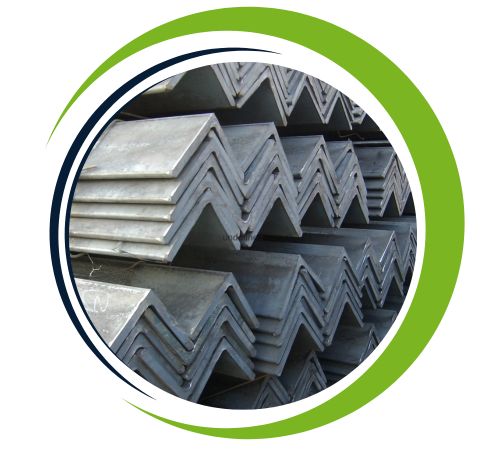

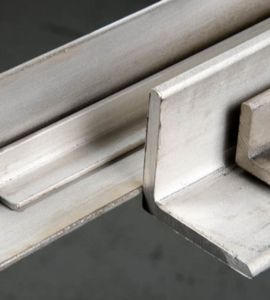

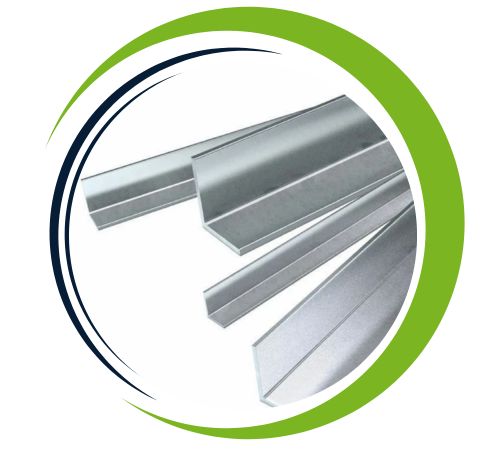

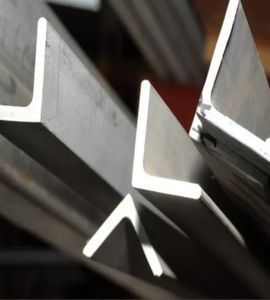

Khush Sheets and Plates is a well-known Kolkata, India-based manufacturer and supplier of high-grade Stainless Steel 316Ti Angles. Having significant industry experience, they supply premium quality stainless steel products as per international standards. Famous for being durable and precise, the company satisfies various industrial requirements by supplying anti-corrosive and durable stainless steel solutions. Having a vast inventory and customer-centric strategy, they are a reliable company in the stainless steel market in India and globally.
Stainless Steel 316Ti is an austenitic alloy stabilized by titanium, comprising 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. Titanium enhances intergranular corrosion resistance. Its tensile strength is approximately 515 MPa and yield strength is approximately 205 MPa, possessing superior toughness and ductility. It resists high temperatures and possesses greater creep and stress corrosion resistance than normal 316, making it mechanically robust under abrasive conditions.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316Ti angle provides excellent corrosion resistance thanks to its titanium-tough design especially in high-temperature environments that retains this strength and stability under extreme conditions, and provides it is ideal for industrial marine applications. The alloy resists pitting and crack corrosion, providing durability in high chloride environments. Also, it exhibits excellent weldability and formability, facilitating mass production. Its advanced mechanical properties and thermal resistance make it suitable for pressure molds and chemical processes, resulting in reliable operation and reduced maintenance over time.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 316Ti Angles find applications in chemical processing, marine, and aerospace because of their high tensile strength and corrosion resistance. They find application in architectural buildings, food processing, and pharmaceutical machinery, prized for cleanliness and longevity. They can also withstand high heat and stress corrosion cracking, making them suitable for heat exchangers, boilers, and pressure vessels, offering effective structure in extreme conditions.
