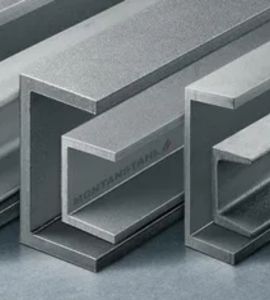

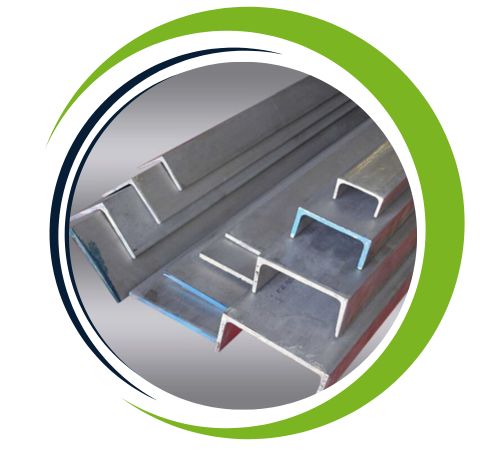

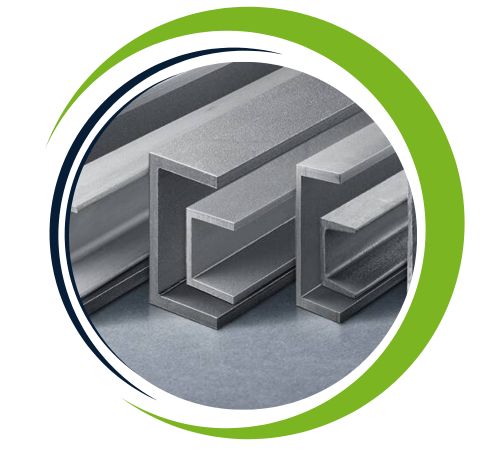

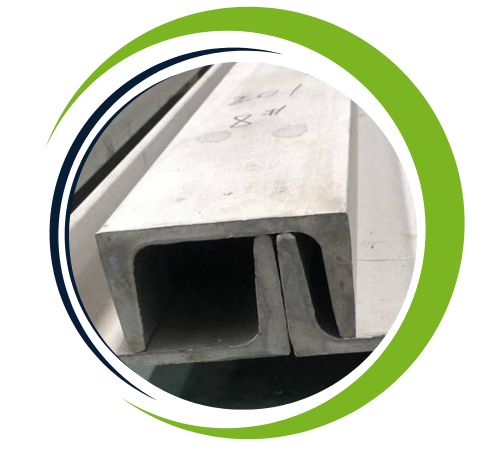

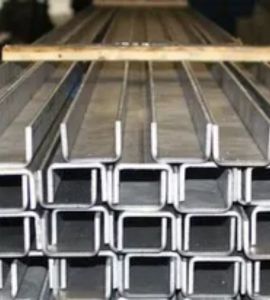

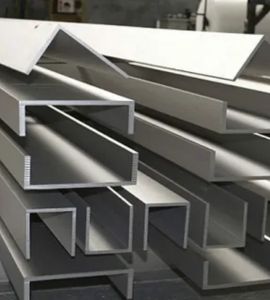

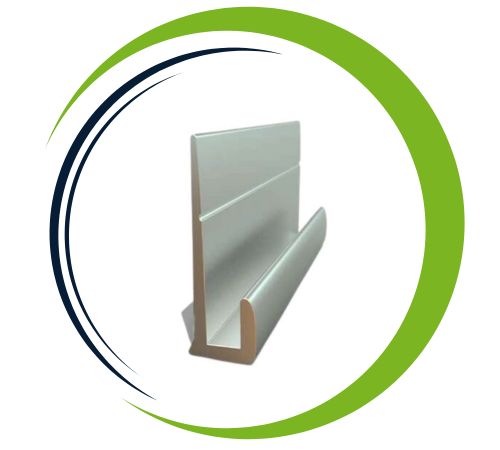

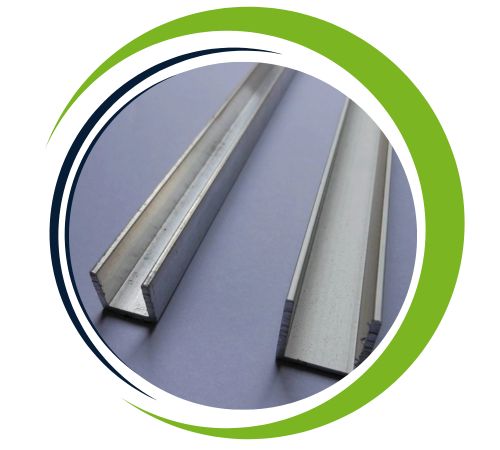

In Kolkata, India, Khush Sheets and Plates is a reputable producer and supplier of 316Ti stainless steel channels. We offer 316Ti stainless steel channels, which are renowned for their exceptional quality and accuracy, and are made for demanding applications that call for high temperature strength and exceptional corrosion resistance. A titanium-stabilized form of 316, 316Ti provides enhanced stability at high temperatures and resistance to intergranular corrosion. Our channels are produced in accordance with global standards and tailored to satisfy particular customer requirements in industries like food, construction, marine, and chemical processing. We guarantee customers in India and international markets timely delivery and constant quality.
About 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and 0.5% titanium are present in stainless steel 316Ti Channel. During welding and high-temperature service, the titanium addition stabilises the material against carbide precipitation. This grade has outstanding elongation and impact strength, a yield strength of 205 MPa, and a tensile strength of about 515 MPa. 316Ti is durable in corrosive and high-stress environments because it retains its mechanical integrity even at high temperatures. Additionally, it is very formable and weldable, which makes it appropriate for intricate structural and fabrication applications.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| ELEMENT | 316 | 316L | 316TI |
|---|---|---|---|
| NI | 11.0 – 14.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| C | 0.08 max | 0.035 max | 0.08 max |
| MN | 2.0 max | 2.0 max | 2.0 max |
| P | 0.045 max | 0.045 max | 0.045 max |
| S | 0.30 max | 0.30 max | 0.30 max |
| SI | 1.0 max | 1.0 max | 0.75 max |
| CR | 16.0 – 18.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| MO | 2.0 – 3.0 | 2.0 – 3.0 | 2.0 – 3.0 |
| TI | 5x(C+N) – 0.70 | ||
| N | 0.10 max |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Stainless Steel 316Ti Channel to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |

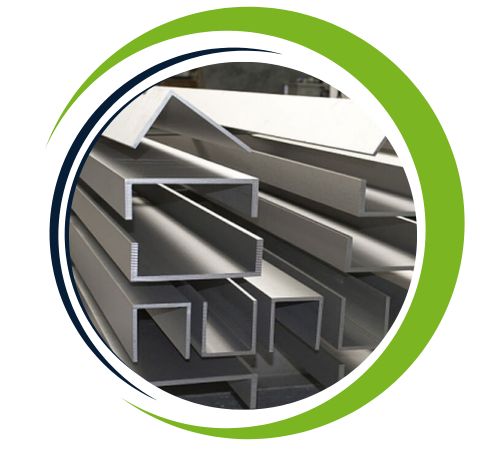

Heat exchangers, chemical processing facilities, and marine structures all make extensive use of stainless steel 316Ti channels because they must be resistant to corrosion caused by chloride. They are perfect for boiler parts, exhaust systems, and high-temperature equipment because of their thermal stability. Because of their resistance to acidic and alkaline substances, they are also used in pulp and paper mills, pharmaceutical processing facilities, and food production equipment. 316Ti channels are utilised in architecture and construction for load-bearing structures subjected to severe weather conditions or industrial environments. They are appropriate for both structural and utility-based applications due to their exceptional strength and resistance to corrosion.
