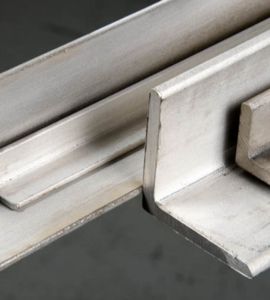

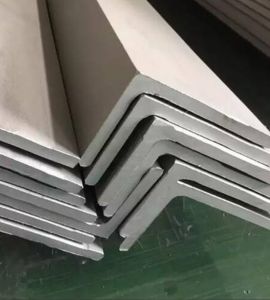

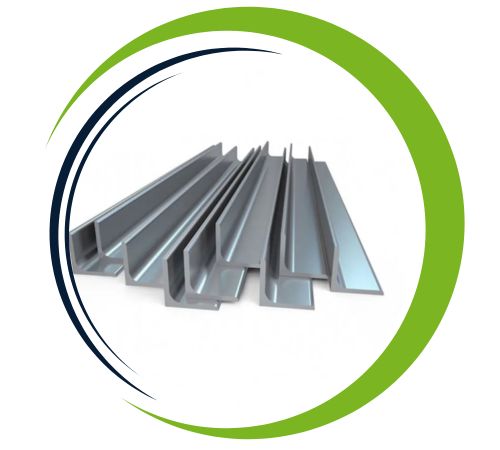

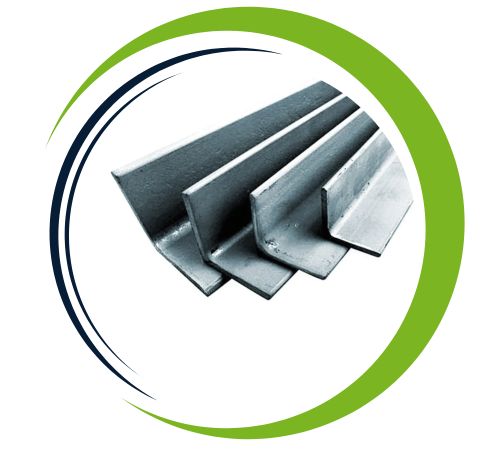

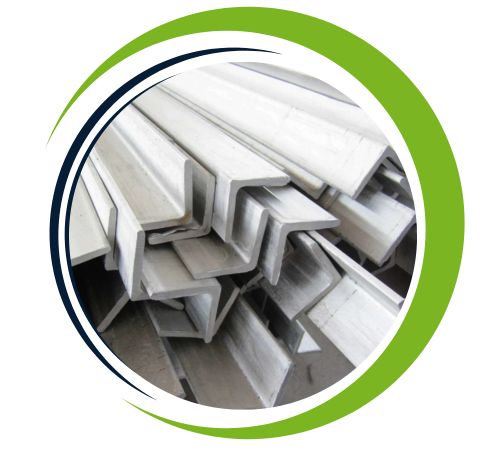

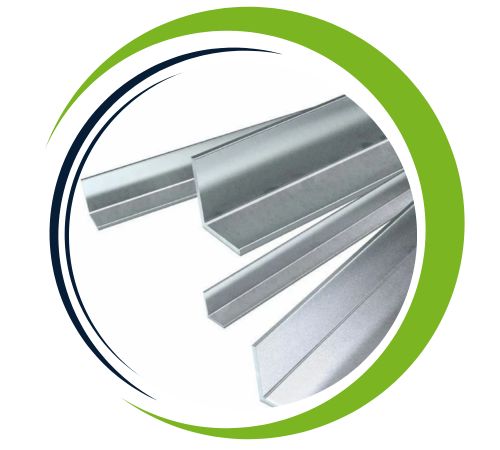

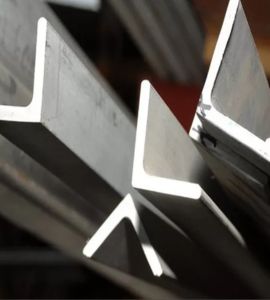

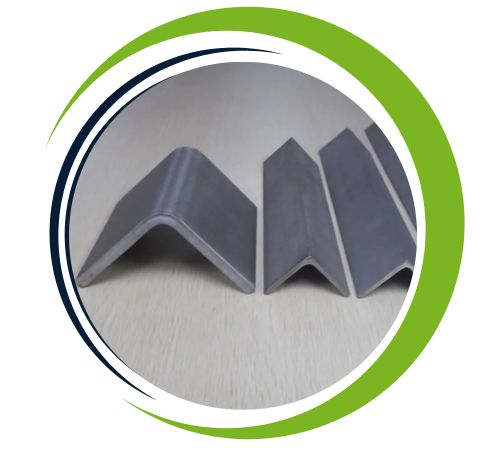

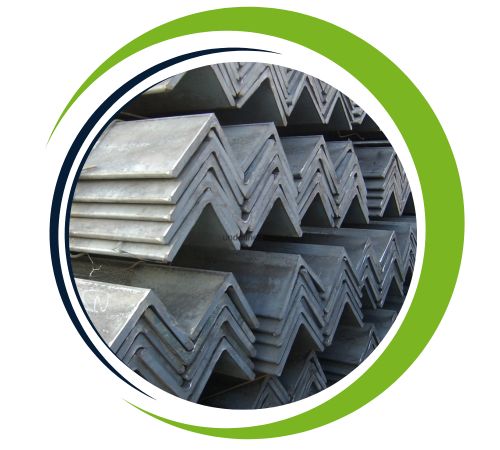

In Kolkata, India, Khush Sheets and Plates is a top producer and supplier of stainless steel 317 angles. We provide 317 angles made for exceptional corrosion resistance in harsh chemical environments, and we are renowned for producing high-quality stainless steel products. Our SS 317 angles have outstanding strength, durability, and weldability and are made to international standards. To meet a variety of industrial needs, these structural elements come in a range of sizes and finishes. Khush Sheets and Plates provides services to customers in India and abroad with a strong dedication to accuracy, quality, and client satisfaction.
In addition to having a low carbon content, stainless steel 317 has roughly 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. The additional molybdenum improves defence against general chemical attack, pitting, and crevice corrosion. SS 317 angles have a yield strength of 205 MPa and a tensile strength of roughly 515 MPa. Even at high temperatures, the material retains exceptional ductility and impact strength. Because of its strong formability and weldability, it can be used for intricate fabrication. In challenging and corrosive conditions, these mechanical properties guarantee dependability and durability.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 317 Angle | : | 5mm to 9mm |
| SS 317 Channel | : | 40mm*20mm~300mm*300mm |
| SS 317 Beam | : | 3″ thru 12.31″ |
| SS 317 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
In applications involving aggressive agents like acids and chlorides, stainless steel 317 angles are frequently utilised in the petrochemical and chemical industries. They are perfect for textile machinery, food processing equipment, and pulp and paper mills where strength and resistance to corrosion are essential. Structures exposed to saltwater in the marine and offshore sectors use 317 angles. They are also used in pollution control devices, heat exchangers, flue gas scrubbers, and pharmaceutical processing facilities. SS 317 angles are appropriate for high-temperature service applications as well as structural support due to their exceptional resistance to oxidation and corrosion.
