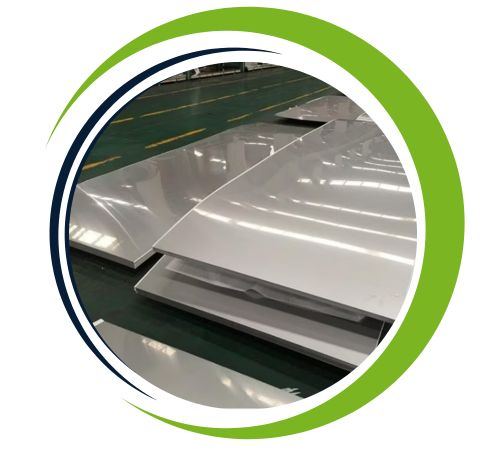

Khush Sheets and Plates is a top-notch manufacturer and supplier from Kolkata, India, with expertise in premium Stainless Steel 317 plates and sheets. With dedication to excellence, Khush Sheets and Plates serves the myriad needs of various industries with superior products that are internationally compliant. Their experience guarantees on-time delivery, accurate manufacturing, and superior customer service, making them the preferred choice for industries that need corrosion-resistant and heavy-duty stainless steel solutions. They have a considerable presence in the Indian industry, catering to industries like chemical processing, marine, and construction, focusing on quality and innovation.
Stainless Steel 317 is an austenitic stainless steel alloy containing primarily iron, 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. This particular composition provides increased resistance to pitting, crevice corrosion, and chemical attack. It possesses a tensile strength of around 515 MPa, yield strength of about 205 MPa, and elongation of approximately 40%, showing good formability and endurance. The Rockwell hardness is usually B80, and thus it can be used in high-stress applications. These properties make it ideal for use in harsh industrial environments, particularly where high corrosion resistance is essential.
| 317 Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 317 Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 317 Sheets & Plates Size Range | Cold rolled ASME SA240 Grade 317 Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 317 Stainless Steel Sheet 3.0–10.0 mm |
| 317 SS Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 317 Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 317 Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 317 Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 317 Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 317 SS Strips EN 10088 SA -240-304 / 317 Strips |
| Finish of SS 317 Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 317 sheets and plates provide exceptional corrosion resistance, especially in acidic environments, making them ideal for chemical, petrochemical and pharmaceutical applications Due to their high chromium and molybdenum content, they provide excellent durability and strength at higher temperatures. These materials are highly resistant to pitting, crevice corrosion, and stress corrosion cracking. Additionally, stainless steel 317 is easy to weld, fabricate and maintain, providing long service life. Its aesthetic appeal and oxidation resistance further enhance its suitability for building and construction applications, and provide functional and visual advantages
