Khush Sheets and Plates is a leading manufacturer and supplier of Stainless Steel 321 Sheets and Plates from Kolkata, India. With our reputation built on excellence, we stock a varied assortment of SS 321 products that are tailored to industrial standards and client order specifications. Our SS 321 Sheets and Plates are perfect for resisting intergranular corrosion and strength at elevated temperatures. Thanks to cutting-edge production methods and rigorous quality assurance, Khush Sheets and Plates guarantee better durability and performance, making us a reliable partner for customers across industries in India and the world.
321 Stainless Steel is a titanium-stabilized austenitic stainless steel with about 17-19% chromium, 9-12% nickel, and trace elements of carbon, manganese, silicon, phosphorus, sulfur, and titanium. Its composition offers resistance to carbide precipitation and intergranular corrosion. It has a tensile strength of about 515 MPa, yield strength of 205 MPa, and elongation of 40%. The alloy has excellent mechanical strength and resistance to oxidation even at high temperatures, which makes it suitable to be used in high-temperature environments where regular stainless steels would fail.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

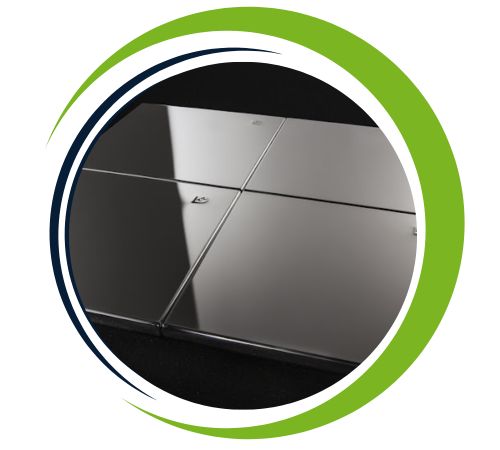

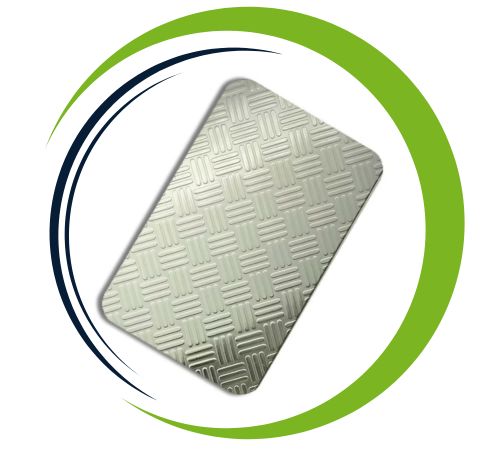

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

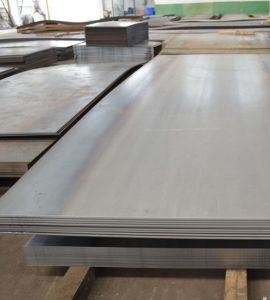

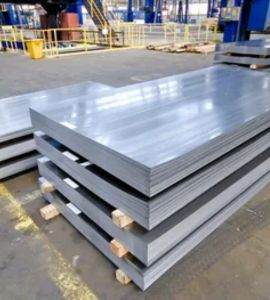

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

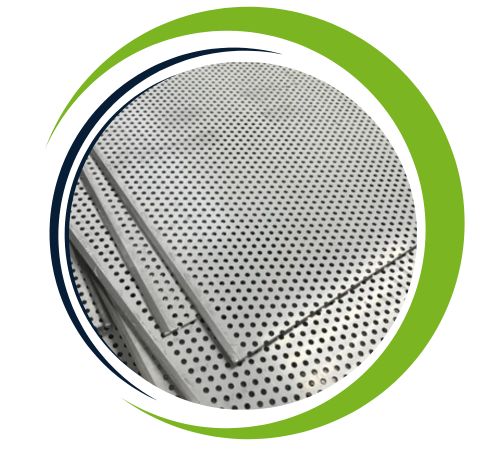

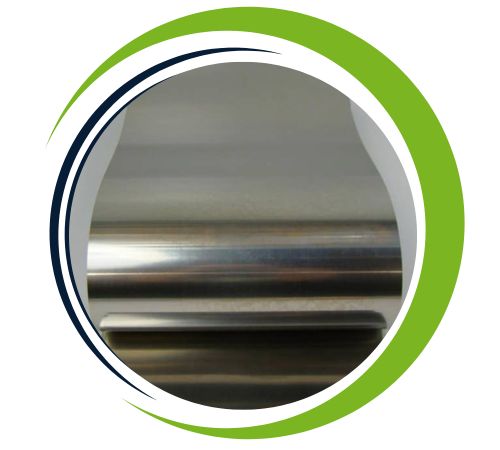

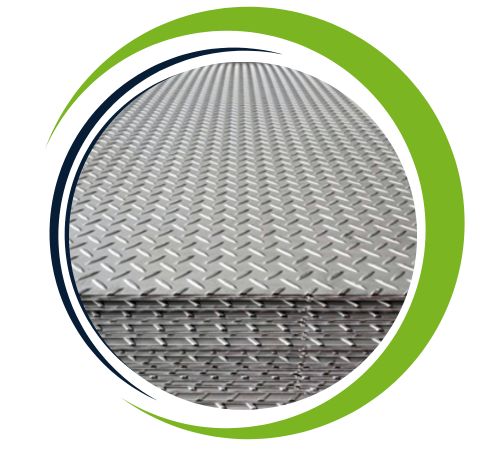

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| Material | Size | Thickness |

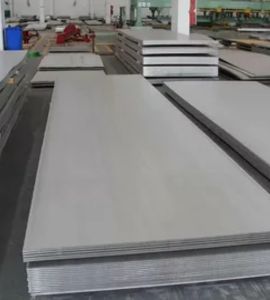

| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
321 Stainless Steel Sheets and Plates are extensively applied in applications involving superior heat resistance and immunity to intergranular corrosion. SS 321 Sheets and Plates are best suited to chemical processing at high temperatures, aerospace exhaust systems, furnace components, and heat exchangers. Their thermal stability up to 870°C allows them to be used in thermal oxidizing environments. SS 321 is also used in expansion joints, refinery equipment, and high-pressure equipment. Moreover, its weldability and formability facilitate application in architectural buildings, food processing applications, and pharmaceutical processing. The strength and durability of the material make it an ideal option for engineering solutions requiring long-term high performance.
