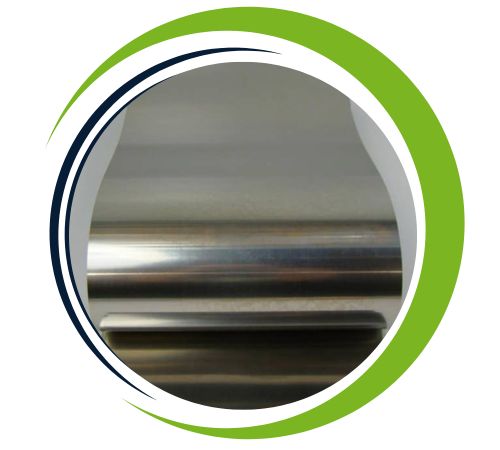

Khush Sheets and Plates is a reliable manufacturer and supplier of Stainless Steel 321H Sheets and Plates in Kolkata, India. With an unwavering dedication to quality and customer satisfaction, the company supplies high-quality products that have international standards. Famous for their perfect corrosion resistance and high-temperature resistance, Stainless Steel 321H Sheets and Plates are manufactured with the latest manufacturing methods and rigorous quality control procedures. Khush Sheets and Plates serve various industries including petrochemical, aerospace, building, and power generation, providing tailored solutions to address unique client requirements on both local and global platforms.
Stainless Steel 321H Sheets and Plates are titanium-stabilized austenitic stainless steel alloy. Compositions include Chromium (17–19%), Nickel (9–12%), Carbon (0.04–0.10%), Titanium (≥5xC), Manganese, Silicon, and Iron balance. Mechanical properties include tensile strength of a minimum of 515 MPa, yield strength of a minimum of 205 MPa, and elongation of 40%. The alloy has good toughness at cryogenic temperatures and high-temperature strength that is higher. Its high resistance to scaling and intergranular corrosion allows it to be used in applications where prolonged exposure is involved at high temperatures.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

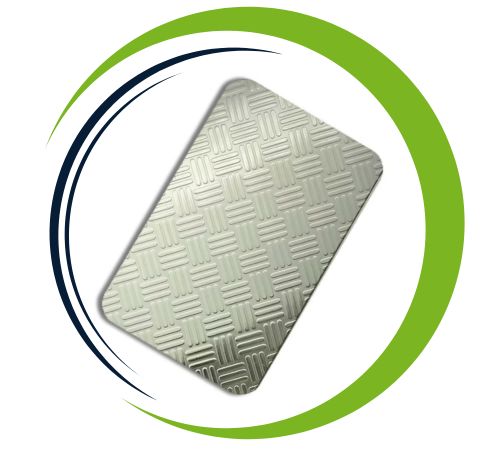

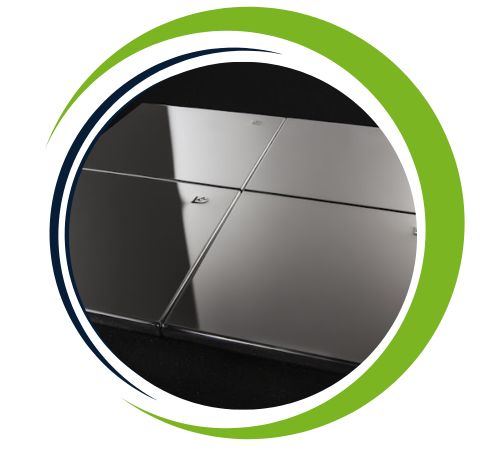

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

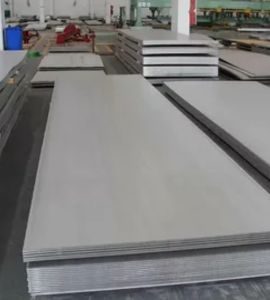

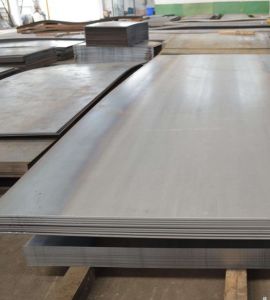

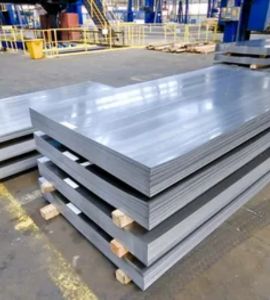

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

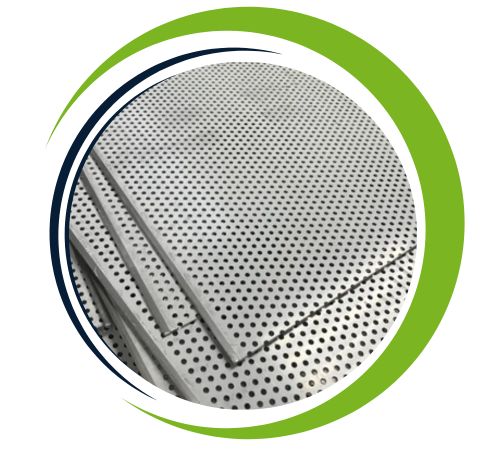

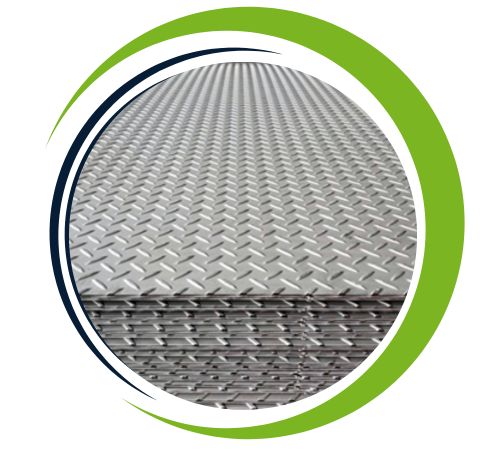

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 321H sheets and plates provide excellent corrosion resistance, especially in high-temperature environments. They are extremely durable, resistant to oxidation, and are curing up to 870°C (1600°F). The intergranular corrosion resistance makes them ideal for welding-related applications. The stability of the composite is enhanced by the addition of titanium, which helps prevent carbide precipitation. Stainless steel 321 is also known for its durability, durability and ability to maintain structural integrity under extreme conditions. These properties make it suitable for industries such as aerospace, chemical and power generation.
Stainless Steel 321H Plates and Sheets find extensive applications where there are high-temperature strength and oxidation as well as corrosion resistance needs. Typical applications are in heat exchangers, boiler fittings, furnace components, and exhaust manifolds in aerospace as well as automotive sectors. They find extensive use in chemical processing plant as well as refinery applications for processing hot organic and inorganic chemicals. The high formability and weldability of the alloy render it ideal for construction and architectural fabrication. Furthermore, Stainless Steel 321H is a suitable material for high-temperature operating pressure vessels and piping systems, promoting safety and longevity.
