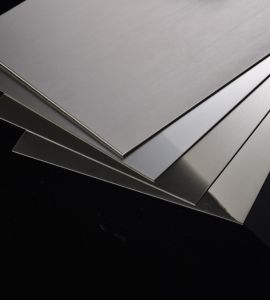

Based in Delhi, India, Khush Sheets and Plates is a well-known producer and supplier of stainless steel 347H sheets and plates. Khush, a company well-known for providing excellent stainless steel solutions, specialises in Grade 347H, a high-carbon variant of 347 intended to provide improved creep resistance and high-temperature strength. The business provides services to a variety of industries, including the aerospace, power generation, petrochemical, and heat treatment sectors. Khush Sheets and Plates guarantees dependable delivery of high-performance stainless steel products throughout India and international markets thanks to its sophisticated processing capabilities, robust supply network, and dedication to quality and customer satisfaction.
In comparison to standard 347, stainless steel 347H sheets and plates have a higher carbon content (up to 0.10%), nickel (9–13%), and chromium (17–20%), as well as niobium (columbium) for stabilisation. Creep resistance and high-temperature strength are improved by this increased carbon content. With a yield strength of about 205 MPa and a tensile strength of about 515 MPa, the alloy has outstanding resistance to oxidation and corrosion. SS 347H is perfect for use in high-heat, high-stress situations because it provides good elongation, toughness, and structural stability at elevated temperatures.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

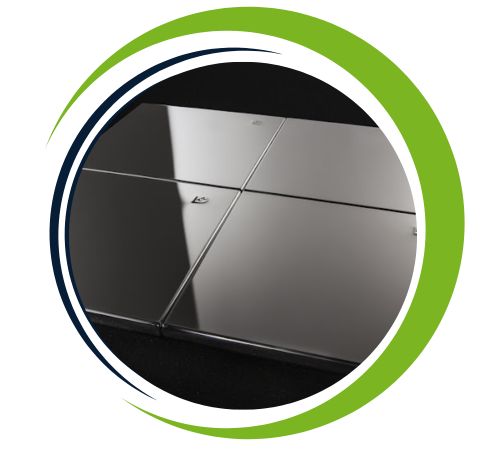

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

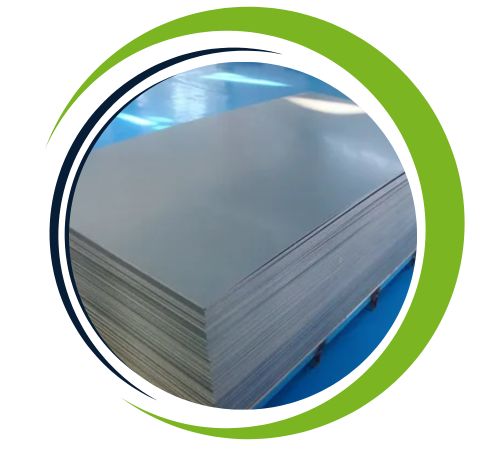

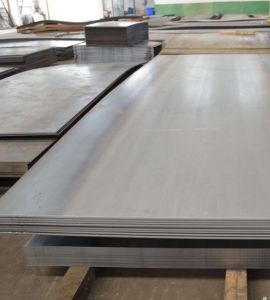

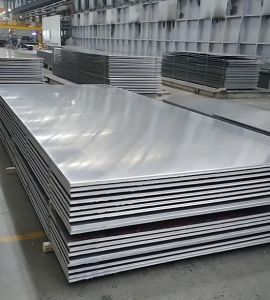

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

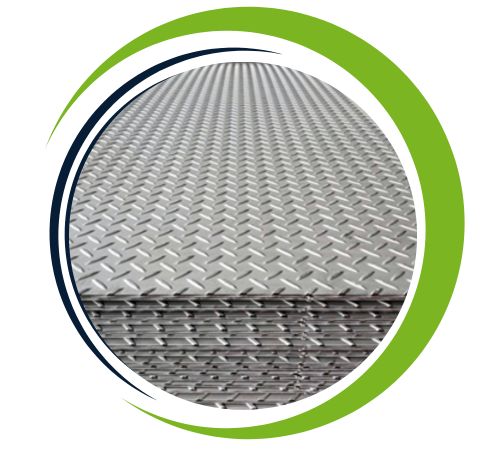

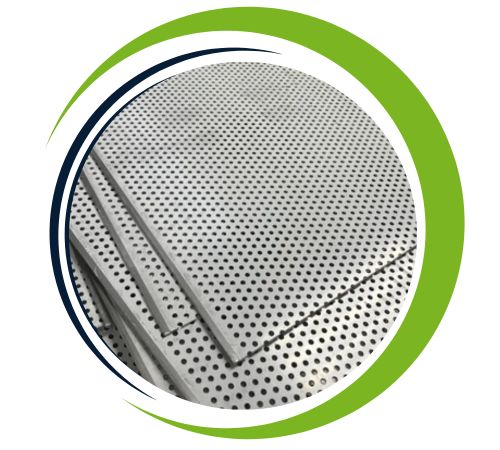

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 347H | 1.4961 | S34709 | SUS 347H | X12CrNiTi18-9 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|

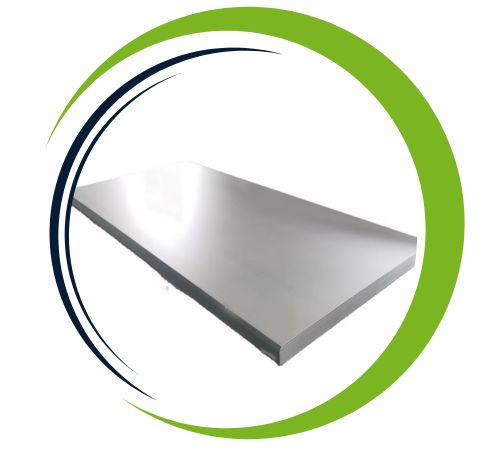

| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 347H sheets and plates offer many benefits, making them ideal for high-temperature environments. High carbon content increases strength, while the presence of columbium improves intergranular corrosion resistance especially in welded structures Its excellent oxidation and corrosion resistance makes it suitable for petrochemical power generation and aerospace applications. Furthermore, 347H exhibits excellent weldability, making it easy to manufacture. The material also maintains structural integrity at high temperatures, ensuring durability and reliability in demanding applications. These features make the 347H the ideal choice for critical, high-performance applications.
Applications needing creep resistance, intergranular corrosion resistance, and high temperature strength frequently use stainless steel 347H sheets and plates. In the thermal processing and power generation sectors, they are frequently found in superheater tubes, boilers, furnace components, and heat exchangers. They are utilised in catalytic converters, piping systems, and reactor vessels in petrochemical facilities. They are used in the automotive and aerospace industries for parts that are subjected to constant heat cycles. In order to ensure long service life and structural reliability under harsh thermal and corrosive conditions, SS 347H is also utilised in equipment used in food processing, pharmaceuticals, and refineries.
