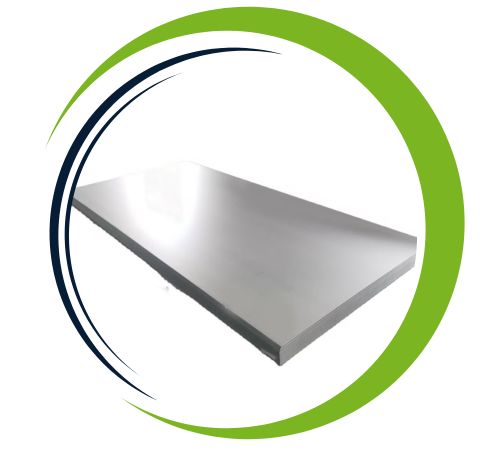

Khush Sheets and Plates, based in Delhi, India, has made a name for itself as a leading manufacturer and supplier of Stainless Steel 409 Sheets and Plates. They provide affordable and durable stainless steel solutions tailored for a variety of industries. With a strong focus on quality, precision, and timely delivery, the company produces SS 409 sheets and plates that boast impressive corrosion resistance, high-temperature strength, and excellent weldability. These features make them perfect for use in automotive, construction, and industrial applications. Customers across India and beyond trust Khush Sheets and Plates for their reliable products, customized solutions, and commitment to global manufacturing standards.
Stainless Steel 409 Sheets and Plates are made up of about 10.5–11.7% chromium, along with a low carbon content and trace elements like titanium, manganese, silicon, and sulfur. This type of ferritic stainless steel offers a tensile strength ranging from 380 to 450 MPa, a yield strength of around 170 to 240 MPa, and an elongation of about 20%. It’s designed to provide moderate corrosion resistance, good formability, and excellent weldability, especially in oxidizing environments. These mechanical properties make SS 409 a great choice for automotive and thermal applications, particularly where cost-effectiveness and heat resistance are essential.
| Standards | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 0.01~200mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

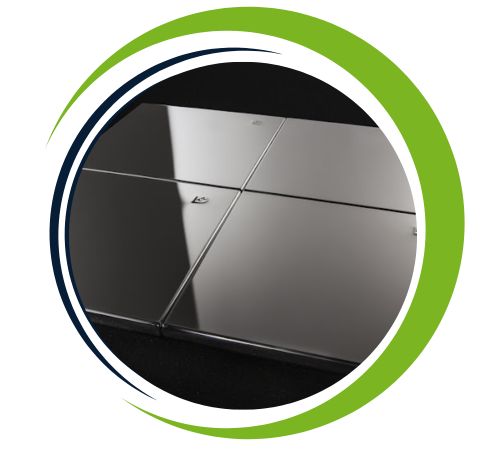

| Surface Finish | the surface and finish of stainless steel 409 sheet: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

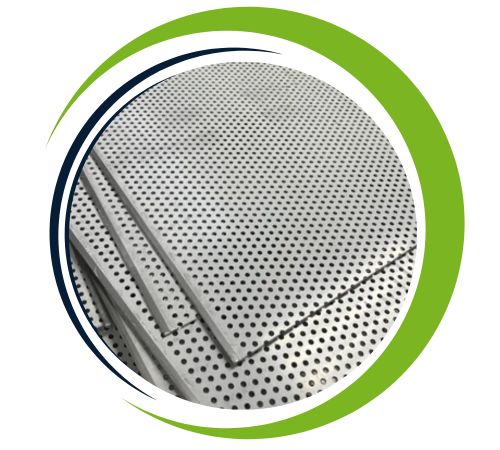

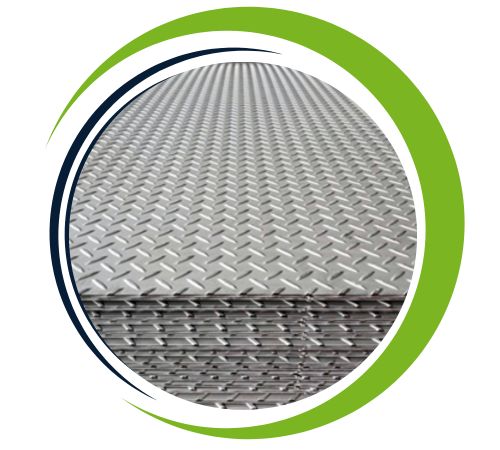

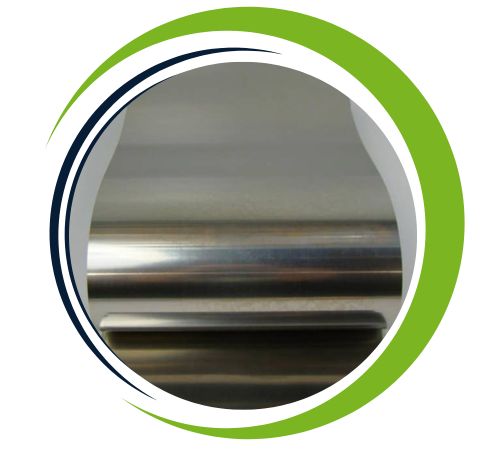

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mg | Ph | Si | Sl | Cr | Ti | Ni |
| 409 min 409 max | – 0.08 | – 1 | – 0.045 | – 1 | – 0.045 | 10.5 11.75 | 6xC – | – 0.5 |
| Density (lb / cu. in.) | Specific Gravity | Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | Modulus of Elasticity Tension |
| 0.278 | 7.86 | 0.11 | 29 |
| Grade | WERKSTOFF NR. | AISI | UNS | AFNOR | BS | GOST | JIS |
| SS 409 | 1.4512 | 409 | S40900 | Z3CT12 | 409 S 19 | SUH 409 | – |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
409 |
7800 |
200 |
11.0 |
11.7 |
12.4 |
25.8 |
27.5 |
460 |
600 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 409 sheets and plates have many advantages, including excellent corrosion and oxidation resistance, and the high chromium content provides durability against scratches and scratches, especially in areas where fragile and hot. The material exhibits excellent weldability and formability, making it easy to manufacture for a variety of applications. Balancing strength and cost, stainless steel 409 is ideal for automotive exhaust systems, heat exchangers and furnace components. In addition, it resists thermal fatigue well and is very durable under extreme conditions.
Stainless Steel 409 Sheets and Plates are popular in applications that require solid corrosion and oxidation resistance while remaining budget-friendly. In the automotive sector, they’re often found in exhaust systems, mufflers, and catalytic converter casings due to their ability to withstand high temperatures. The construction industry uses them for structural supports, roofing, and cladding. In industrial settings, SS 409 is utilized in heat exchangers, furnace components, and ventilation systems. Their ease of fabrication and weldability also make them ideal for agricultural machinery, fuel tanks, and appliance housings, especially in environments where moderate heat and corrosion are expected.
