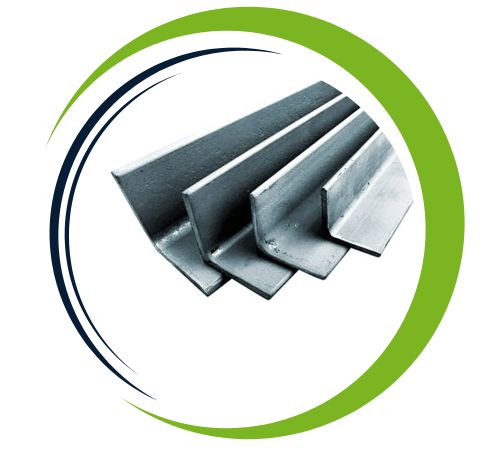

Khush Sheets and Plates is a prominent stainless steel angle manufacturer and supplier with pride in being Kolkata, India-based. We provide an extensive variety of SS Angles to national and international standards that serves construction, fabrication, and engineering industries. Our stainless steel angles are renowned for their high strength, corrosion resistance, and durability. With state-of-the-art manufacturing facilities and dedication to quality, we supply precision-finished products in different grades and sizes. Khush Sheets and Plates is known for dependable service, competitive prices, and prompt delivery within India and export markets.
Stainless Steel Angles are usually stocked in grades 304, 316, and 202. Grade 304 has around 18% chromium and 8% nickel, which provides good corrosion resistance and formability. Grade 316 contains molybdenum (2–3%) for added resistance in chloride conditions. Stainless steel angles usually have tensile strengths ranging from 500–750 MPa and yield strengths of 200–300 MPa based on the grade. They possess good weldability, hardness, and high-temperature properties, which make them appropriate for structural and industrial use where long-lasting and corrosion-resistant parts are needed.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 201 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Temper | Tensile Strength | Yield Strength | Elongation | Rockwell | ||
|---|---|---|---|---|---|---|
| KSi | MPa | KSi | MPa | in 2 inches % | ||
| 1/2 Hard | 150 | -1034 | 110 | -758 | 10 | C-32 |
| 1/4 Hard | 125 | -862 | 75 | -517 | 20 | C-25 |
| 3/4 Hard | 175 | -1207 | 135 | -931 | 7 | C-37 |
| Annealed | 95 | -655 | 45 | -310 | 40 | B-90 max. |
| Full Hard | 185 | -1276 | 140 | -965 | 5 | C-41 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 201 | S20100 | 1.4372 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Width (mm) | Thickness (mm) | Width (Inches) | Thickness (Inches) |
|---|---|---|---|
| 20 x 20 | 3 to 5 | 3/4″ | 1/8 to 1/4 |
| 25 x 25 | 3 to 5 | 1″ | 1/8 to 1/4 |
| 30 x 30 | 3 to 5 | 1.1/8 | 1/8 to 1/4 |
| 32 x 32 | 3 to 6 | 1.1/4 | 1/8 to 1/4 |
| 35 x 35 | 3 to 6 | 1.3/8 | 1/8 to 1/4 |
| 38 x 38 | 3 to 6 | 1.1/2 | 1/8 to 1/4 |
| 40 x 40 | 3 to 6 | 1.5/8 | 1/8 to 1/4 |
| 45 x 45 | 3 to 6 | 1.3/4 | 1/8 to 1/4 |
| 50 x 50 | 3 to 6 | 2″ | 1/8 to 1/4 |
| 60 x 60 | 5 to 6 | 2.3/8 | 3/16 to 1/4 |
| 65 x 65 | 5 to 6 | 2.1/2 | 3/16 to 1/4 |
| 70 x 70 | 5 to 6 | 2.3/4 | 3/16 to 1/4 |
| 75 x 75 | 5 to 6 | 3″ | 3/16 to 1/4 |
Stainless Steel Angles are applied extensively in various industries because of their toughness, resilience, and resistance to corrosion. In the construction industry, they are employed for structural frameworks, supports, and bracing work in structures and bridges. In manufacturing industries, they find application in equipment fabrications, storage systems, and machinery. SS Angles find application in shipbuilding, railway structures, and automotive parts as well. Their resistance to chemicals, wear, and weathering makes them well-suited for architectural ornamentation, outdoor uses, and industrial machinery. They are simple to weld and shape, and they are versatile parts for functional and aesthetic purposes.
