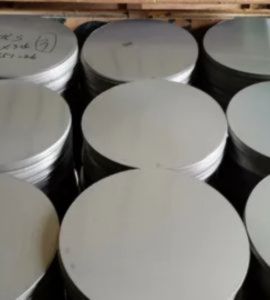

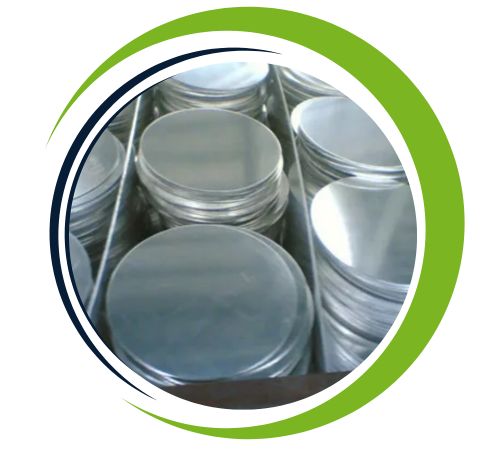

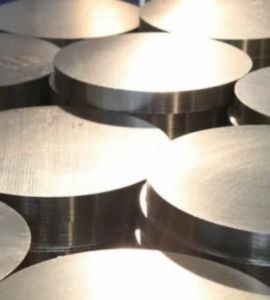

Khush Sheets and Plates stands out as a top manufacturer and supplier of Super Duplex Steel Circles, proudly based in Delhi, India. Our high-quality circles are crafted from top-notch Super Duplex stainless steel, celebrated for its remarkable resistance to corrosion and impressive mechanical strength. Adhering to international standards like ASTM A182 and UNS S32750, these circles guarantee precise dimensions and a flawless surface finish. We cater to essential industries such as oil & gas, chemical processing, marine, and desalination, providing robust and dependable Super Duplex steel circles designed to thrive in harsh, corrosive environments while ensuring long-lasting performance and structural integrity.
Super Duplex Steel Circles feature a well-balanced microstructure, consisting of about 25% chromium, 7% nickel, 3% molybdenum, along with added nitrogen. This distinctive composition offers exceptional resistance to pitting, crevice, and stress corrosion cracking, while also delivering impressive mechanical properties. The typical tensile strength surpasses 800 MPa, with yield strength exceeding 550 MPa and elongation around 25%. The dual-phase ferritic-austenitic structure ensures high toughness, weldability, and durability, making these circles perfect for demanding pressure vessel and structural applications. At Khush Sheets and Plates, we make sure all circles undergo rigorous quality checks for corrosion resistance and dimensional accuracy.
| Specifications | ASTM A240 / ASME SA240 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Thickness | 1 mm To 100 mm |
| Diameter | Upto 2000 mm |
| Circle | 3″ DIA up to 38″ DIA 1500 lbs max |
| Rings | 3″ OD up to 48″ OD Up to 900 lbs max |

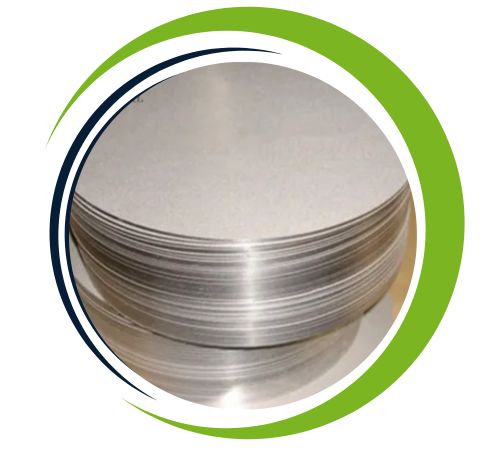

| Cutting | Plazma & Machined Cut |
| Finish | HR, CR, 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

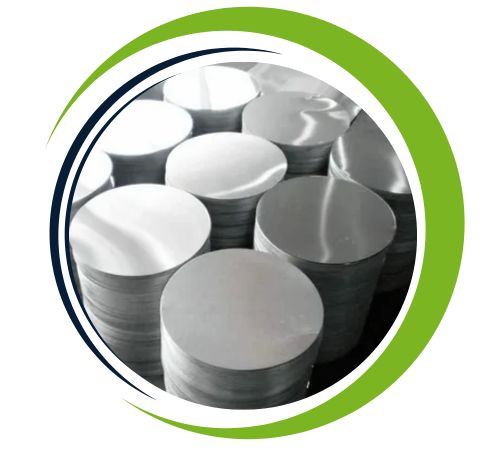

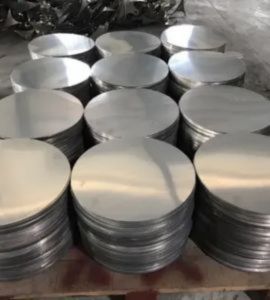

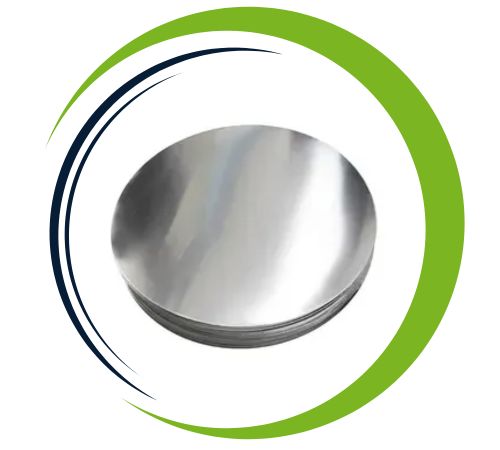

| Form | Cold Rolled Circle, Small Flat Circle, Industrial Circle, Perforated Circle, Forged Steel Circles, Cnc Finish Circle, Polished Unique Circle, Hot Rolled Circle, Fey Laminar Rings, Proof Machined Rings, Cold Rolled Rings, Hot Rolled Rings, McInnes Rolled Rings, Die-Formed Rings, Forging Rings, CNC Machined Rings. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Super Duplex Steel Circles find extensive application in creating flanges, valve components, pressure vessels, pump parts, and heat exchangers, where mechanical strength and corrosion resistance are paramount. Khush Sheets and Plates supplies these circles to industries like offshore platforms, chemical processing plants, marine environments, and desalination facilities. Their exceptional resistance to chloride stress corrosion cracking and pitting corrosion makes them the ideal choice for challenging environments.
Yes, we offer custom sizes for Super Duplex Steel Circle to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@khushsheetsandplates.co.in
| Size | 18 G. | 19 G. | 20 G. | 22 G. | 24 G. | 26 G. |
| .4.5 | .0-107 | 0-085 | 0-080 | 0-062 | 0.049 | 0-040 |
| 5 | 0-120 | 0-095 | 0-090 | 0-070 | 0-055 | 0-045 |
| 5.5 | 0-146 | 0-119 | 0-109 | 0-085 | 0-066 | 0-054 |
| 6 | 0-172 | 0-136 | 0-130 | 0-100 | 0-079 | 0-064 |
| 6.5 | 0-200 | 0-153 | 0-150 | 0-128 | 0-093 | 0-074 |
| 7 | 0-235 | 0-190 | 0-176 | 0-136 | 0-107 | 0-088 |
| 7.5 | 0.270 | 0.212 | 0.201 | 0-157 | 0-123 | 0-100 |
| 8 | 0-307 | 0-240 | 0-230 | 0-180 | 0-140 | 0-115 |
| 8.5 | 0-347 | 0-270 | 0-262 | 0-202 | 0-156 | 0-130 |
| 9 | 0-388 | 0-330 | 0-301 | 0-230 | 0-178 | 0-145 |
| 9.5 | 0-472 | 0-342 | 0-324 | 0-252 | 0-198 | 0-162 |
| 10 | 0-480 | 0-380 | 0-360 | 0-280 | 0-220 | 0-180 |
| 11 | 0-580 | 0-450 | 0-435 | 0-338 | 0-266 | 0-218 |
| 12 | 0-690 | 0-540 | 0-518 | 0-403 | 0-318 | 0-253 |
| 13 | 0-811 | 0-640 | 0-508 | 0-608 | 0-371 | 0-304 |
| 14 | 0-940 | 0-750 | 0-708 | 0-558 | 0-430 | 0-352 |
| 15 | 1-080 | 0-860 | 0-808 | 0-650 | 0-495 | 0-405 |
| 16 | 1-228 | 0-960 | 0-921 | 0-736 | 0-563 | 0-460 |
| 17 | 1-382 | 1-080 | 0-940 | 0-809 | 0-635 | 0-560 |
| 18 | 1-595 | 1-200 | 1-116 | 0-907 | 0-712 | 0-683 |
| 19 | 1-732 | 1-350 | 1-300 | 1-010 | 0-794 | 0-750 |
| 20 | 1-920 | 1-400 | 1-340 | 1-120 | 0-880 | 0-785 |
| RAW MATERIAL | MAX. HARDNESS | TEMPERATURE | ABBREVIATIONSMARKER | |
| BRUCELLOSIS | ROCKWELL | |||
| SOFT IRON | 90 | 56 | -60 540 | D |
| LOW CB STEEL | 120 | 68 | -40 540 | S |
| 304SS | 160 | 83 | -250 700b | 304 |
| 304LSS | 150 | 83 | -250 450 | 304L |
| 316SS | 160 | 83 | -200 700b | 316 |
| 316LSS | 150 | 83 | -200 450 | 316L |
| 321SS | 160 | 83 | -200 700b | 321 |
| 347SS | 160 | 83 | -200 700b | 347 |
| 410SS | 170 | 86 | -40 650 | 410 |
| 5Cr-0.5Mo | 130 | -29 650 | ||
| COPPER | 80 | -100 315 | ||
| ALUMINUM | 35 | -200 425 | ||
| INCONEL 600 | 150 | -100 1095 | ||
| INCOLOY 825 | 160 | -100 1095 | ||
| MONEL 400 | 150 | -100 760 | ||
| TITANIUM | 215 | -200 540 | ||
| NICHEL 200 | 110 | -200 760 | ||
| HASTELLOY C276 | 200 | -100 1095 | ||
Super Duplex Steel Circles are widely used in industries requiring robust and corrosion-resistant materials. In the marine sector, they are employed in shipbuilding, offshore platforms, and subsea equipment due to their resistance to seawater corrosion. In the oil and gas industry, they are utilized for pipelines, heat exchangers, and pressure vessels. Their strength and durability make them suitable for chemical processing equipment and desalination plants. Additionally, they are used in structural components, power generation, and pulp and paper industries, offering reliable performance in demanding and corrosive environments.
