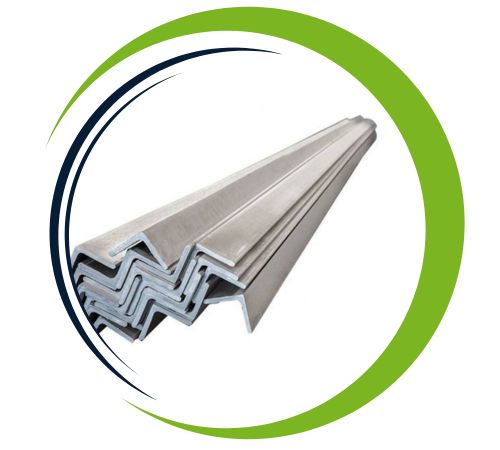

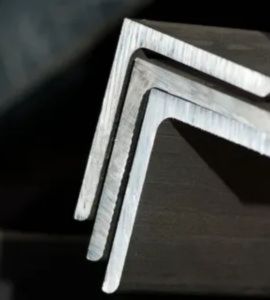

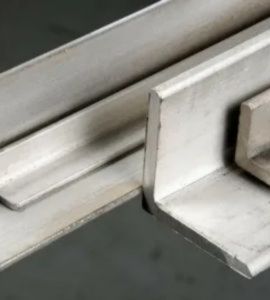

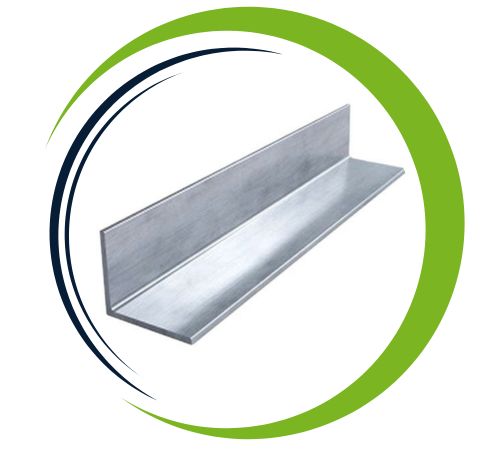

Based in Kolkata, India, Khush Sheets and Plates is a renowned producer and supplier of high-quality titanium angles. Our high-quality titanium structural products are made to endure harsh conditions and demanding performance requirements. Our titanium angles are renowned for their outstanding durability, high strength-to-weight ratio, and remarkable resistance to corrosion. These angles are perfect for the chemical, medical, marine, and aerospace industries because they are made with precision and premium titanium. Khush Sheets and Plates is dedicated to providing dependable, reasonably priced, and specially designed solutions that satisfy each client’s unique needs while adhering to international standards.
Commercially pure titanium, like Grade 2, or titanium alloys, like Grade 5 (Ti-6Al-4V), which are 90% titanium, 6% aluminium, and 4% vanadium, make up the majority of titanium angles. These materials have low density, good corrosion resistance, and tensile strengths ranging from 345 MPa (Grade 2) to 950 MPa (Grade 5). They withstand extreme temperatures and chemical exposures with remarkable durability and fatigue resistance. Titanium Angles are appropriate for both structural and specialised applications in demanding environments due to their exceptional weldability and biocompatibility.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Angle Size : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More

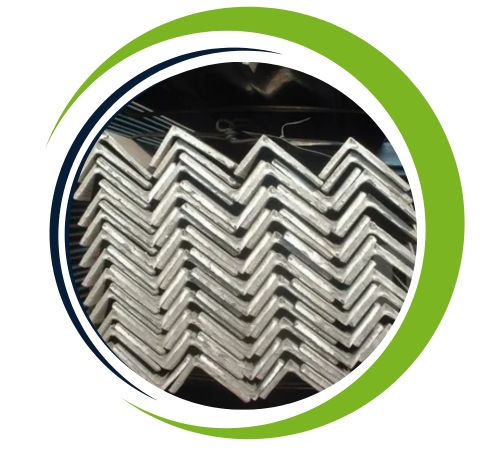

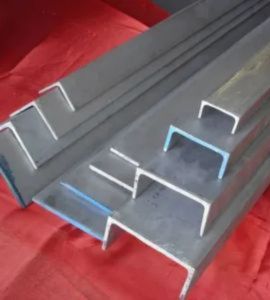

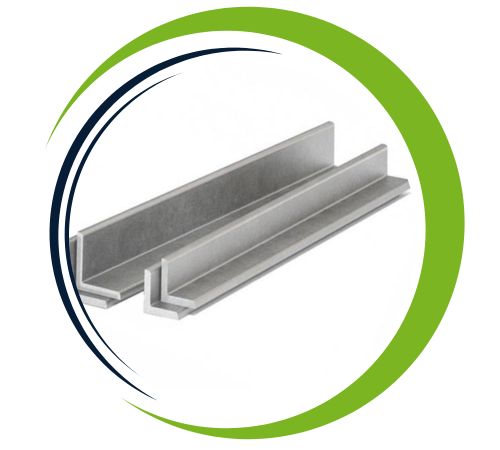

Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle
Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium angles offer numerous advantages, including exceptional strength-to-weight ratio, making them ideal for applications where weight reduction is crucial. They are highly resistant to corrosion, even in harsh environments like marine and chemical industries, ensuring longevity and reduced maintenance costs. Titanium angles also perform well at elevated temperatures without losing strength, making them suitable for aerospace and industrial applications. Additionally, they possess excellent fatigue and impact resistance, ensuring durability under stress. Their non-reactive nature also makes them biocompatible, which is beneficial for medical and surgical applications. Overall, titanium angles provide unmatched reliability and performance.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Angle Bar (kilogram/meter) | Titanium Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Titanium Alloy Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Angle to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium angles are frequently employed in settings that require high performance and are susceptible to corrosion. Because of their strength and light weight, they are used in engine parts, aircraft frames, and brackets in the aerospace sector. They are employed in the maritime industry for seawater systems, offshore platforms, and ship structures. Titanium angles are used in the chemical industry for equipment such as reactors and pipelines that are subjected to corrosive substances. Because titanium angles are biocompatible, they are used in surgical instruments and implant systems in the medical field. They are also used in defence applications, power plants, and automobile parts where long-term durability, low weight, and high strength are essential.
